UFP2T-L

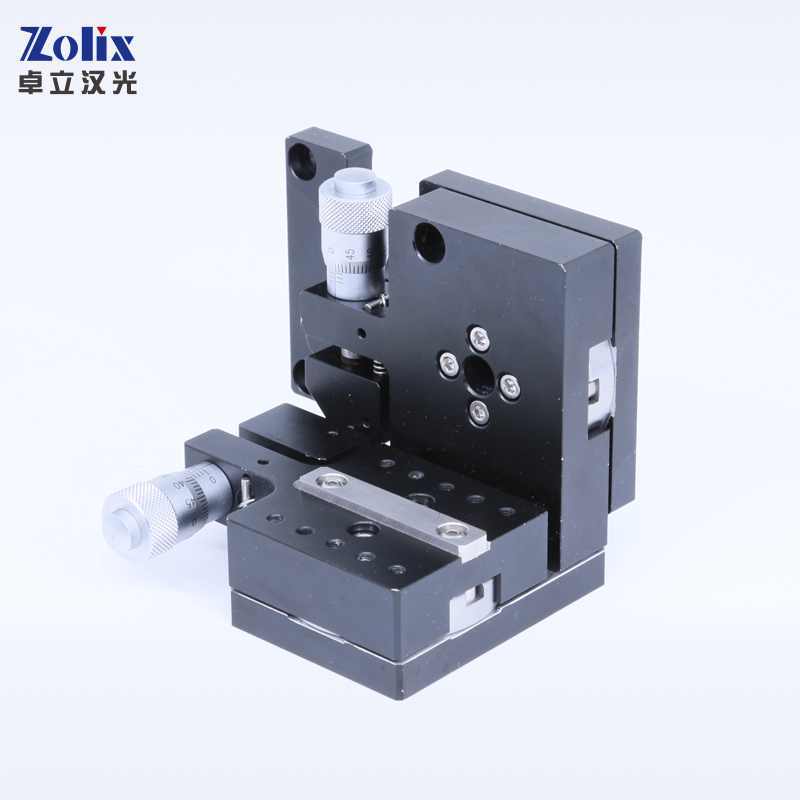

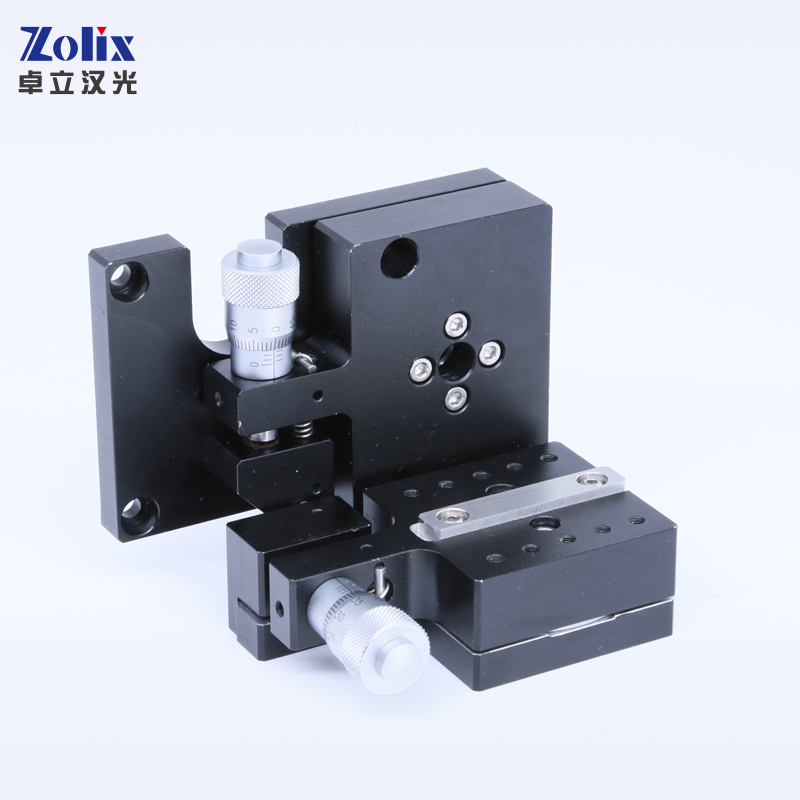

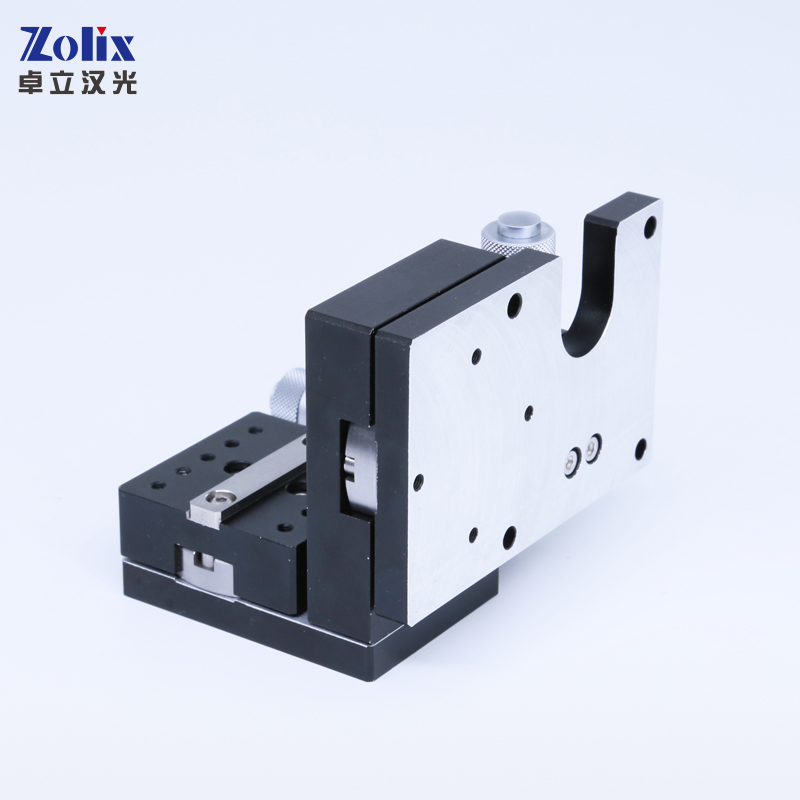

UFP2T-L high-sensitivity two-axis tilt stage
Two-axis angular positioner for aligning fiber end faces, lenses, and compact photonic assemblies. Crossed-roller-ring guidance provides fine, stable pitch and yaw adjustment.
Datasheet (PDF) ↗CAD Model (RAR) ↗Specifications
| Stage surface size(mm) | 45×45 |
|---|---|
| Travel range | θx：±3°；θy：±3° |
| Guide mechanism | Crossed-roller ring |
| Drive type | Micrometer |
| Main body material and surface | Black anodized aluminum alloy |
| Weight(Kg) | 0.64 |
| Sensitivity | θx:≤25.2” ;0y; ≤234 |
| Static parallelism | ≤60µm |
| Motion parallelism | ≤10µm |
| Motion straightness | ≤3µm |
| Horizontal direction(Kg) | 1.5 |
Applications
Set-and-forget alignment
Adjust once during setup and lock, on axes that do not need to move again during the run.
Coarse positioning ahead of fine stages
Establish the optical axis by hand before a piezo or motorised stage takes the fine motion.
Prototyping and teaching rigs
Reconfigure a layout quickly, with no cabling, controllers or electrical noise added to the experiment.
