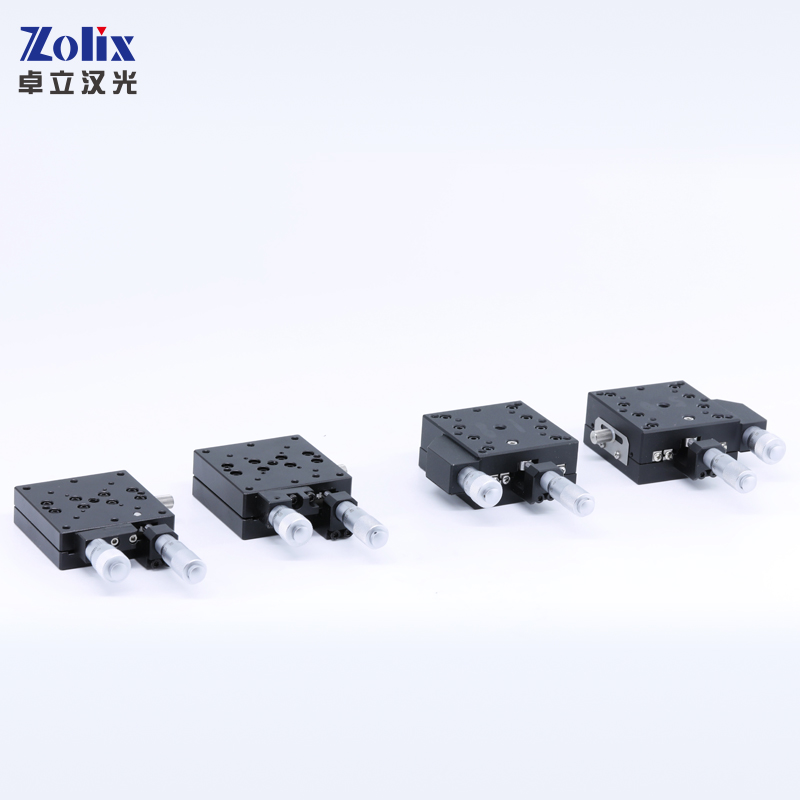

Opto-Mechanics · UFP series High Sensitivity Manual Stages
UFP1C-L

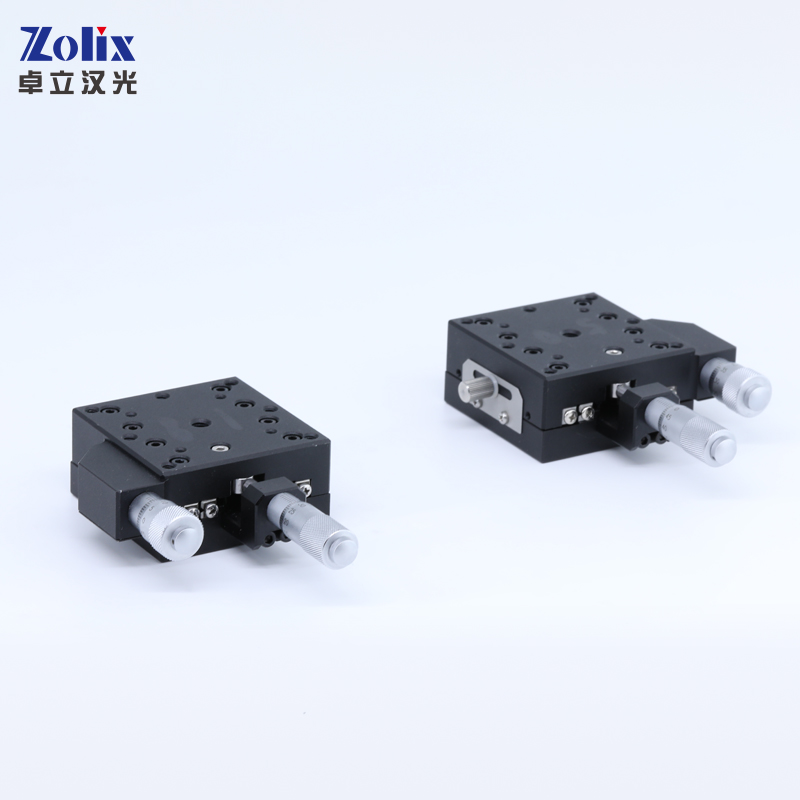

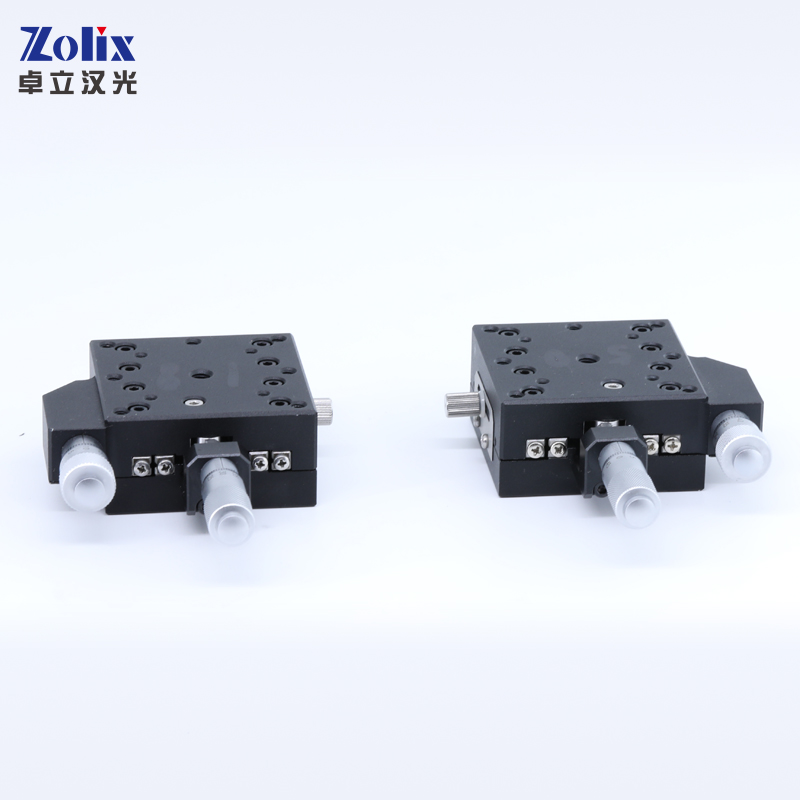

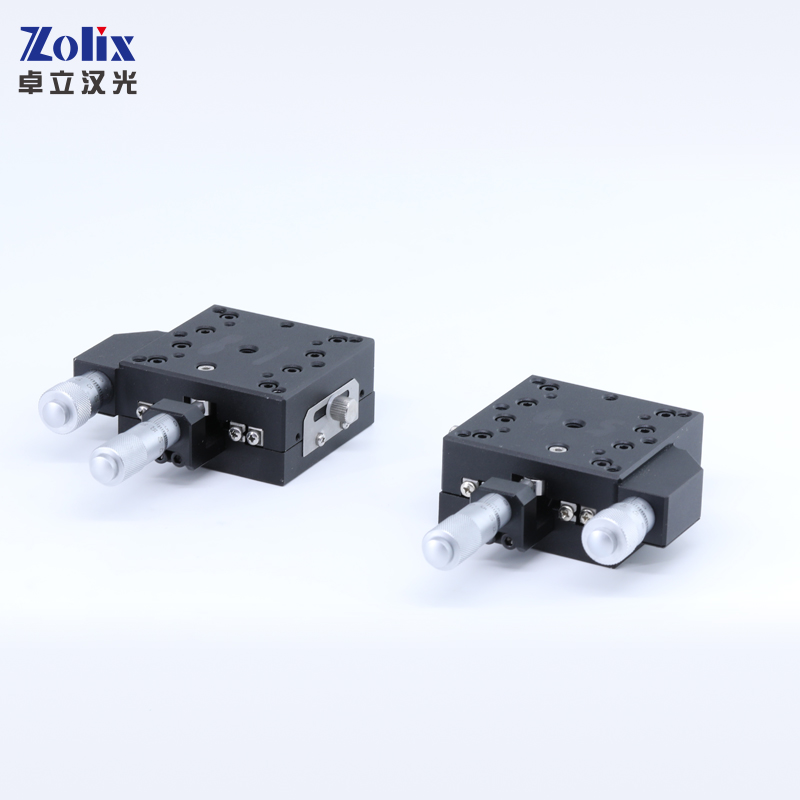

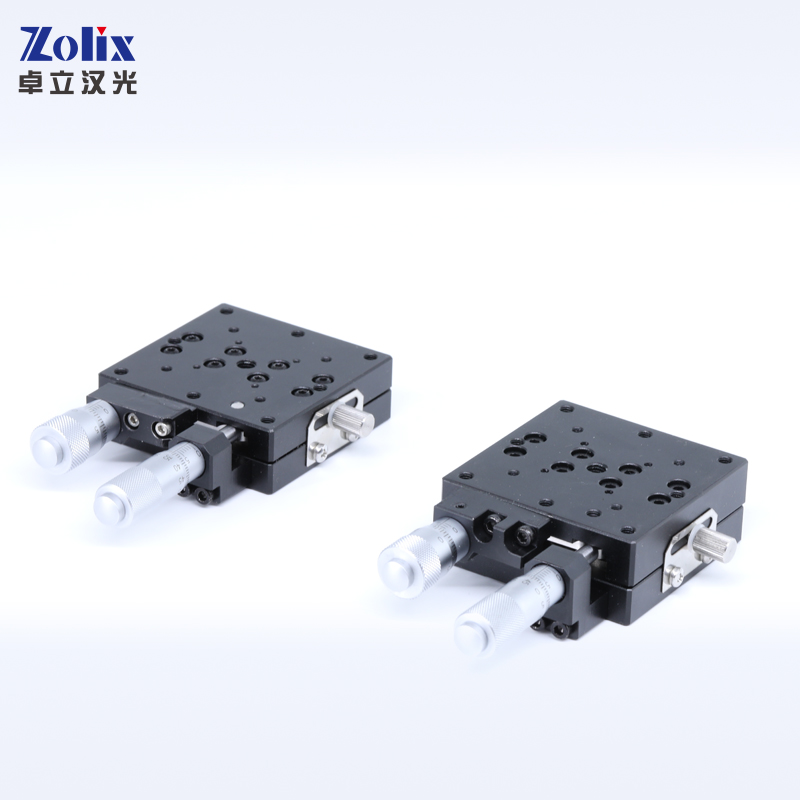

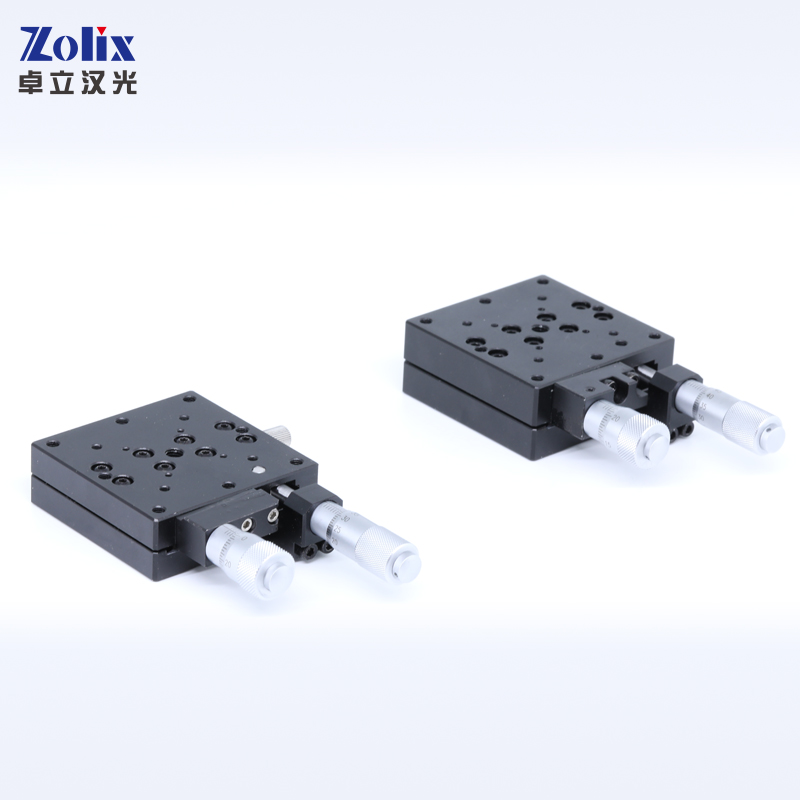

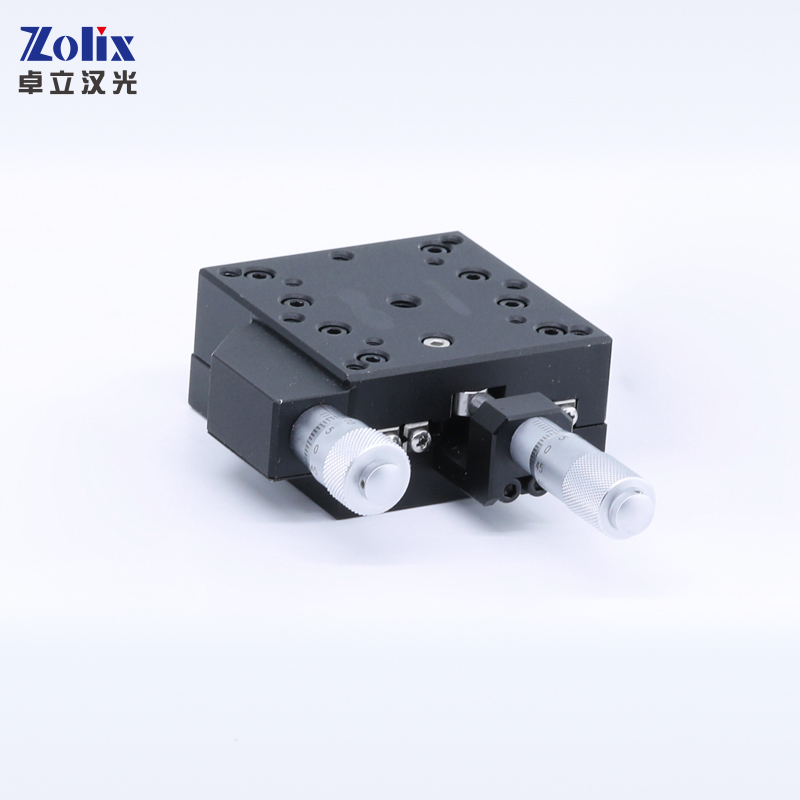

UFP1C-L high-sensitivity manual linear stage
Coarse-and-fine manual translation stage for fiber coupling and component alignment. The fine adjustment provides sub-micrometre sensitivity while the compact 60 mm platform supports stable bench-top assemblies.

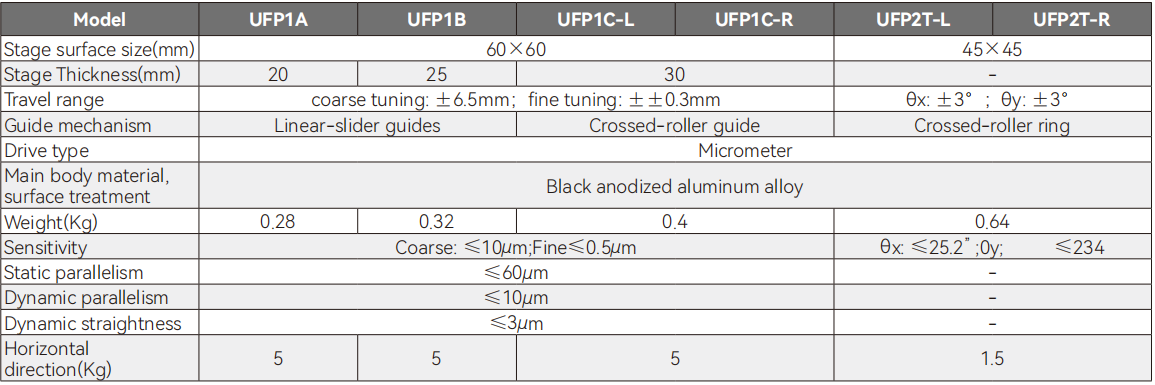

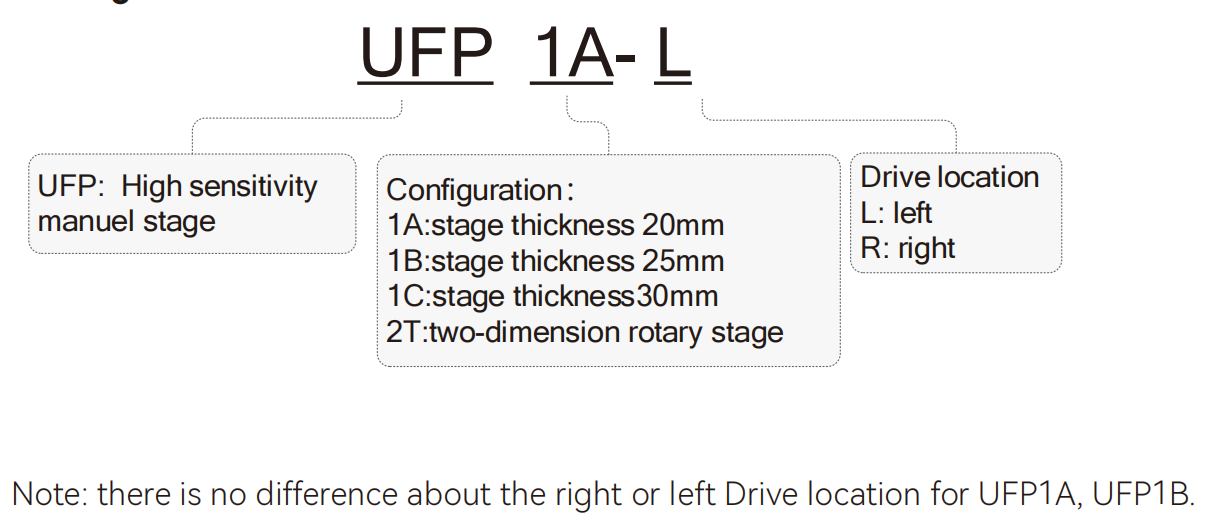

Datasheet (PDF) ↗CAD Model (RAR) ↗Specifications
| Stage surface size(mm) | 60×60 |
|---|---|
| Stage Thickness(mm) | 30 |
| Travel range | coarse tuning：±6.5mm；fine tuning：±±0.3mm |
| Guide mechanism | Crossed-roller guide |
| Drive type | Micrometer |
| Main body material and surface | Black anodized aluminum alloy |
| Weight(Kg) | 0.4 |
| Sensitivity | Coarse：≤10µm;Fine≤0.5µm |
| Static parallelism | ≤60µm |
| Motion parallelism | ≤10µm |
| Motion straightness | ≤3µm |
| Horizontal direction(Kg) | 5 |
Applications
Set-and-forget alignment
Adjust once during setup and lock, on axes that do not need to move again during the run.
Coarse positioning ahead of fine stages
Establish the optical axis by hand before a piezo or motorised stage takes the fine motion.
Prototyping and teaching rigs
Reconfigure a layout quickly, with no cabling, controllers or electrical noise added to the experiment.
