Opto-Mechanics · Motorized XY Series All-In-One Two-Axis Stages

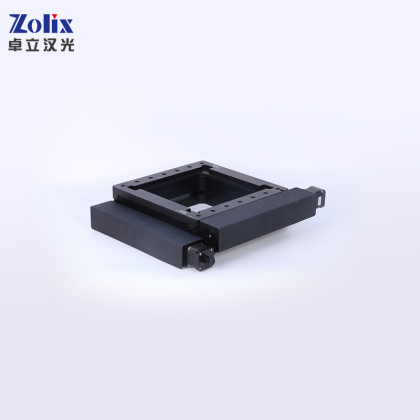

XY120120
XY motorized automatic alignment stage; 120 mm x 120 mm XY travel/platform class; integrated two-axis assembly; translation repeatability around +/-1 um.
Datasheet (PDF) ↗CAD Model (RAR) ↗Specifications
| Travel range ( mm ) | X axis：120 Y axis：120 |
|---|---|
| Stage surface size(mm) | 280×280 |
| Central light-through hole dimension (mm) | 188×188 |
| Light-through dimension at extreme position (mm) | 128×128 |
| Transmission mechanism | precision ball screw，φ16×4 |
| Guides(guiding mechanism) | crossed-roller bearing guides |
| Main body material and surface treatment | Black anodized aluminum alloy |
| Shaft coupling (external diameter- diameter of aperture 1-diameter of aperture 2) (mm) | 20/5/10 |
| Weight(Kg) | 7 |
| Resolution (step/half-step) (µm) | 20/10 |
| 20-fine-subdivision resolution (µm) | 1 |
| Max speed(mm/s)* | 40 |
| Repositioning accuracy (um) | ≤±3 |
| Backlash(um) | ≤5 |
| Static parallelism (mm) | ≤0.1 |
| Motion straightness(um/100mm) | ≤10 |
| Motional parallelism (um) | ≤25 |
| Error on orthogonality (um) | ≤60 |
| Brand and model number of motor | Shinano，SST43D2126 |
| Working current(A) | 1.7 |
| Holding torque of motor (N·m) | 0.456 |
| Brand and model number of stepping driver (optional) | Moons, SR2 |
| Type of plug for stage | DB9(pin) |
| Type of cable for stage | High flexibility cable (Helukabel, Germany) |
| Length of connection cable(m) | 0.2 |
| Position-limit sensors (built-in), for each axis | 2*PM-L25 (SUNX, Japan) |
| Voltage of power supply for sensors (V) | DC5~24V±10% |
| Control output | NPN open collector output； DC5~24v 50mA or less |
| Status of output ports | Output ON when sensor is blocked |
| Vertical direction(Kg) | 20 |
Applications
Automated scanning and mapping
Step-and-acquire across areas far wider than a single field of view.
Repeatable production indexing
Move parts between fixed stations with closed-loop encoders holding position over long shifts.
Programmable multi-axis motion
Coordinate several axes from software for processing, inspection and test sequences.
