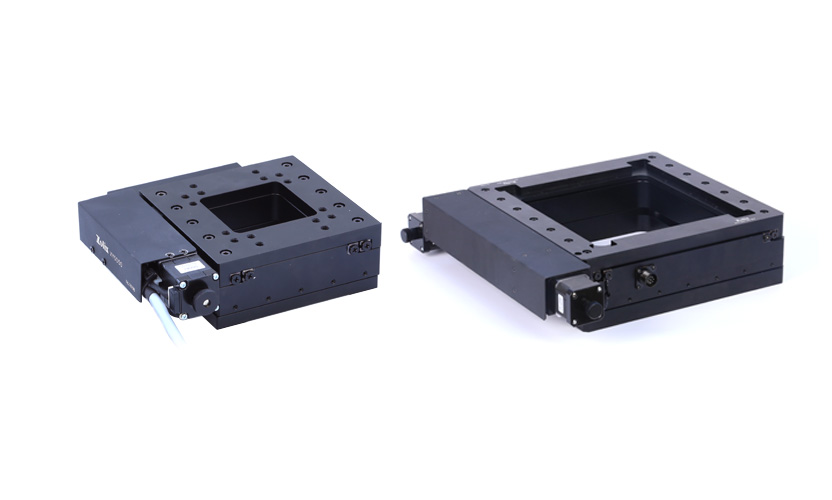

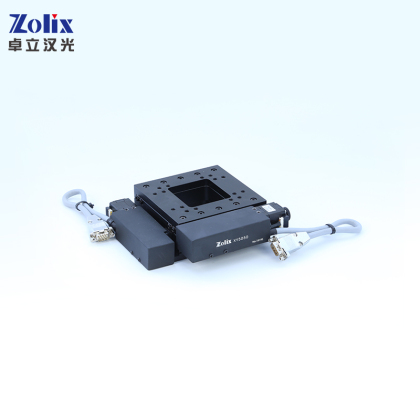

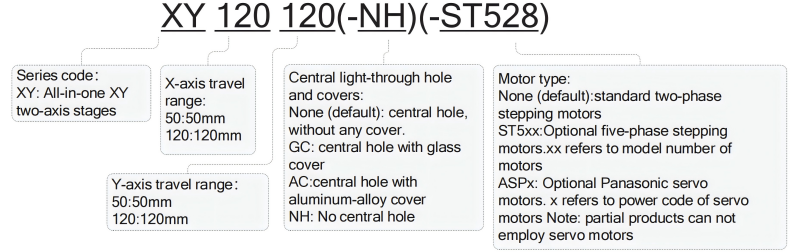

XY5050
XY motorized automatic alignment stage; 50 mm x 50 mm XY travel/platform class; integrated two-axis assembly; translation repeatability around +/-1 um.
Datasheet (PDF) ↗CAD Model (RAR) ↗Specifications
| Travel range ( mm ) | X axis：50 Y axis：50 |
|---|---|
| Stage surface size(mm) | 125×125 |
| Central light-through hole dimension (mm) | 60×64 |
| Light-through dimension at extreme position (mm) | 35×47 |
| Transmission mechanism | precision ball screw，φ6×1 |
| Guides(guiding mechanism) | crossed-roller bearing guides |
| Main body material and surface treatment | Black anodized aluminum alloy |
| Shaft coupling (external diameter- diameter of aperture 1-diameter of aperture 2) (mm) | 13/3/5 |
| Weight(Kg) | 2.2 |
| Resolution (step/half-step) (µm) | 5/2.5 |
| 20-fine-subdivision resolution (µm) | 0.25 |
| Max speed(mm/s)* | 10 |
| Repositioning accuracy (um) | ≤±1.5 |
| Backlash(um) | ≤3 |
| Static parallelism (mm) | ≤0.1 |
| Motion straightness(um/100mm) | ≤10 |
| Motional parallelism (um) | ≤25 |
| Error on orthogonality (um) | ≤15 |
| Brand and model number of motor | Shinano，STP-28D1003-08 |
| Working current(A) | 1.3 |
| Holding torque of motor (N·m) | 0.0785 |
| Brand and model number of stepping driver (optional) | Moons, SR2 |
| Type of plug for stage | DB9(pin) |
| Type of cable for stage | High flexibility cable (Helukabel, Germany) |
| Length of connection cable(m) | 0.2 |
| Position-limit sensors (built-in), for each axis | 2*GP1S09xHCPI(Japan SHARP) |
| Origin-point sensors (built-in), for each axis | 1*GP1S09xHCPI(Japan SHARP) |
| Voltage of power supply for sensors (V) | DC5~24V±10% |
| Control output | NPN open controller output. DC5～24V 8mA or less Residual voltage 0.3V or less (when load current is 2mA) |
| Status of output ports | Output ON when sensor is blocked |
| Vertical direction(Kg) | 4 |
| Travel range ( mm ) | X axis：50 Y axis：50 |
| Stage surface size(mm) | 125×125 |
| Central light-through hole dimension (mm) | 60×64 |
| Light-through dimension at extreme position (mm) | 35×47 |
| Transmission mechanism | precision ball screw，φ6×1 |
| Guides(guiding mechanism) | crossed-roller bearing guides |
| Main body material and surface treatment | Black anodized aluminum alloy |
| Shaft coupling (external diameter- diameter of aperture 1-diameter of aperture 2) (mm) | 13/3/5 |
| Weight(Kg) | 2.2 |
| Resolution (step/half-step) (µm) | 5/2.5 |
| 20-fine-subdivision resolution (µm) | 0.25 |
| Max speed(mm/s)* | 10 |
| Repositioning accuracy (um) | ≤±1.5 |
| Backlash(um) | ≤3 |
| Static parallelism (mm) | ≤0.1 |
| Motion straightness(um/100mm) | ≤10 |
| Motional parallelism (um) | ≤25 |
| Error on orthogonality (um) | ≤15 |
| Brand and model number of motor | Shinano，STP-28D1003-08 |
| Working current(A) | 1.3 |
| Holding torque of motor (N·m) | 0.0785 |
| Brand and model number of stepping driver (optional) | Moons, SR2 |
| Type of plug for stage | DB9(pin) |
| Type of cable for stage | High flexibility cable (Helukabel, Germany) |
| Length of connection cable(m) | 0.2 |
| Position-limit sensors (built-in), for each axis | 2*GP1S09xHCPI(Japan SHARP) |
| Origin-point sensors (built-in), for each axis | 1*GP1S09xHCPI(Japan SHARP) |
| Voltage of power supply for sensors (V) | DC5~24V±10% |
| Control output | NPN open controller output. DC5～24V 8mA or less Residual voltage 0.3V or less (when load current is 2mA) |
| Status of output ports | Output ON when sensor is blocked |
| Vertical direction(Kg) | 4 |
