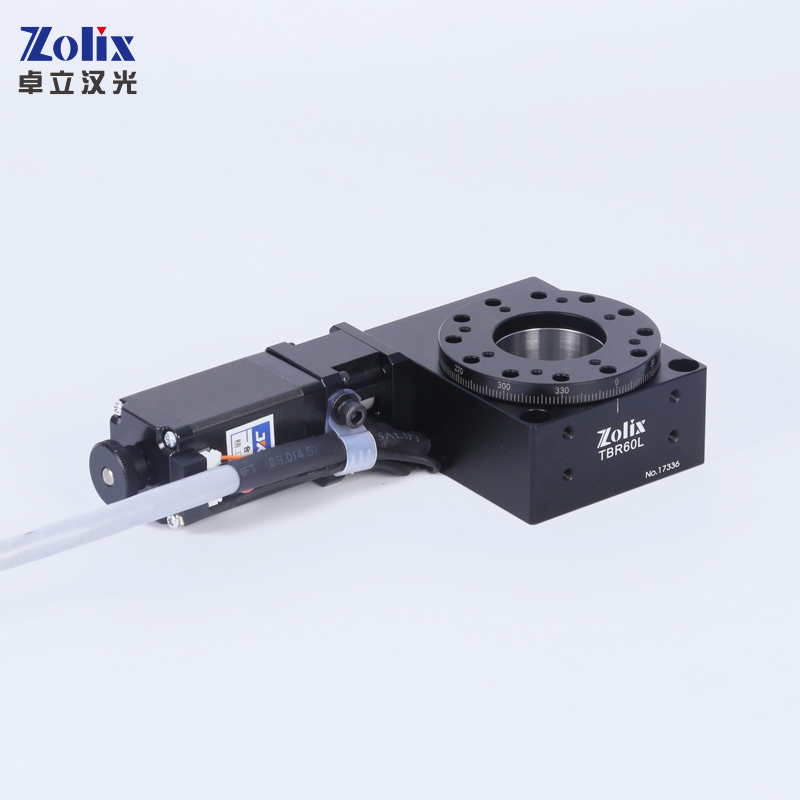

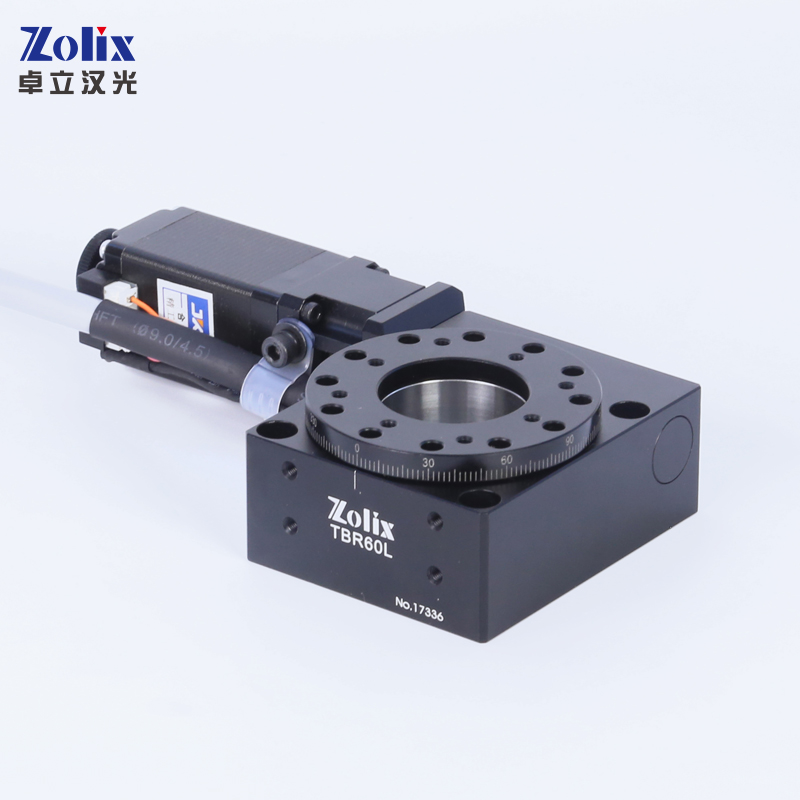

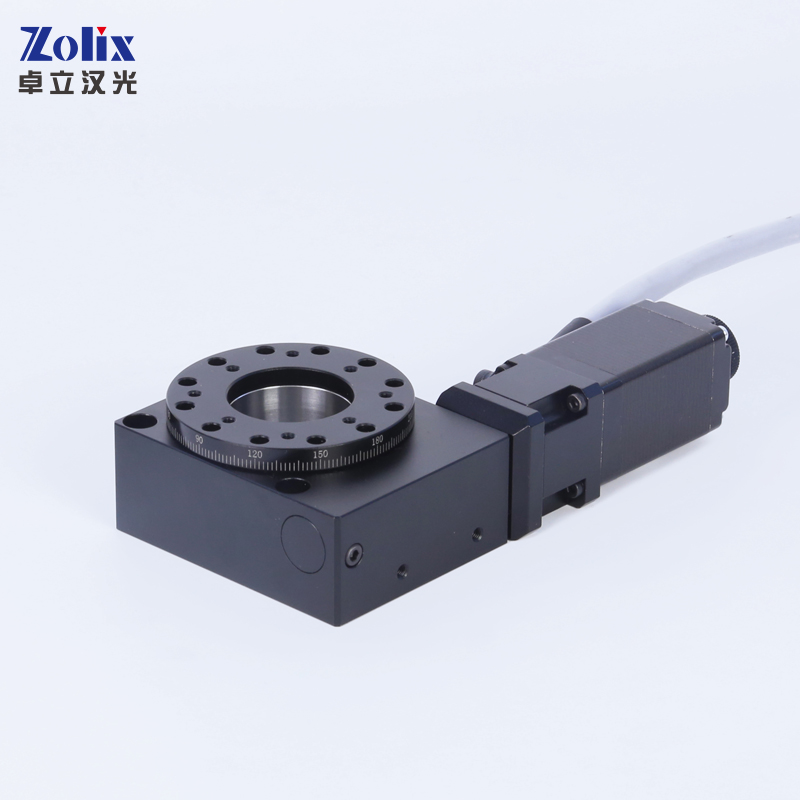

TBR60L
TBR standard motorized rotation stage; 60 mm diameter class; large-aperture version; 360 deg worm-gear rotation; repeatability around +/-30 arcsec.
Datasheet (PDF) ↗CAD Model (RAR) ↗Specifications
| Angle range (°) | 360 |
|---|---|
| Table diameter(mm) | φ59 |
| Transmission mechanism | worm gear and worm |
| Worm Gear Ratio | 180:1 |
| Worm gear material | Durable tin bronze worm gear |
| Worm material and process technology | Steel, high frequency quenched |
| Guide mechanism | Angular contact ball bearing |
| Main body material and surface | Black anodized aluminum alloy |
| Weight(Kg) | 0.7 |
| Shaft coupling (OD - OD1- OD2)(mm) | 43560 |
| Step/half step resolution (°) | 0.01/0.005 |
| Max speed(/s)* | 20 |
| Repositioning accuracy (°） | ≤±0.005 |
| Backward rotation clearance(°) | ≤0.01 |
| Static parallelism (mm) | ≤0.08 |
| Backlash(µm) | ≤8 |
| End jump(Axial runout)(µm) | ≤40 |
| Radial runout(um) | ≤25 |
| Motor brand(specification) | Jigocheng(28 stepping motor) |
| Model of motor | 28BYG003-C,two- phase |
| Step angle(°) | 1.8 |
| Insulation resistance | Over 100MΩ /Min |
| Insulation strength | "500V AC |
| 1 minute. None abnormal" | "500V AC 1 minute. None abnormal" |
| Insulation level | ULB Level |
| Weight(Kg) | 0.14 |
| Voltage(V) | 3.3 |
| Current | 1.0A/phase |
| Resistance | 3.3±10%Ω/phase |
| Electrical inductance | 2.5±20%mH/phase |
| Holding torque | 0.1N.m |
| Braking torque | 0.005N.m (reference value) |
| Rotor inertia | 11g.cm² |
| Operation temperature | -10~+50℃ |
| Motor operating temperature range | 80℃ Max |
| Driver brand and model(optional) | Moons, SR2 |
| Type of plug for stage | DB9(pin) |
| Type of cable for stage | High flexibility cable |
| Length of connection cable(m) | 0.2 |
| Position-limit sensors (built-in) | None |
| Origin-point sensors (built-in) | 1个GP1S09xHCPI(Japan SHARP) |
| Sensor voltage | DC5-24V±10% |
| Current consumption(mA) | <60 (total) |
| Control output | NPN open controller output DC5～24V 50mA or less |
| Status of output ports | NPN open controller output DC5～24V 50mA or less |
| Horizontal direction(Kg) | 5 |
| Vertical direction(kg) | 2 |
| Inverted direction(Kg) | 5 |
Applications
Automated scanning and mapping
Step-and-acquire across areas far wider than a single field of view.
Repeatable production indexing
Move parts between fixed stations with closed-loop encoders holding position over long shifts.
Programmable multi-axis motion
Coordinate several axes from software for processing, inspection and test sequences.
