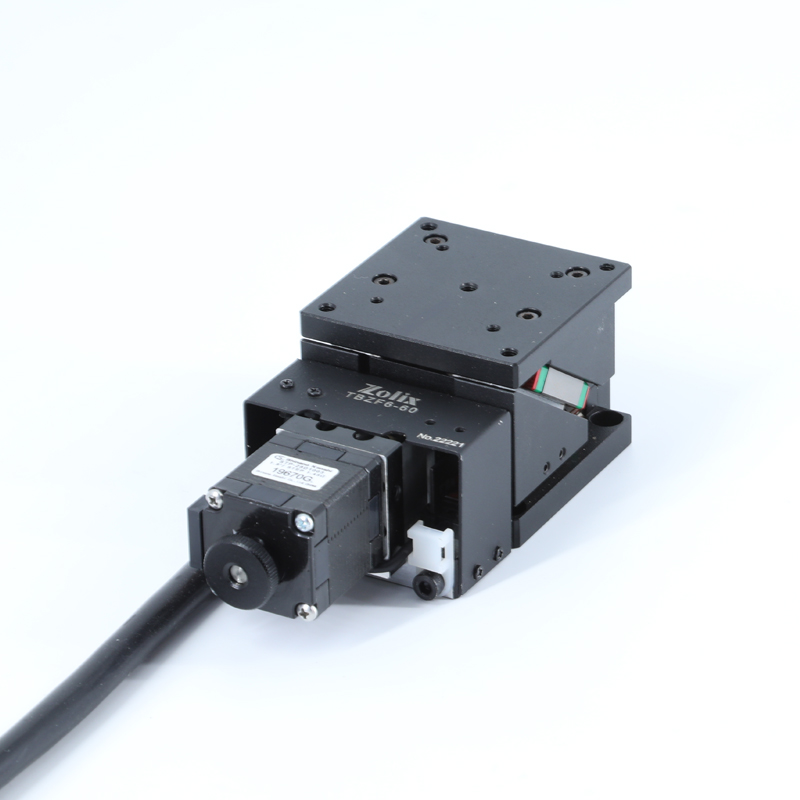

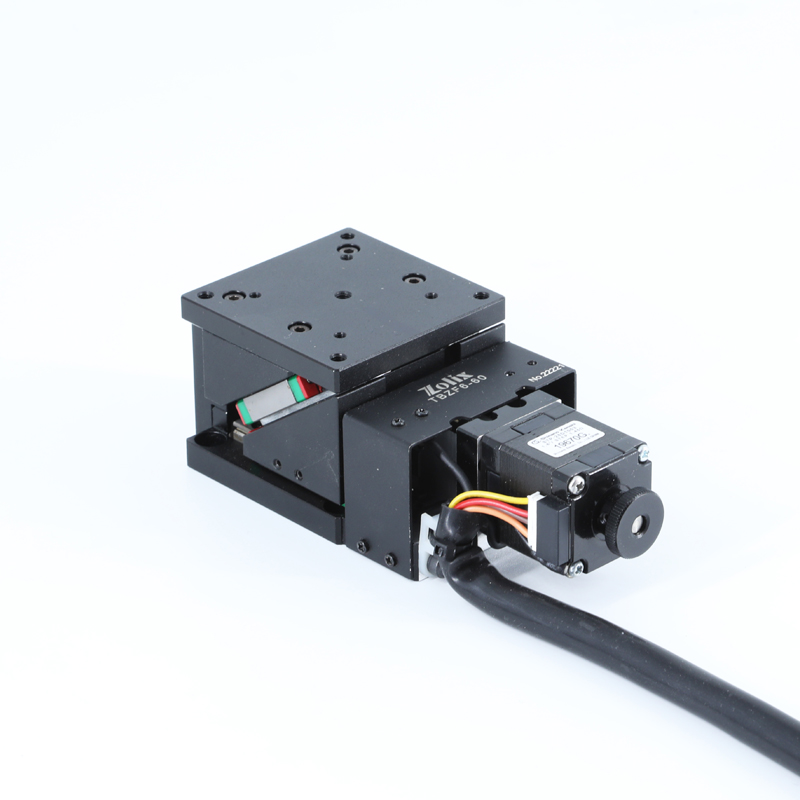

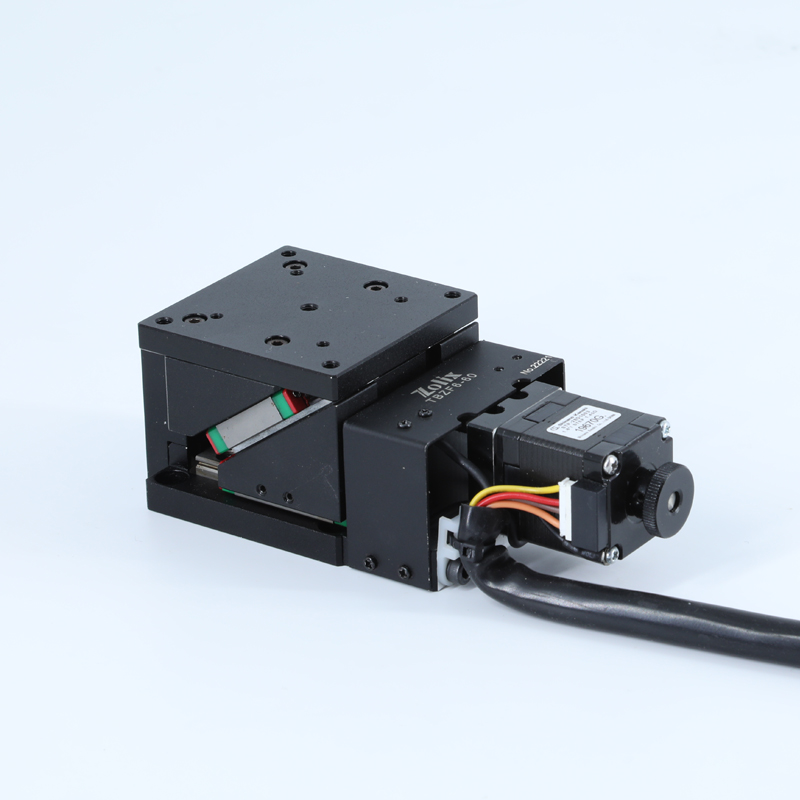

TBZF6-60
TBZF heavy-duty motorized vertical stage; 6 mm Z travel; 60 mm platform class; worm-gear/ball-screw self-locking drive; up to 30 kg load class; 0.5 um resolution.
Datasheet (PDF) ↗CAD Model (RAR) ↗Specifications
| Travel range(mm) | 6 |
|---|---|
| Stage surface size(mm) | 60×60 |
| Transmission mechanism | Ball screwsφ6×1 |
| Guide mechanism | linear-slider guides |
| Main body material and surface | Black anodized aluminum alloy |
| Weight(Kg) | 0.8 |
| Resolution (step/half-step) (µm) | 3.5/1.75 |
| 20-fine-subdivision resolution (µm) | 0.175 |
| Max speed(mm/s)* | 7 |
| Repositioning accuracy (µm) | ≤±2.5 |
| Backlash (µm) | ≤5 |
| Static parallelism (mm) | ≤0.1 |
| Motor and its stepping angle (°) | Two-phase 28 stepping，1.8 |
| Brand and model number of motor | Shinano，STP-28D1003-08 |
| Working current(A) | 1.3 |
| Holding torque of motor (N·m) | 0.0785 |
| Brand and model number of stepping driver (optional) | Moons, SR2 |
| Type of plug for stage | DB9(pin) |
| Type of plug for stage | Ordinary cable |
| Length of connection cable(m) | 0.2 |
| Position-limit sensors (built- in) | 2*PM-L25 (SUNX, Japan) |
| Origin-point sensors (built- in) | 1*PM-L25 (SUNX, Japan) |
| Voltage of power supply for sensors (V) | DC5~24V±10% |
| Control output | NPN open collector output DC5～24V 8mA or less Residual voltage 0.3V or less (when load current is 2mA) |
| Status of output ports | Position-limit sensor： Output ON when sensor is blocked(conduction); Zero position sensor：Output OFF when sensor is blocked(Non conduction); |
| Horizontal direction(Kg) | 4 |
Applications
Automated scanning and mapping
Step-and-acquire across areas far wider than a single field of view.
Repeatable production indexing
Move parts between fixed stations with closed-loop encoders holding position over long shifts.
Programmable multi-axis motion
Coordinate several axes from software for processing, inspection and test sequences.
