Opto-Mechanics · TBZF Series Motorized Vertical-Motion Stages

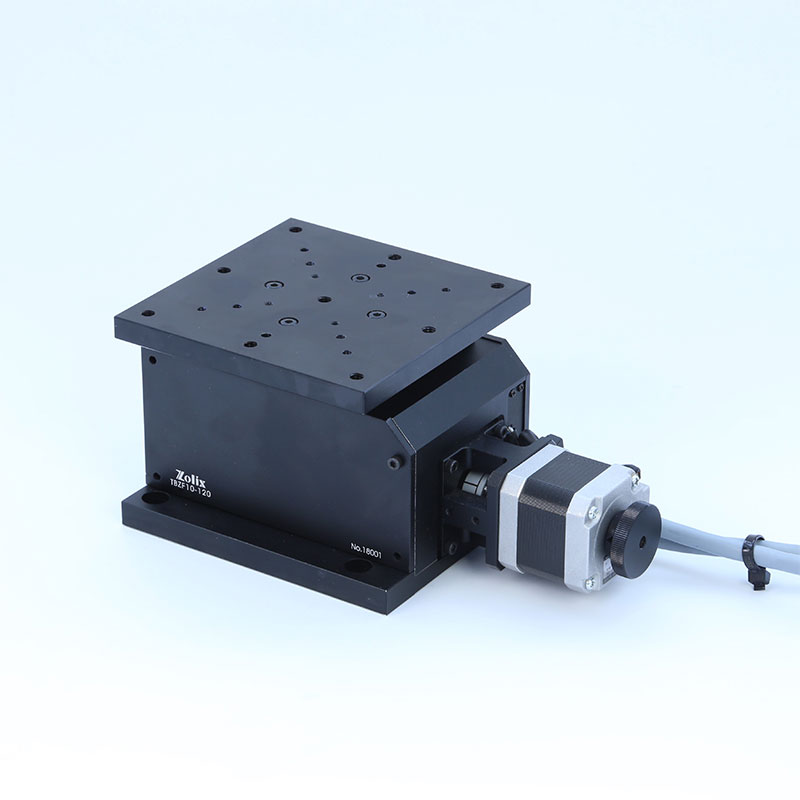

TBZF10-120
TBZF heavy-duty motorized vertical stage; 10 mm Z travel; 120 mm platform class; worm-gear/ball-screw self-locking drive; up to 30 kg load class; 0.5 um resolution.
Datasheet (PDF) ↗CAD Model (RAR) ↗Specifications
| Travel range(mm) | 10 |
|---|---|
| Stage surface size(mm) | 120×120 |
| Transmission mechanism | Grinding screws，φ8×1 |
| Guide mechanism | linear-slider guides |
| Main body material and surface | Black anodized aluminum alloy |
| Weight(Kg) | 2.5 |
| Resolution (step/half-step) (µm) | 1.82/0.91 |
| 20-fine-subdivision resolution (µm) | 0.091 |
| Max speed(mm/s)* | 3.64 |
| Repositioning accuracy (µm) | ≤±2.5 |
| Backlash (µm) | ≤5 |
| Static parallelism (mm) | ≤0.1 |
| Motor and its stepping angle (°) | Two-phase 42 stepping，1.8 |
| Brand and model number of motor | Shinano，SST43D2126-10 |
| Working current(A) | 1.7 |
| Holding torque of motor (N·m) | 0.456 |
| Brand and model number of stepping driver (optional) | Moons, SR2 |
| Type of plug for stage | DB9(pin) |
| Type of plug for stage | High flexibility cable (Helukabel, Germany) |
| Length of connection cable(m) | 0.2 |
| Position-limit sensors (built- in) | 2*GP1S09xHCPI(Janpan SHARP) |
| Origin-point sensors (built- in) | 1*GP1S09xHCPI(Japan SHARP) |
| Voltage of power supply for sensors (V) | DC5～24V±10% |
| Control output | NPN open collector output DC5～24V 8mA or less Residual voltage 0.3V or less (when load current is 2mA) |
| Status of output ports | Output ON when sensor is blocked |
| Horizontal direction(Kg) | 10 |
Applications
Automated scanning and mapping
Step-and-acquire across areas far wider than a single field of view.
Repeatable production indexing
Move parts between fixed stations with closed-loop encoders holding position over long shifts.
Programmable multi-axis motion
Coordinate several axes from software for processing, inspection and test sequences.
Related products

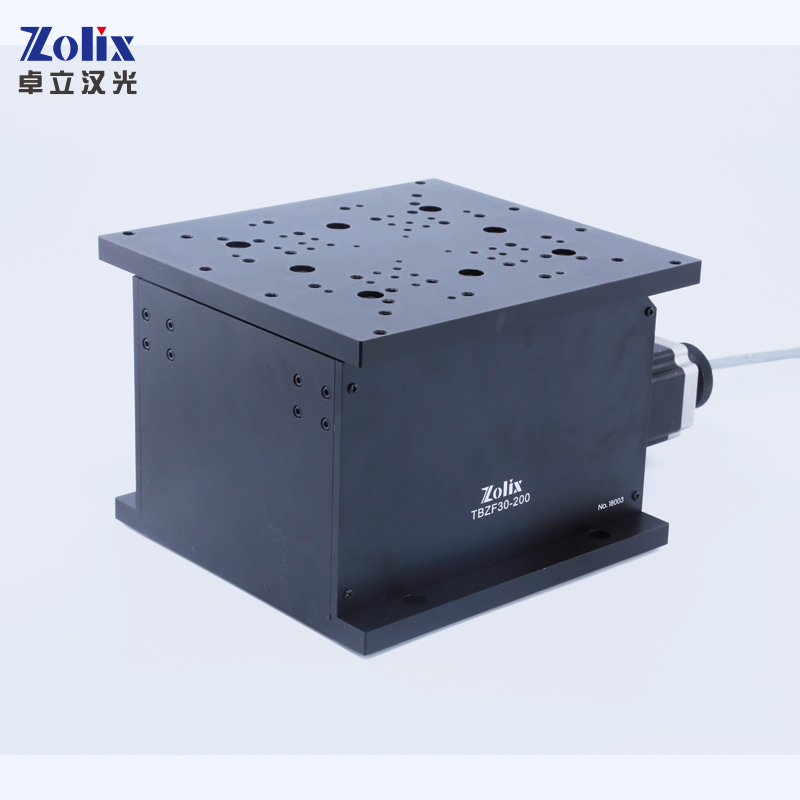

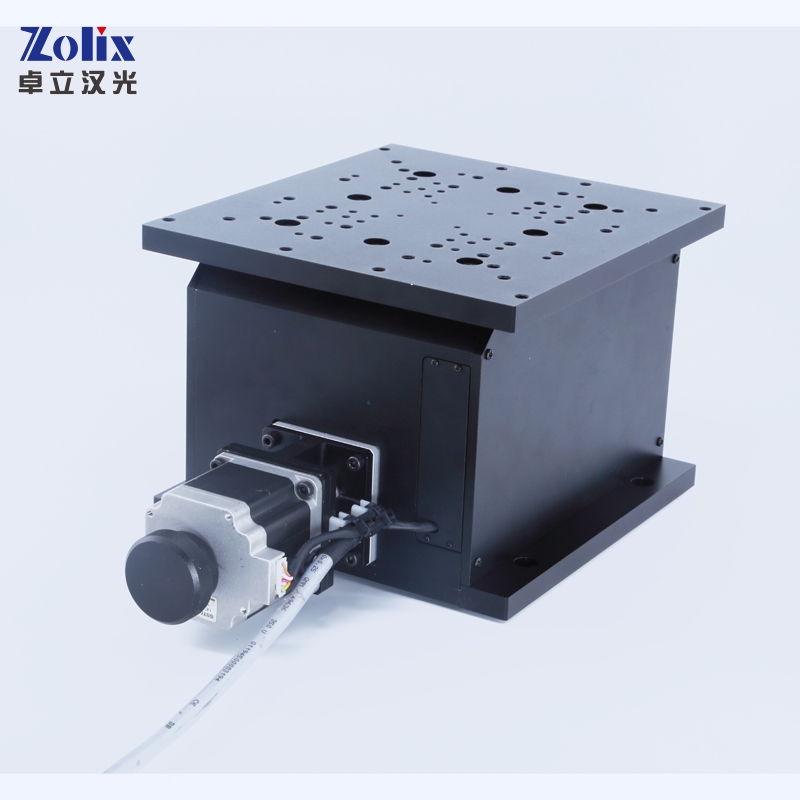

TBZF30-200
