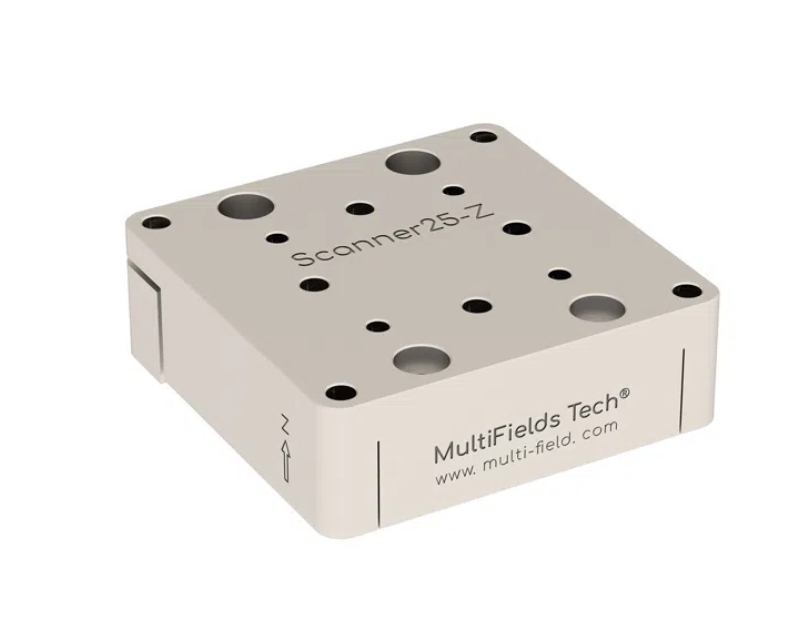

Scanner25-z
Open-loop cryogenic Z flexure scanner; 20 um range at 300 K or 12 um at 4 K; friction-free flexure body; sub-nanometer positioning class; 75 V @300 K / 180 V @4 K drive range.
Datasheet (PDF) ↗CAD Model (STEP) ↗Specifications
| Active axes | Z |
|---|---|
| Footprint × hight | 25 x 25 x 8.5 mm |
| Mass | 20 g |
| Work Environment | Default: 1.4 K~ 400 K, 1e-7 mbar, 35 Tesla |
| Mainbody | Default: Pure Ti, ULT: BeCu |
| Wires | Phosphor Bronze Twisted Paired Wires, 20cm |
| Pin materials | Polyster(glass fiber filled), BeCu |
| Pins number | 2 pins |
| Travel range @300 K | 55 um |
| Drive Voltage | Max. 75 V @300 K, Max. 180 V @4 K |
| Max. Load | 200 g |
| Capacitance @300 K | 4.2 uF |
| Resolution | 0.8 nm |
| Repeatibility | <10 nm |
Applications
Low-dissipation fine scan
No sensor excitation means no additional heat load where the cooling budget is tight.
Fine positioning within a coarse stack
Provide sub-nanometre trim above a stick-slip positioner that has done the travelling.
Relative-motion measurement
Suits scans where the observable depends on relative displacement, not absolute coordinates.
Specifying this part
What this model has to survive, and what it needs around it
Scan range falls below 4 K
Piezoelectric coefficients drop as temperature falls, so a flexure scanner does not deliver its room-temperature range at base. The drive electronics recover part of it through voltage headroom — these scanners are rated to 75 V at 300 K and 180 V at 4 K. Specify against the low-temperature figure for your model, not the 300 K one.
Friction-free flexure drive
A piezo stack acting through flexure hinges, with no sliding contact anywhere in the mechanism. Motion is smooth, continuous and reproducible with no stick-slip signature — which is what scanning probe microscopy at low temperature requires of a fine axis.
Heat load at the cold plate
Stick-slip inertial drives dissipate energy per step and draw no holding current once stopped, so the steady-state load on the mixing chamber is the wiring loom rather than the motor. Anchor the loom at each temperature stage and thermalise the moving body with an FTC copper braid.
Non-magnetic construction
Titanium bodies and BeCu fasteners throughout, rated for operation to 35 T and down to 30 mK with the .ULT option, at 2 × 10⁻¹¹ mbar with .UHV. A single steel screw substituted at installation is enough to compromise a high-field assembly.
Full series comparison, controller pairing and mounting hardware on the cryogenic piezo stages overview, or work through the selection with the configurator.
