Cryogenic Piezo Stages Configurator

Select standard cryogenic linear stages, rotators, goniometers, scanners, controllers, or accessories. Configure closed-loop displacement sensors, vacuum ratings, and temperature limits to suit your cryostat setup.

1. Select Product Category

2. Linear Stage Variant

Sensor Encoder

Quantity

Custom requirements (e.g. dilution cryostat specs)

Configured Cryo Piezo Stage

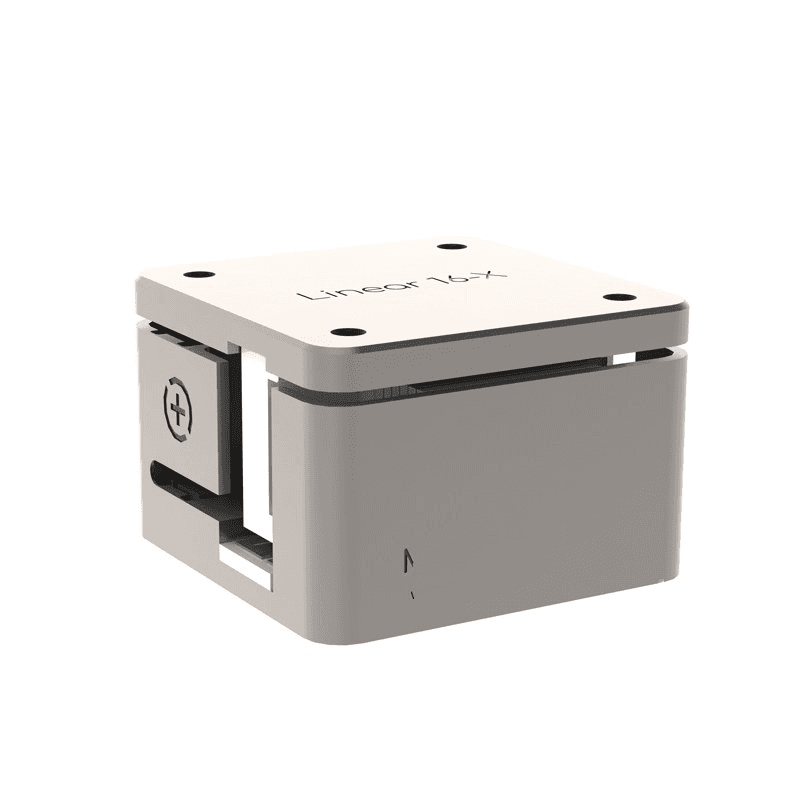

Linear16-x Compact Linear Stage (X)

Identified Model Reference

Linear16-x

Specifications

Dimensions: 16 x 16 x 10.5 mm
Travel: 3 mm coarse
Payload: 50 g
Material: Pure Titanium body
Encoder: Resistive closed-loop (150 nm resolution)

Open Page

We will match this configuration with Zolix extreme-environment cryogenic positioners and provide the relevant pricing, STEP files, and technical solution.
