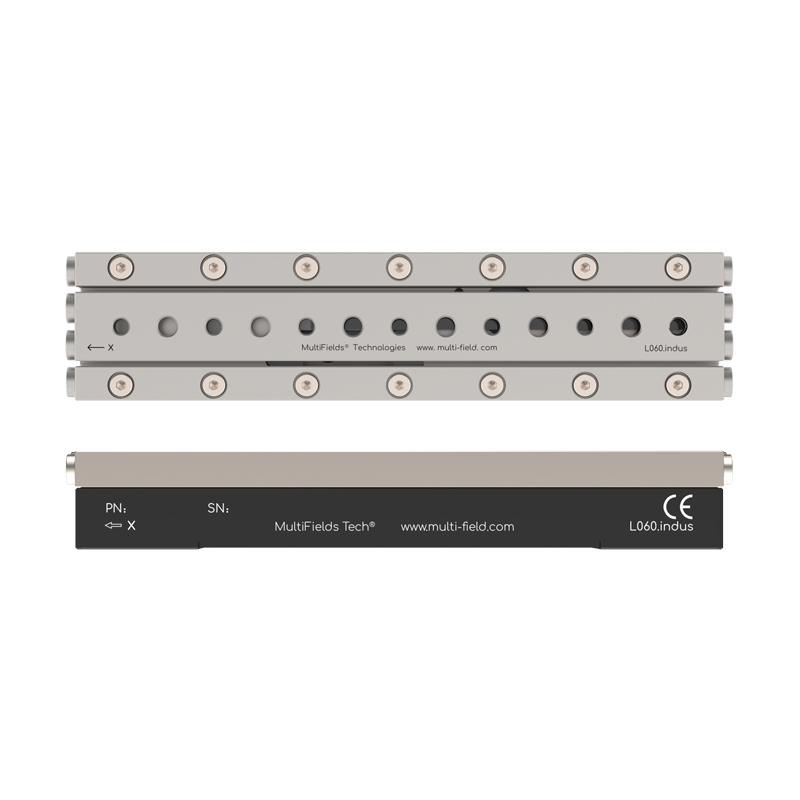

L060.Indus
Indus long-travel piezo linear stage; 105 x 24 x 14 mm footprint; 60 mm travel; 174 g mass; 1 kg payload; 2 nm encoder class with self-locking stick-slip drive; .HV, .UHV, and .NM variants available.
Datasheet (PDF) ↗CAD Model (STEP) ↗Catalog context
Where L060.Indus fits
L060.Indus is listed in the Ambient Piezo Stages - Indus linear stages family. The local catalog record provides these first selection fields: Active axes: X; Mass: 174 g; Travel range: 60 mm.
Specifications
| Active axes | X |
|---|---|
| Mass | 174 g |
| Travel range | 60 mm |
| Max Driving Frequency | 20 kHz |
| Max. Velocity | 10 mm/s |
| Minimum Incremental Motion(Close-loop) | 10 nm |
| Max. Push Force | 2 N |
| Holding Force | 3 N |
| Max. Payload (horizontal mounting) | 1 kg |
| Sensor Type | Optical Sensor |
| Sensor Resolution | 2 nm |
| Controller | MC-Newton.S series |
