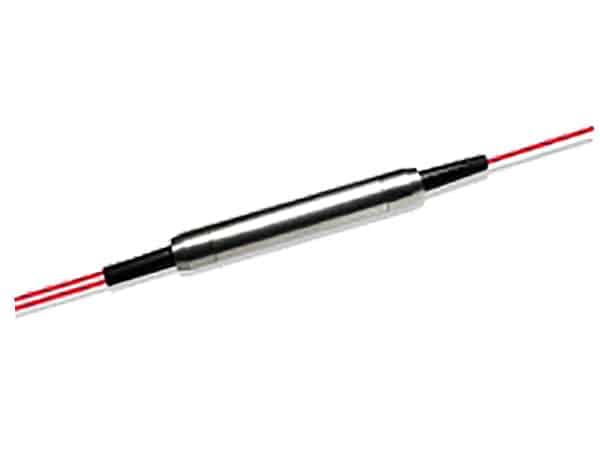

Fused Fiber Optical WDM is a configurable wavelength multiplexer or demultiplexer in the Couplers, Splitters & Combiners family. The final part number should be released only after the optical, mechanical, electrical and environmental fields below are matched to the intended instrument.

Back to Couplers, Splitters & Combiners

Engineering reference

Specify Fused Fiber Optical WDM from the interfaces inward

The source record contains no configuration table or datasheet. The fields below are therefore procurement requirements to confirm, not claimed values for every option.

Configuration fields to confirm

Channel plan: List every center wavelength, channel spacing and allowed wavelength tolerance.
Passband: Confirm passband width, ripple and polarization dependence across operating temperature.
Loss and isolation: Budget insertion loss, adjacent-channel isolation, non-adjacent isolation and return loss.
Fiber architecture: Specify single-mode, multimode or PM fiber together with operating mode-field diameter.
Termination: Define pigtail length and connector type and polish at every common and channel port.
Power and environment: Check optical-power handling, package temperature range, thermal cycling and qualification level.

Qualification sequence

1Define the measurement objective and the performance limit that Fused Fiber Optical WDM must satisfy.
2Freeze wavelength, mechanical, fiber and electrical interfaces before selecting option codes.
3Check loss, noise, heat, motion or vibration contributions in the complete system budget.
4Confirm the final drawing, pinout, environmental suffix and acceptance test with the quotation.

Application context

Why this design is used

Application guidance is tied to the configured wavelength, fiber interface and optical-budget fields for this family.

Wavelength-routed fiber systems

The channel grid and passband must align with every source while isolation and return loss prevent leakage and destabilizing reflections.

Multi-wavelength sensing

A defined wavelength map lets several sensing bands share one fiber while the component loss remains inside the receiver power budget.

Technical FAQ

Integration questions for Fused Fiber Optical WDM

What must be specified before ordering Fused Fiber Optical WDM?

Confirm channel plan, passband, loss and isolation, fiber architecture, termination, and power and environment. These fields are coupled, so the final part number should be checked against the complete instrument rather than selected from the model name alone.

How should Fused Fiber Optical WDM be integrated into the system?

A WDM component separates or combines channels by wavelength. Channel plan, passband shape and thermal wavelength drift set interoperability; insertion loss, isolation and return loss set the usable link margin. Freeze the optical, mechanical and electrical interfaces before releasing the surrounding assembly.

Which documentation should be approved for Fused Fiber Optical WDM?

Approve the configuration-specific specification, mechanical drawing, connector or pinout definition, environmental suffix and acceptance-test limits supplied with the quotation. Any field absent from the local record remains a confirmation item, not an assumed capability.

Need this configured?

Share your wavelength, fiber type, connector, power handling and control requirements and we will qualify the matching configuration and part number.

Model selection

Nearby series comparison

Compare Fused Fiber Optical WDM with the closest available models in the Couplers, Splitters & Combiners family. Confirm option-dependent values on the final configuration before ordering.

Selection parameter	Fused Fiber Optical WDM (current)	Fiber Optical RGB Light Combiner	High Power 1x2, 2x2 Multimode Fiber Optic Coupler/Splitter
Wavelength range	Confirm for this model	Confirm for this model	915, 975
Optical performance	Confirm for this model	Confirm for this model	Confirm for this model
Fiber type	Confirm for this model	Confirm for this model	0.22NA 105/125
Connector / control	Confirm for this model	Confirm for this model	None, FC/PC, FC/APC, Special
