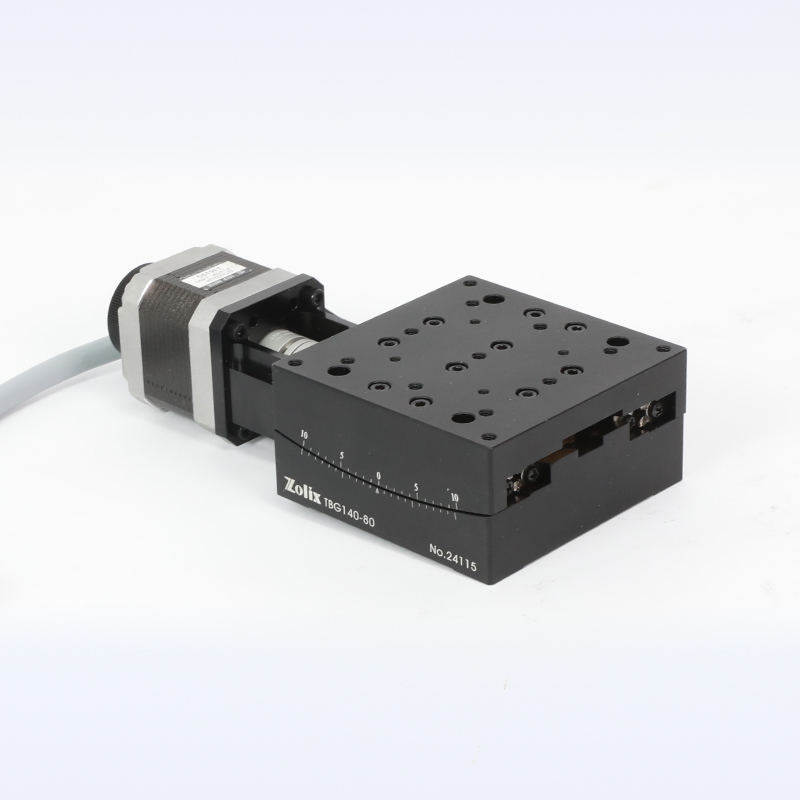

TBGX140-80 Motorized Goniometer
TBGX140-80 — TBG Series Motorized Goniometers.
Check a reference product- Repositioning accuracy
- ≤±0.005°
- Stage surface size
- 80×80 mm
- Designed height at center
- 140 mm
- Angle range
- ±6°
Product comparison
Check a reference product
Considering TBGX140-80 for an existing setup? Send us the reference product number and your required specifications. Our engineers can help check the function, configuration, dimensions and interfaces.
Ask our engineers →Specifications
Mechanical
| Designed height at center(mm) | 140 |
|---|---|
| Stage surface size(mm) | 80×80 |
| Angle range(°) | ±6 |
| Worm gear/worm transmission ratio | 399:1 |
| Guide mechanism | Arc crossed-roller guide |
| Worm gear material | Wear-resistant tin bronze |
| Material and process technology of worm | Steel, high-frequency quench |
| Main body material and surface treatment | Black anodized aluminum alloy |
| Weight(Kg) | 1.2 |
| Shaft coupling (OD - OD1- OD2)(mm) | 43590 |
| Thickness(mm) | 40 |
Accuracy
| Step resolution (°) | ≈0.0045 |
|---|---|
| 8-fine-subdivision resolution (°) | ≈0.0005 |
| Max speed(s)* | ≈9 |
| Repositioning accuracy(°) | ≤±0.005 |
| Backlash(μm) | ≤15 |
| Backward rotation clearance(°) | ≤0.01 |
| Swing accuracy at rotation center (mm) | ≤0.01 |
Motor & electrical
| Stepping motor and its stepping angle (°) | Two-phase 42 stepping motor,1.8 |
|---|---|
| Working current(A) | 1.7 |
| Torque of motor(N-m) | 0.456 |
| Model of motor | SST43D2126-10 |
| Brand and model number of stepping driver (optional) | Moons, SR2 |
| Voltage of power supply for | DC5~24V±10% |
Sensors & connection
| Type of plug for stage | DB9(pin) |
|---|---|
| Type of plug for stage | High flexibility cable (Helukabel, Germany) |
| Length of connection cable(m) | 0.2 |
| Position-limit sensors (built-in) | 2 units GP1S092HCPI(Japan SHARP) |
| Origin-point sensors (built-in) | 1 units GP1S092HCPI(Japan SHARP) |
| sensors (V) | <60 (total) |
| Current consumption(mA) | NPN open controller output, DC5~24V 8mA or less Residual voltage 0.3V or less (when load current is 2mA) |
| Control output | Output ON when sensor is blocked |
Load capacity
| Horizontal direction(Kg) | 5 |
|---|---|
| Vertical direction(Kg) | 2.5 |
| Inverted direction(Kg) | 3 |
Compatible controllers
For the two-phase 42 stepping motor this stage uses.
