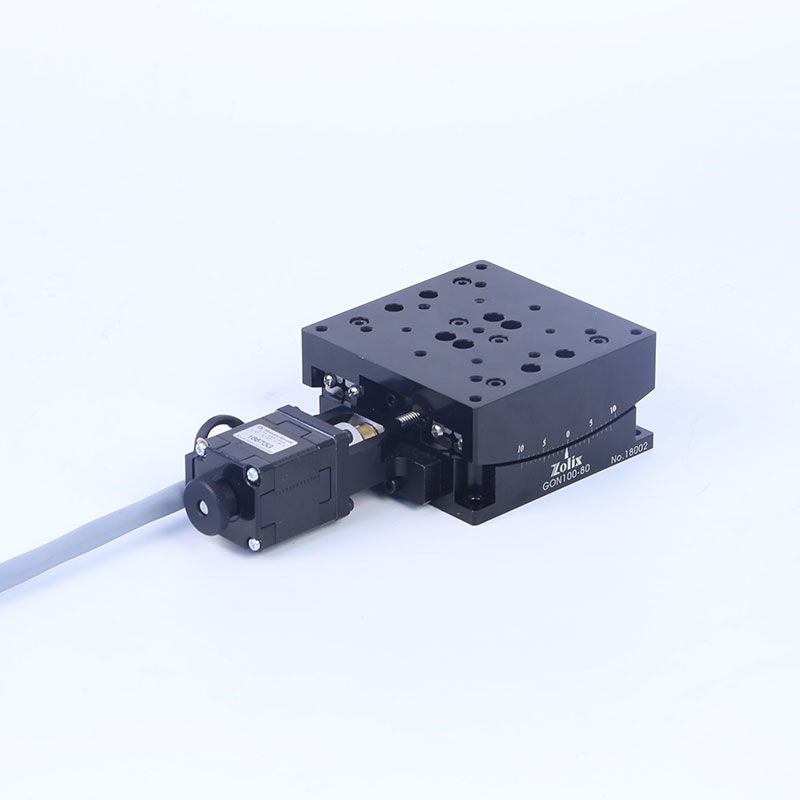

GON100-80 Motorized Goniometer
GON100-80 — GONX Series Motorized Goniometers.
Check a reference product- Repositioning accuracy
- ≤±0.001°
- Stage surface size
- 80×80 mm
- Designed height at center
- 100 mm
- Swing angle range
- ±4°
Product comparison
Check a reference product
Considering GON100-80 for an existing setup? Send us the reference product number and your required specifications. Our engineers can help check the function, configuration, dimensions and interfaces.
Ask our engineers →Specifications
Mechanical
| Designed height at center (mm) | 100 |
|---|---|
| Stage surface size(mm) | 80×80 |
| Swing angle range(°) | ±4 |
| Transmission mechanism | Ball screws,φ6×1 |
| Guide mechanism | Arc crossed-roller guide+linear-slider guides |
| Material | Black anodized aluminum alloy |
| Weight(Kg) | 0.9 |
| Shaft coupling (OD - OD1- OD2)(mm) | 42434 |
Accuracy
| Step resolution (°) | 0.0025 |
|---|---|
| 8-fine-subdivision resolution (°) | ≈0.0003 |
| Max speed(/s)* | ≈5.03 |
| Repositioning accuracy(°) | ≤±0.001 |
| Backlash(°) | ≤0.004 |
| Backward rotation clearance(°) | ≤0.004 |
| Swing accuracy at rotation center(mm) | ≤0.01 |
Motor & electrical
| Motor and its stepping angle (°) | Two-phase 28 stepping motor, 1.8 |
|---|---|
| Model of motor | STP-28D1003-08 |
| Working current(A) | 1.3 |
| Torque of motor(N-m) | 0.079 |
| Brand and model number of stepping driver (optional) | Moons, SR2 |
Sensors & connection
| Type of plug for stage | DB9(pin) |
|---|---|
| Type of plug for stage | High flexibility cable (Helukabel, Germany) |
| Length of connection cable(m) | 0.2 |
| Position-limit sensors (built-in) | 2 units GP1S09xHCPI(Japan SHARP) |
| Origin-point sensors (built-in) | 1 units GP1S09xHCPI(Japan SHARP) |
| Sensor voltage(V) | DC5~24V±10% |
| Current consumption(mA) | <60 (total) |
| Control output | NPN open controller output DC5~24V 8mA or less Residual voltage 0.3V or less (when load current is 2mA) |
| Status of output ports | Output ON when sensor is blocked |
Load capacity
| Horizontal direction(Kg) | 4 |
|---|---|
| Inverted direction(Kg) | 1.5 |
| Vertical direction(Kg) | 2 |
Compatible controllers
For the two-phase 28 stepping motor this stage uses.
