Modulation & control

AOM & Shutter

Choose an acousto-optic modulator for fast intensity control or a mechanical shutter for beam gating. Separate specification tables make the optical, timing and drive requirements easy to compare.

AOM & Shutter

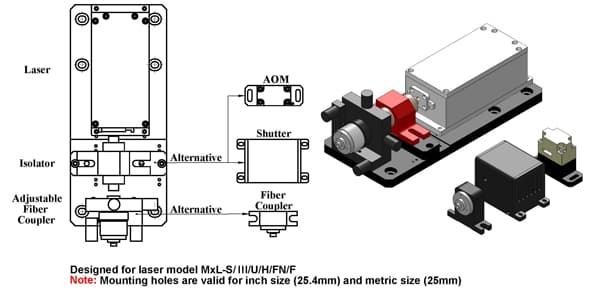

AOM & Shutter · configurations shown for reference
AOM wavelength range
450–700 nm
Listed AOM pulse repetition
4 MHz
Mechanical shutter operation
0–10 Hz

Compare the details

Technical specifications

Compare the listed configurations and match the specifications to your setup.

Jump to a specification table (2)

22 specification rows.

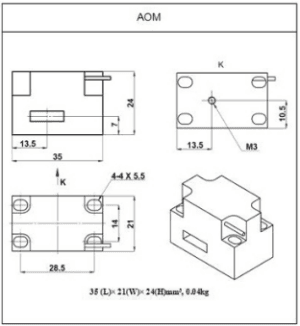

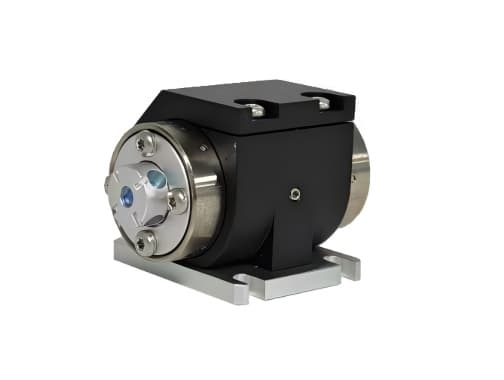

Acousto-optic modulator

12 entries
AOM & Shutter: Acousto-optic modulator
ParameterSpecification
Wavelength450-700nm
Optical powerTypical <1W (@1.0mm)
Transmission93%
Center frequency100MHz
Diffraction efficiency80%
Active aperture1.0mm
Extinction ratio≥1000:1
Pulse repetition frequency4MHz
RF power1.2W
Input impedance50Ω
Controller drive voltage24VDC
External modulationTTL/Analog

Mechanical shutter

10 entries
AOM & Shutter: Mechanical shutter
ParameterSpecification
Aperture Diameter4.0mm
Typical Beam Diameter2.0mm
Operating Frequency Range0-10Hz
Maximum Laser Power<3W
Rise Time~8ms
Fall Time~8ms
Delay d~18ms
Operating Temperature15-40℃
External ModulationTTL
Drive Voltage5VDC/ 12VDC

Build around your experiment

What to specify

Share these details with your enquiry so we can match the component to your optical setup.

  1. 01Laser wavelength, optical power and beam size.
  2. 02Required timing, modulation depth and electrical signal levels.
  3. 03Driver, control interface, mounting and thermal requirements.

Technical FAQ

Configuration questions for AOM & Shutter

How should the AOM & Shutter be included in an optical power budget?

Wavelength: 450-700nm · Extinction ratio: ≥1000:1. Check the Laser components and accessories passband, insertion loss, return loss and power handling at the actual source wavelength; a nominal telecom-band label is not a substitute for the configured range.

Does the AOM & Shutter require a controller?

Controller drive voltage: 24VDC · Drive Voltage: 5VDC/ 12VDC. Match supply voltage, analog or digital command range, connector pinout and default optical state to the instrument interlock. Confirm the unpowered state explicitly — it decides what happens to the link on a power failure.

Technical documents

Keep the specifications at hand when planning your setup.

Download datasheet (PDF)
