Microscopy Cameras/Microscope Cameras

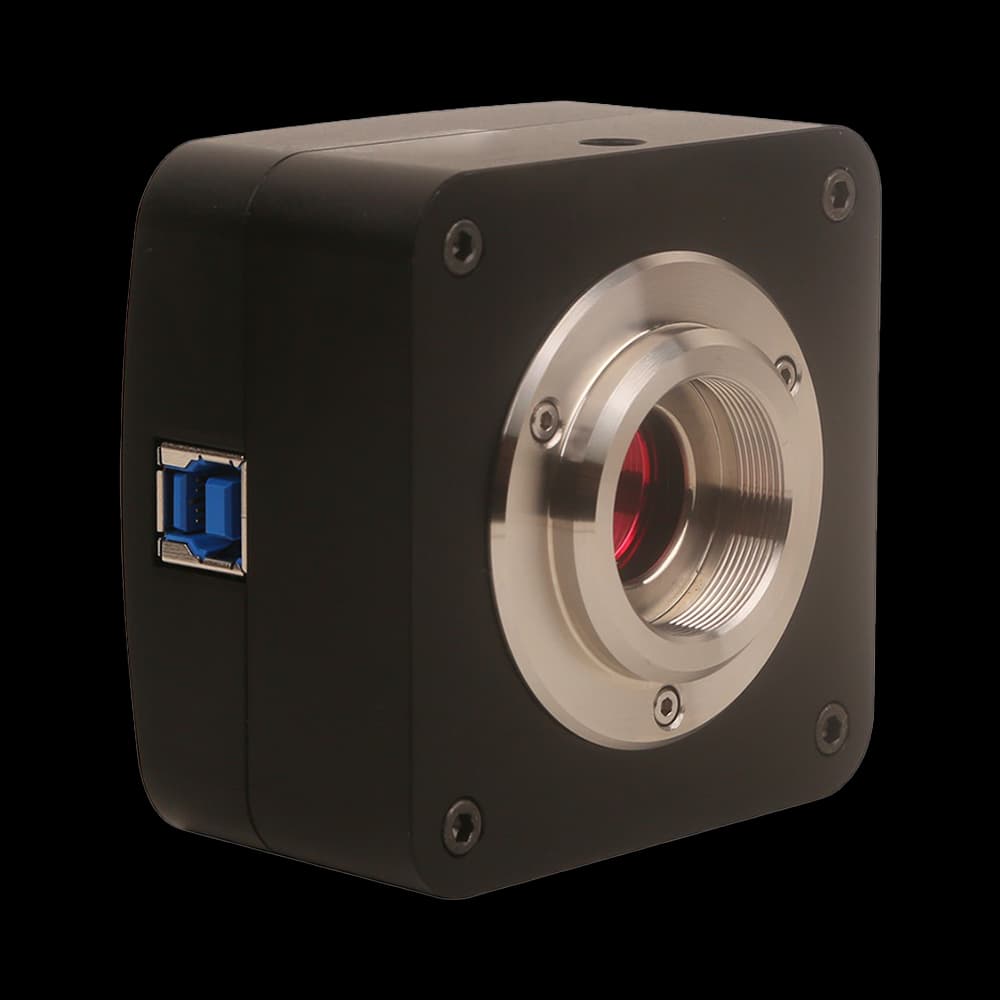

E3CMOS02300KPA

E3CMOS02300KPA Microscopy Cameras/Microscope Cameras with IMX185 (C) sensor, 2.3M (1920×1200) for professional imaging.

Sensor: IMX185 (C)
Resolution: 2.3M (1920×1200)
Pixel Size: 3.75 µm × 3.75 µm
Frame Rate: 38 fps @ 1920×1200; 66 fps @ 960×600
Interface: USB3.0

Datasheet (PDF)Back to Microscopy Cameras

Specifications

E3CMOS02300KPA

22 specification rows

The E3CMOS02300KPA is a microscopy camera in the E3CMOS series, built around a IMX185 (C) sensor, 2.3M (1920×1200) resolution, 3.75 µm × 3.75 µm pixels, frame rates up to 38 fps @ 1920×1200; 66 fps @ 960×600, a USB3.0 interface. It suits microscopy cameras/microscope cameras where reliable imaging performance and interface compatibility matter.

Key Parameters

Model	E3CMOS02300KPA
Sensor	IMX185 (C)
Effective Pixels / Resolution	2.3M (1920×1200)
Frame Rate (Full Resolution)	38 fps @ 1920×1200; 66 fps @ 960×600
Shutter Type	Rolling Shutter
Color Type	Color

Imaging Performance

Pixel Size	3.75 µm × 3.75 µm
Sensor Size	7.20 mm × 4.50 mm
Diagonal	1/1.8" (8.49 mm)
Dynamic Range	Available on request
Bit Depth	8/12-bit
Sensitivity	1120 mV with 1/30s; 0.15 mV with 1/30s

Interface & Mechanical

Data Interface	USB3.0
GPIO	Available on request
Lens Mount	C-mount
Dimensions	Available on request
Weight	Available on request
Power Supply	USB3.0 interface power

Environment & Certification

Operating Temperature / Humidity	10 °C ~ +50 °C / 30%~80%RH
Storage Temperature / Humidity	20 °C ~ +60 °C / 10%~60%RH
Operating System	Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.)
Certification	CE, FCC
