4-Channel Analog Output and Digital Input Control Module

Four-channel module with a TTL trigger input and a 0–5 V analog output per channel, programmed over USB or RS232, to drive up to four manual/analog BLS LED drivers from software.

Channels
4
Control
I/O and synchronisation
Time resolution
20 µs
Interface
USB or RS232
1 part number1 technical document

Your enquiry

Part number BLS-IO04-US

Discuss my setup

Quotation-based: tell us about the setup and we prepare a quotation for it.

Manufactured by Mightex. Precisometer is a Mightex distribution partner: we quote, integrate and support Mightex products, with in-person support in the Netherlands and Belgium.

Choose this when…

  • You need four analog outputs and four TTL inputs to drive up to four manual/analog BLS LED drivers from software. Mightex offers an upgrade path to PolyEcho, which adds timestamping.

Based on: Mightex BLS-IO04 page and PolyEcho trade-in page.

From Mightex

About the 4-Channel Analog Output and Digital Input Control Module

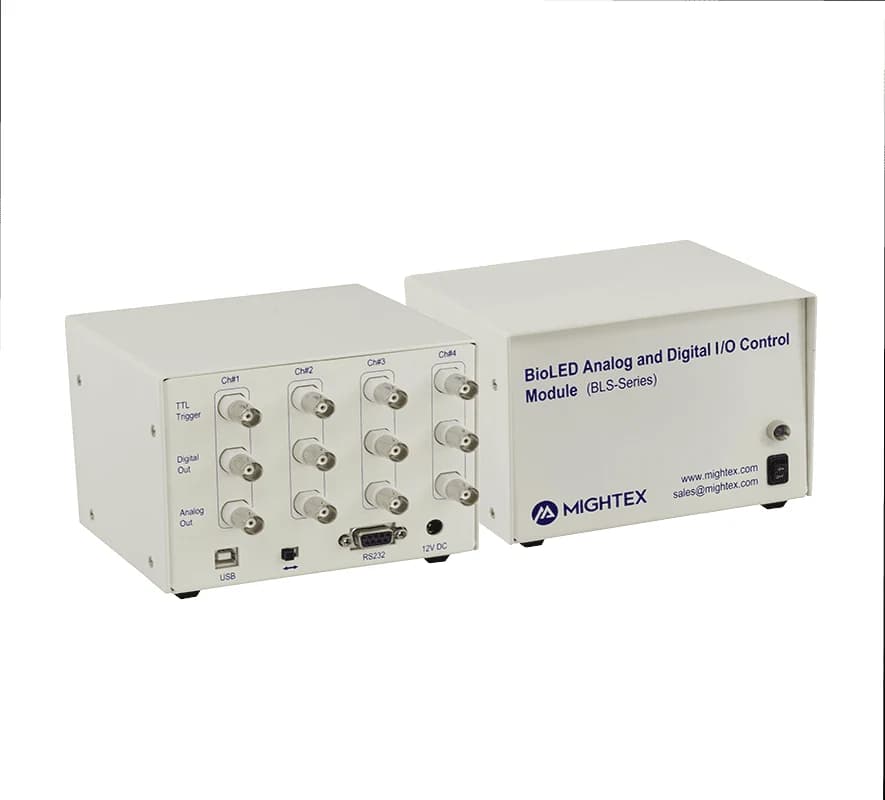

BLS-IO04-US: Digital input and analog output control module. Four (4) independent channels. Each channel has an external trigger input (TTL) and an analog voltage output (0-5V). All input/output are BNC-connectorized.

The BLS-IO04-U is a control box that offers 4 independent analog outputs and 4 digital inputs. With a selectable USB2.0 or a RS232 connection the user has the ability to program the analog output of each channel through either the included software or the SDK. One application of the BLS-IO04-U is to pair it with Mightex’s BLS-Series Manual/analog LED controllers, to allow the user to control their LED light sources through software or SDK on their PC.

Features

  • Four (4) independent channels.
  • One external input trigger (TTL) and one analog voltage output (0-5V) per channel.
  • All I/O are BNC-connectorized.
  • Works with up to four (4) BioLED Manual/Analog Controlled LED Controllers to control four (4) LED’s.
  • Thirty-two (32) customizable waveforms, each can be paired with any of the four channels.
  • Program up to 1024 channel/waveform pairs in a sequence. 1
  • 1. Sequence repeat after all 1024 pairs are generated.

Specifications

Technical specifications

ParametersBLS-IO04-USUnit
Synchronization with PolygonYes-
Number of Channels4-
Power supply, Vdc12V
Output analog voltage resolution0.1%
Output analog voltage range0 - 5V
Output analog voltage accuracy+/-0.5% (or +/-3mV)*V
Time resolution20µs
Maximum analog pulse number21-
Maximum analog pulse repeat100,000,000 times-
External trigger levelTTL-
Max. trigger delay25µs
Host interfaceUSB or RS232-
Non-volatile memoryYes-
Dimensions135(L) x 140(W) x 105(H)-
Weight-g
*Whichever is bigger.

Reproduced from Mightex (official page), retrieved 2026-10-15.
