LED Controllers, Triggering & Software

LEDs need a constant-current driver. Manual and analog drivers set current with a knob or a 0–5 V input; the BioLED software and TTL control modules add programmed pulses and triggers with microsecond timing; the PolyEcho module synchronises lights, cameras and behavioural hardware against one clock, and PolyScan software ties Mightex hardware together.

9 of 9 LED Controllers, Triggering & Software pages

System control and software

4-Channel Analog Output and Digital Input Control Module (Mightex)Product family

System control and software

4-Channel Analog Output and Digital Input Control Module

Four-channel module with a TTL trigger input and a 0–5 V analog output per channel, programmed over USB or RS232, to drive up to four manual/analog BLS LED drivers from software.

Channels
4
Control
I/O and synchronisation
Time resolution
20 µs
1 part number · 1 document
Mightex PolyEcho 4-channel intelligent control moduleSystem

System control and software

PolyEcho Intelligent I/O Control Module

Event-driven trigger and synchronisation module: 4 or 12 TTL inputs, TTL and analog outputs, unified timestamps for every event, and trigger delays under 20 µs, programmed in PolyScan.

Channels
4 or 12 TTL in/out
Analog outputs
4 or 8, 0–5 V or 0–10 V
Time resolution
20 µs
2 part numbers
PolyScan data review and analysis view (Mightex illustration)System

System control and software

PolyScan

Mightex control and acquisition software for Polygon, OASIS, PolyEcho, Mightex cameras and LED controllers, with a Pro tier for selected third-party cameras.

Tiers
Basic and Pro
Third-party cameras
Pro tier
Operating system
Windows 7+, 64-bit
1 part number · 1 document

Software and TTL LED controllers

BLS-Series Software/TTL Controlled LED Controllers with BNC and 2-pin Aero Connectors (Mightex)Product family

Software and TTL LED controllers

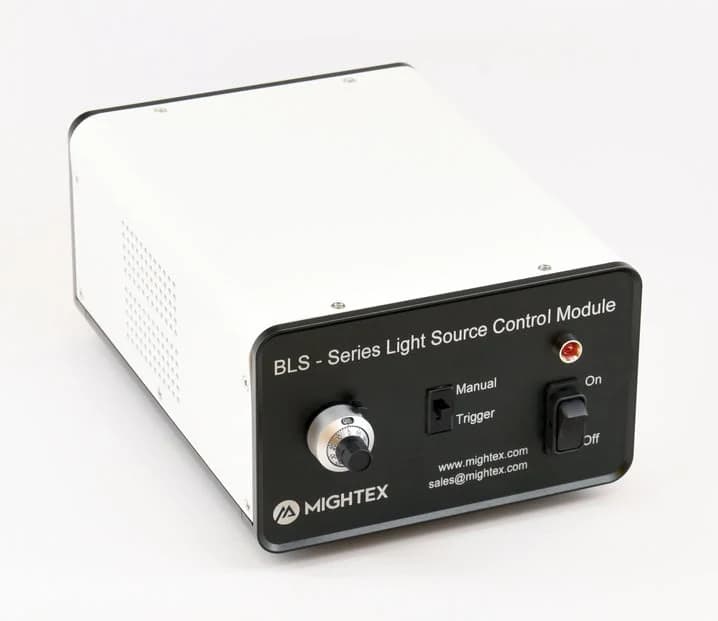

BLS-Series Software/TTL Controlled LED Controllers with BNC and 2-pin Aero Connectors

Two- and four-channel BioLED control modules for Mightex BLS LED sources: 20 µs time resolution, 0.1% intensity steps, a TTL trigger per channel, USB or RS232 control, and an optional touch-screen pad.

Control
Software, TTL trigger
Time resolution
20 μs
Interface
USB or RS232, selectable
3 part numbers · 2 documents

Manual and analog LED drivers

SLA-Series Two-Channel Universal LED Drivers with Manual & Analog-Input Controls (Mightex)Product family

Manual and analog LED drivers

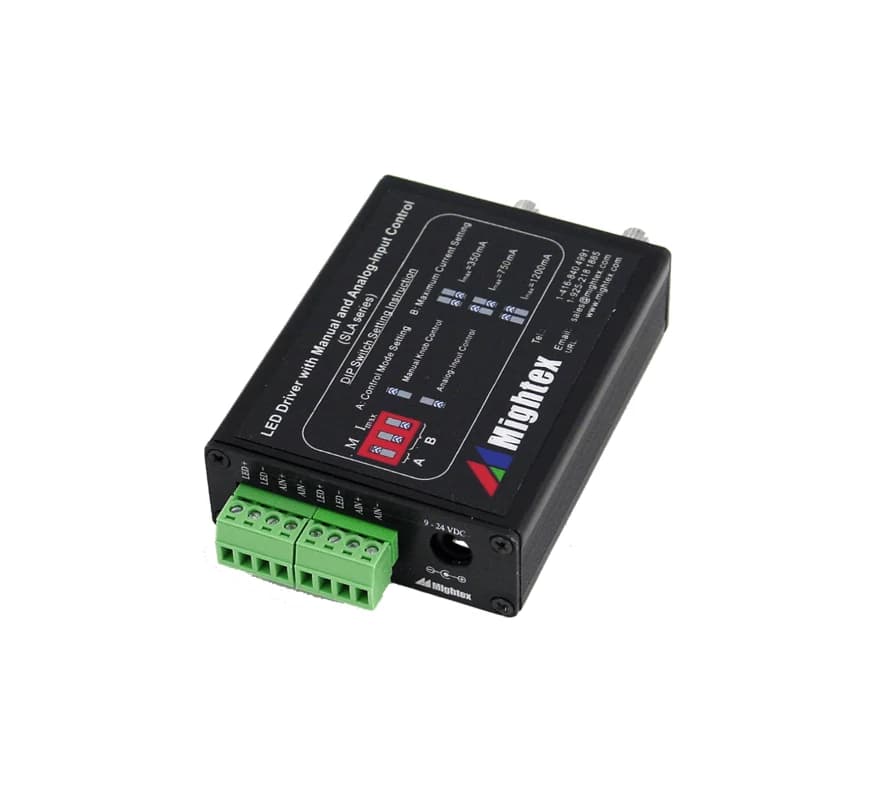

SLA-Series Two-Channel Universal LED Drivers with Manual & Analog-Input Controls

Mightex’s SLA-series two-channel universal LED drivers with two control modes: Manual Knob Control Mode: the current output of each channel can be adjusted manually Analog Input Control Mode: the current output of each channel can be controlled via 0~5V analog input.

Channels
2
Control
Manual, Analog input
Max. current
100 / 1000 mA
3 part numbers · 3 documents

Accessories

Accessories for LED Controllers and DriversAccessories

Accessories

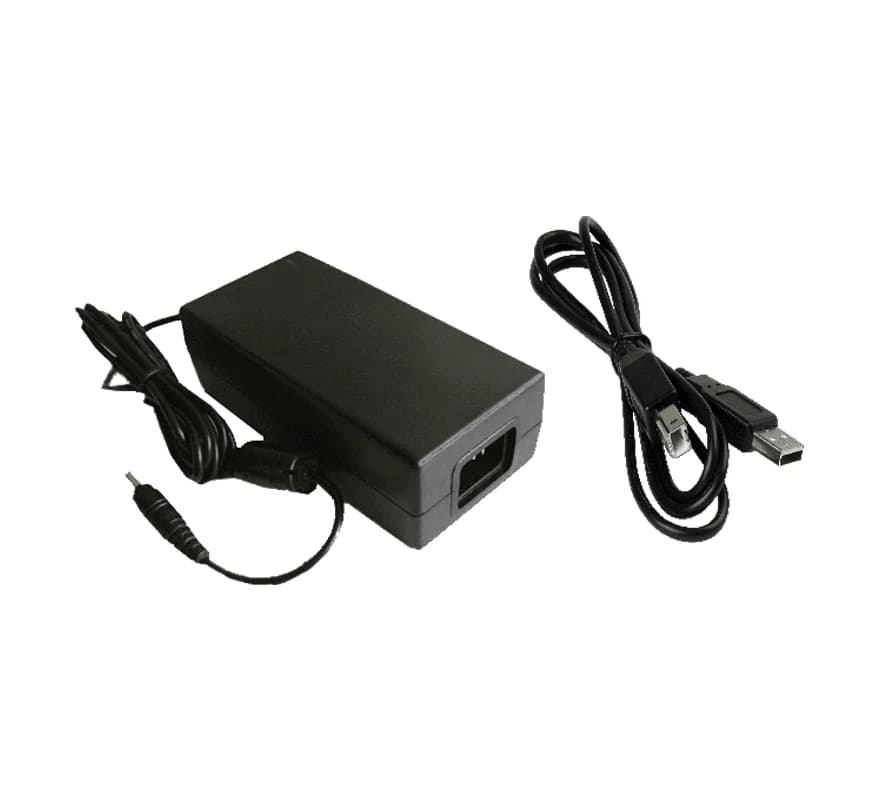

LED Controller Cables and Accessories

Cables, BNC leads, push-pull connector pairs, power supplies and mains plug adapters for Mightex LED controllers and drivers.

Items
4 accessories, 16 part numbers
16 part numbers

Also at Precisometer

Manufactured by Mightex. Precisometer is a Mightex distribution partner: we quote, integrate and support Mightex products, with in-person support in the Netherlands and Belgium.
