Laser Pulse Measurement

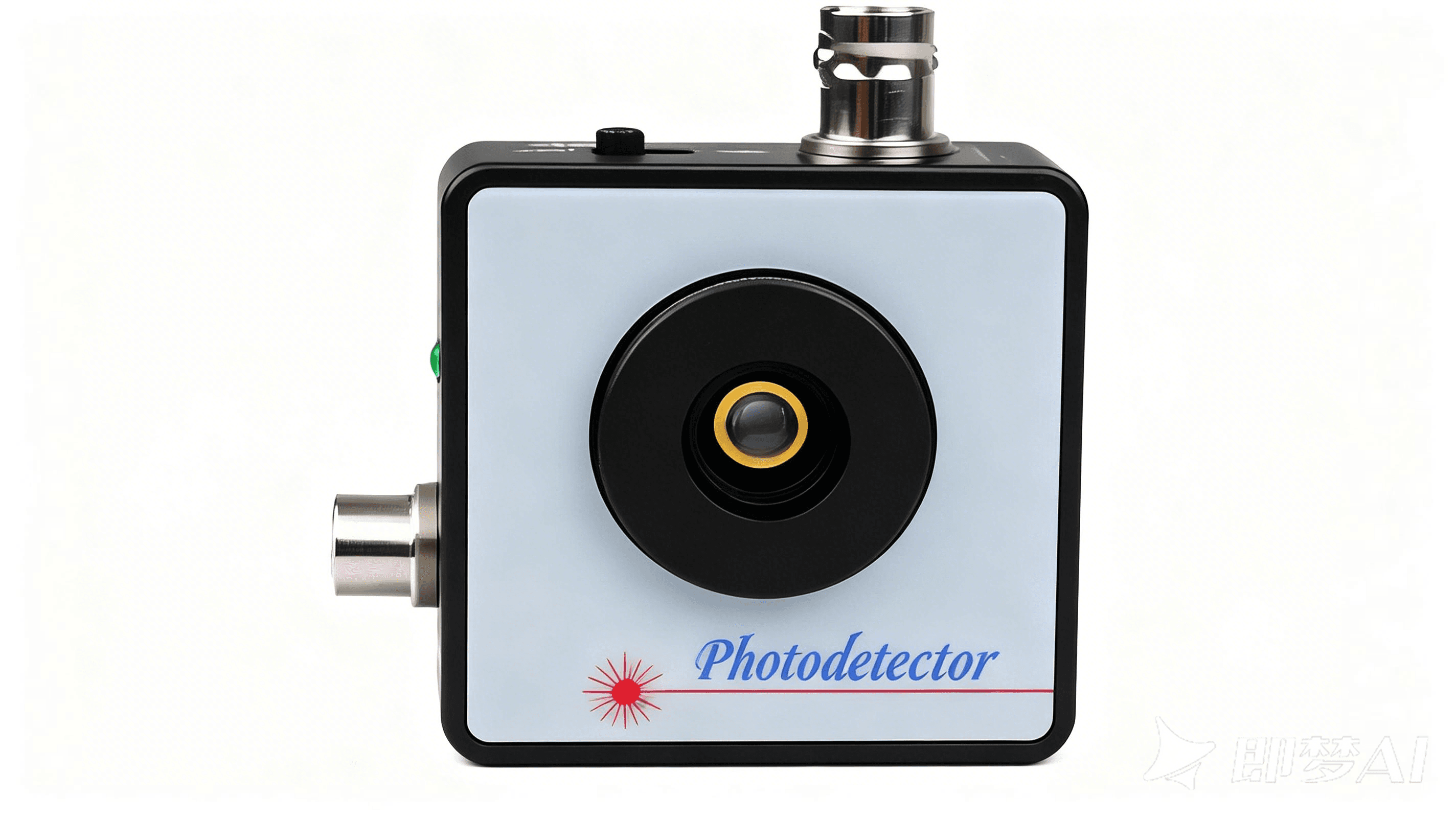

Photoelectric detector combined with oscilloscope can monitor ultra-fast pulsed laser and measure pulse duration, frequency, period and other parameters of lasers.
Product Specifications
Laser Pulse Measurement
10 specification rows
Specifications
| Parameter | Value |
|---|---|
| DA320-SI / DA350-SI | Wavelength range: 320-1100 nm Fixed gain low noise amplifier Built-in 50Ω load impedance Equipped with ±12V stabilized voltage supply |
| ±12V Regulated Linear Power Supply | For DA series photoelectric detectors ±12V DC output Three pins of power cable are grounded, +12V and -12V Equipped with LED switch indicator |
Specifications
| Model | Wavelength Range | Rise Time | Bandwidth |
|---|---|---|---|
| D200-SI | 200-1100 nm | 1ns | 350MHz |
| D320-SI | 320-1100 nm | 35ns | 10MHz |
| D800-IN | 800-1700 nm | 350ps | 1GHz |
| DA320-SI | 320-1100 nm | 35ns | DC-11MHz |
| DA350-SI | 350-1100 nm | 10ns | DC-12MHz |
Specifications
| Parameter | Value |
|---|---|
| D200-SI Pulse Duration and Frequency Testing | D200-SI Cycle Testing |
| D800-IN Pulse Duration and Rise / Fall Time Testing | - |
Product variants
| Parameter | Value |
|---|---|
| D200-SI / D320-SI / D800-IN | Wavelength range: 200-1700 nm Rise time: 1ns / 35ns / 350ps Equipped with built-in 12V bias battery Ultra compact design and can be used for measurement in narrow spaces Fiber coupling via SM1 optical adapter |
Need this configured?
Share wavelength range, measurement target, detector needs, sample geometry, software and interface requirements, and we will qualify the matching configuration.
