D200-SI Pulse Photodetector
D200-SI biased photodetector for laser pulse measurements.
Model Specifications
D200-SI Pulse Photodetector
Detector specifications
| Parameter | Specification |
|---|---|
| Model | D200-SI |
| Wavelength range | 200-1100 nm |
| Sensitive area | 0.8 mm² |
| Material | Si |
| Rise time | 1 ns |
| Bandwidth | 350 MHz |
| NEP | 5.0 × 10^-14 W/Hz^0.5 |
| Dark current | 0.3 nA typical; 2.5 nA maximum |
| Warranty period (listed) | 1 year |
| Amplifier / bias | Built-in 12 V bias battery |
| Load | 50 Ω external load recommended |
| Optical attenuation | Removable attenuator |
| Fibre coupling | SM1 optical adapter |
Measurement conditions
| Condition | Detail |
|---|---|
| Note 1 | Match optical power and spot size to the detector and attenuation. The oscilloscope, cable and termination affect the observed pulse response. |

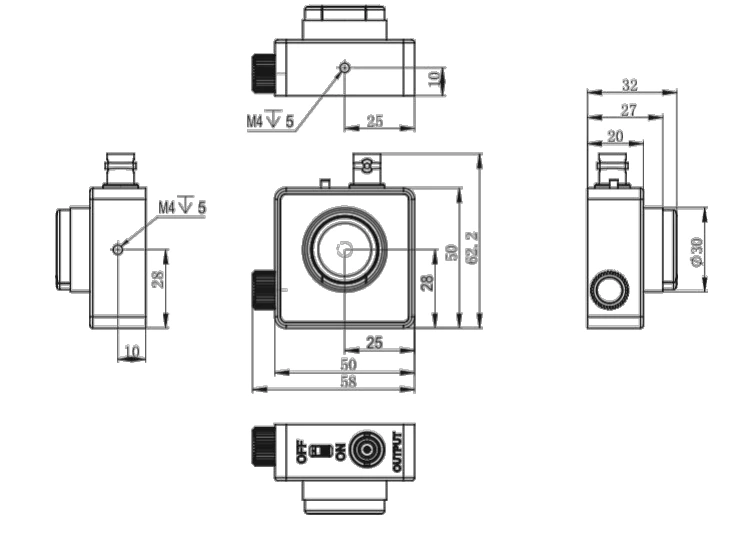

Mechanical outlines
