D800-IN Pulse Photodetector
- Model: D800-IN
- Wavelength range: 800-1700 nm
- Sensitive area: 0.01 mm²
- Material: InGaAs
- Rise time: 350 ps
- Fall time: 350 ps

Model Specifications
D800-IN Pulse Photodetector
Detector specifications
| Parameter | Specification |
|---|---|
| Model | D800-IN |
| Wavelength range | 800-1700 nm |
| Sensitive area | 0.01 mm² |
| Material | InGaAs |
| Rise time | 350 ps |
| Fall time | 350 ps |
| Bandwidth | 1 GHz |
| Warranty period (listed) | 1 year |
| Amplifier / bias | Built-in 12 V bias battery |
| Load | 50 Ω external load recommended |
| Optical attenuation | Removable attenuator |
| Fibre coupling | SM1 optical adapter |
Measurement conditions
| Condition | Detail |
|---|---|
| Note 1 | Match optical power and spot size to the detector and attenuation. The oscilloscope, cable and termination affect the observed pulse response. |

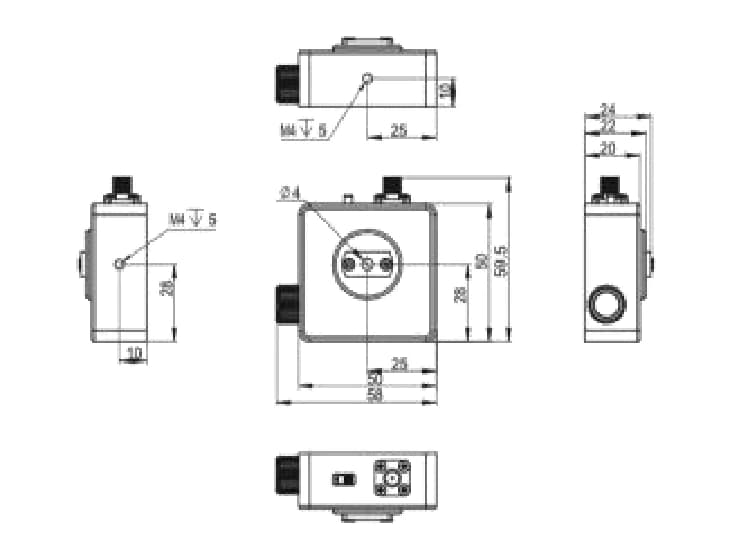

Mechanical outlines
