Cooled UV–VIS Scientific Imaging
sMAX6504B-VIS-U10-10G cooled scientific sCMOS camera with a back-illuminated GSENSE6504BSI sensor, 200–1100 nm response behind an AR-coated protective window, 0.72 e⁻ read noise, 86 dB HDR dynamic range, TEC cooling to 40 °C (air) or 55 °C (water) below ambient with anti-fog design, and USB3.2 Gen 2x1 or 10GigE output.
Application context
sMAX6504B-VIS-U10-10G: The GSENSE6504BSI (sCMOS) sensor, 4.2 MP (2048×2048) resolution, and 6.5 µm × 6.5 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 248 fps @ 2048×2048 (10GigE, 8-bit); 224 fps @ 2048×2048 (USB3.2 Gen 2x1, 8-bit) frame-rate listing also sets the fastest full-frame acquisition regime.
sMAX6504B-VIS-U10-10G: The GSENSE6504BSI (sCMOS) sensor, 4.2 MP (2048×2048) resolution, and 6.5 µm × 6.5 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 248 fps @ 2048×2048 (10GigE, 8-bit); 224 fps @ 2048×2048 (USB3.2 Gen 2x1, 8-bit) frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
37 specification rows
The sMAX6504B-VIS-U10-10G is a scientific camera in the sMAX series, built around a GSENSE6504BSI (sCMOS) sensor, 4.2 MP (2048×2048) resolution, 6.5 µm × 6.5 µm pixels, frame rates up to 248 fps @ 2048×2048 (10GigE, 8-bit); 224 fps @ 2048×2048 (USB3.2 Gen 2x1, 8-bit), a USB3.2 Gen 2x1 / 10GigE interface. It suits cooled uv–vis scientific imaging where reliable imaging performance and interface compatibility matter.
| Model | sMAX6504B-VIS-U10-10G |
|---|---|
| Sensor | GSENSE6504BSI (sCMOS) |

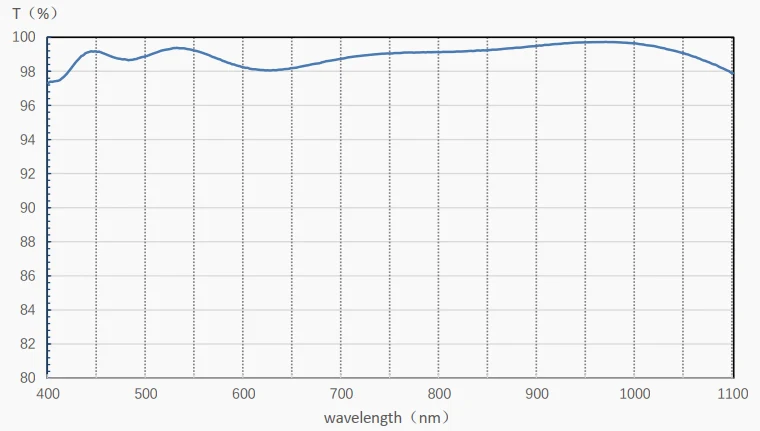

| Sensor Window | AR-coated protective glass (AR 1100 nm) |
| Shutter Type | Rolling shutter / global reset |
| Color Type | Monochrome |
| Resolution | 4.2 MP (2048×2048) |
| Sensor Size | 13.31 mm × 13.31 mm |
| Sensor Diagonal | 1.2″ |
| Pixel Size | 6.5 µm × 6.5 µm |
| Spectral Response Range | 200–1100 nm |
| Quantum Efficiency | 95% @ 450 nm |
| Frame Rate | 10GigE: 248 fps @ 8-bit, 124 fps @ 12-bit, 124 fps @ 16-bit; USB3.2 Gen 2x1: 224 fps @ 8-bit, 112 fps @ 12-bit, 112 fps @ 16-bit (2048×2048) |
|---|---|
| Exposure Time | 12 µs ~ 300 s |
| Bit Depth | Mono 8 / Mono 12 / Mono 16 |
| Readout Modes | High sensitivity / high full well / balanced / high dynamic range (HDR) |
| Readout Noise | 0.74 e⁻ (high sensitivity mode); 0.72 e⁻ (HDR mode) |
| Conversion Gain | 0.26 e⁻/DN (high sensitivity mode); 0.21 e⁻/DN (HDR mode) |
| Full Well Capacity | 1.03 ke⁻ (high sensitivity mode); 13.48 ke⁻ (HDR mode) |
| Dynamic Range | 62.1 dB (high sensitivity mode); 86 dB (HDR mode) |
| Signal-to-Noise Ratio | 30.1 dB (high sensitivity mode); 41.3 dB (HDR mode) |
| Sensitivity | 9.2×10⁷ e⁻/((W/m²)·s) @ 450 nm |
| Dark Current | ≤0.05 e⁻/s/pixel @ −10 °C; ≤0.01 e⁻/s/pixel @ −20 °C |
| Cooling | TEC, 40 °C below ambient (air-cooled) / 55 °C below ambient (water-cooled); anti-fog sensor and window |
| Binning | Software 2×2 ~ 8×8; hardware 1×1, 1×2, 2×1, 2×2 |
| Onboard Memory | 1024 MB (8 Gb) |
| External Trigger | Supported via digital I/O |
| GPIO | 1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O ports |
|---|---|
| Lens Mount | C-mount |
| Data Interface | USB3.2 Gen 2x1 / 10GigE |
| Power Supply | 19 V / 4.74 A power adapter |
| Power Consumption | <46 W (USB3.2); <55 W (10GigE) |
| Dimensions | 85 mm × 85 mm × 118 mm |
|---|---|
| Weight | 976 g |
| Operating Temperature | −30 °C to +60 °C |
|---|---|
| Operating Humidity | 20%–80% (non-condensing) |
| Storage Temperature | −40 °C to +85 °C |
| Software | SDK and camera control software |
|---|
Technical media
Official sensor-response, performance, and mechanical imagery for the sMAX6504B-VIS-U10-10G.
System integration
Use these checks to connect sMAX6504B-VIS-U10-10G to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: GSENSE6504BSI (sCMOS) · Resolution: 4.2 MP (2048×2048). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 248 fps @ 2048×2048 (10GigE, 8-bit); 224 fps @ 2048×2048 (USB3.2 Gen 2x1, 8-bit) · Interface: USB3.2 Gen 2x1 / 10GigE. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
External Trigger: Supported via digital I/O · GPIO: 1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O ports. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Full Well Capacity: 1.03 ke⁻ (high sensitivity mode); 13.48 ke⁻ (HDR mode) · Dynamic Range: 62.1 dB (high sensitivity mode); 86 dB (HDR mode). Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare sMAX6504B-VIS-U10-10G with the closest available models in the sMAX family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | sMAX6504B-VIS-U10-10G (current) | sMAX6504B-UV-U20-CXP | sMAX6504B-VIS-U20-CXP |
|---|---|---|---|
| Sensor | GSENSE6504BSI (sCMOS) | GSENSE6504BSI (sCMOS) | GSENSE6504BSI (sCMOS) |
| Resolution | 4.2 MP (2048×2048) | 4.2 MP (2048×2048) | 4.2 MP (2048×2048) |
| Sensor size | 13.31 mm × 13.31 mm | 13.31 mm × 13.31 mm | 13.31 mm × 13.31 mm |
| Pixel size / frame rate | 6.5 µm × 6.5 µm | 6.5 µm × 6.5 µm | 6.5 µm × 6.5 µm |
The GSENSE6504BSI appears in 4 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
