Cooled UV–VIS Scientific Imaging

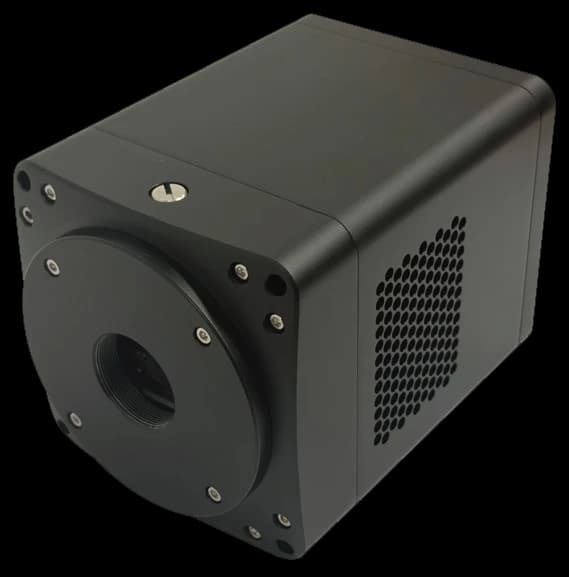

sMAX6504B-UV-U20-CXP cooled scientific sCMOS camera with a back-illuminated GSENSE6504BSI sensor, 200–1100 nm response behind a UV-grade quartz window for deep-UV work, 0.72 e⁻ read noise, 86 dB HDR dynamic range, TEC cooling to 40 °C (air) or 55 °C (water) below ambient with anti-fog design, and USB3.2 Gen 2x2 or CoaXPress 2.0 ×4 output.
Application context
sMAX6504B-UV-U20-CXP: The GSENSE6504BSI (sCMOS) sensor, 4.2 MP (2048×2048) resolution, and 6.5 µm × 6.5 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 298 fps @ 2048×2048 (CoaXPress 2.0 ×4 or USB3.2 Gen 2x2, 8-bit/12-bit); 170 fps @ 16-bit frame-rate listing also sets the fastest full-frame acquisition regime.
sMAX6504B-UV-U20-CXP: The GSENSE6504BSI (sCMOS) sensor, 4.2 MP (2048×2048) resolution, and 6.5 µm × 6.5 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 298 fps @ 2048×2048 (CoaXPress 2.0 ×4 or USB3.2 Gen 2x2, 8-bit/12-bit); 170 fps @ 16-bit frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
37 specification rows
The sMAX6504B-UV-U20-CXP is a scientific camera in the sMAX series, built around a GSENSE6504BSI (sCMOS) sensor, 4.2 MP (2048×2048) resolution, 6.5 µm × 6.5 µm pixels, frame rates up to 298 fps @ 2048×2048 (CoaXPress 2.0 ×4 or USB3.2 Gen 2x2, 8-bit/12-bit); 170 fps @ 16-bit, a USB3.2 Gen 2x2 / CoaXPress 2.0 ×4 interface. It suits cooled uv–vis scientific imaging where reliable imaging performance and interface compatibility matter.
| Model | sMAX6504B-UV-U20-CXP |
|---|---|
| Sensor | GSENSE6504BSI (sCMOS) |

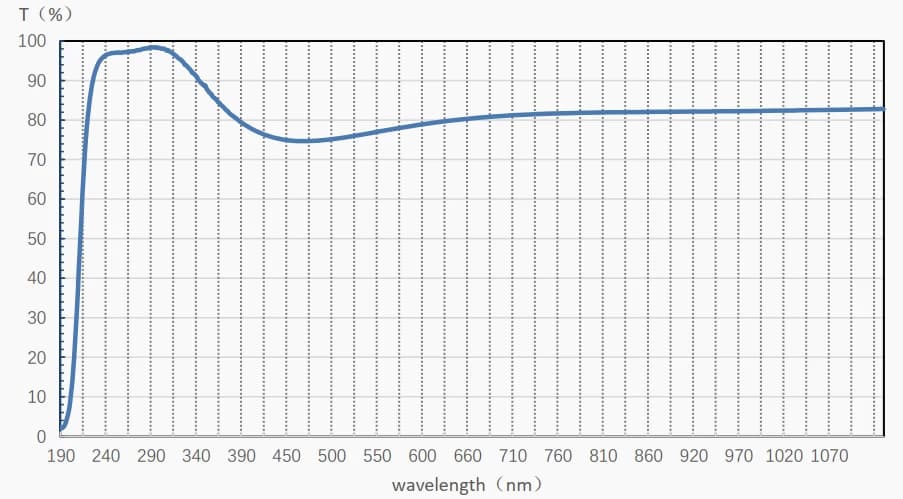

| Sensor Window | UV-grade quartz glass |
| Shutter Type | Rolling shutter / global reset |
| Color Type | Monochrome |
| Resolution | 4.2 MP (2048×2048) |
| Sensor Size | 13.31 mm × 13.31 mm |
| Sensor Diagonal | 1.2″ |
| Pixel Size | 6.5 µm × 6.5 µm |

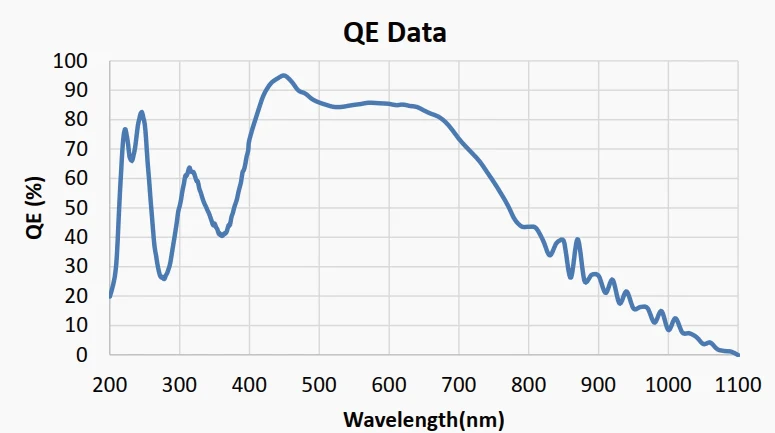

| Spectral Response Range | 200–1100 nm |
| Quantum Efficiency | 95% @ 450 nm |
| Frame Rate | CoaXPress 2.0 ×4: 298 fps @ 8-bit, 298 fps @ 12-bit, 170 fps @ 16-bit; USB3.2 Gen 2x2: 298 fps @ 8-bit, 298 fps @ 12-bit, 170 fps @ 16-bit (2048×2048) |
|---|---|
| Exposure Time | 12 µs ~ 300 s |
| Bit Depth | Mono 8 / Mono 12 / Mono 16 |
| Readout Modes | High sensitivity / high full well / balanced / high dynamic range (HDR) |
| Readout Noise | 0.74 e⁻ (high sensitivity mode); 0.72 e⁻ (HDR mode) |
| Conversion Gain | 0.26 e⁻/DN (high sensitivity mode); 0.21 e⁻/DN (HDR mode) |
| Full Well Capacity | 1.03 ke⁻ (high sensitivity mode); 13.48 ke⁻ (HDR mode) |
| Dynamic Range | 62.1 dB (high sensitivity mode); 86 dB (HDR mode) |
| Signal-to-Noise Ratio | 30.1 dB (high sensitivity mode); 41.3 dB (HDR mode) |
| Sensitivity | 9.2×10⁷ e⁻/((W/m²)·s) @ 450 nm |
| Dark Current | ≤0.05 e⁻/s/pixel @ −10 °C; ≤0.01 e⁻/s/pixel @ −20 °C |
| Cooling | TEC, 40 °C below ambient (air-cooled) / 55 °C below ambient (water-cooled); anti-fog sensor and window |
| Binning | Software 2×2 ~ 8×8; hardware 1×1, 1×2, 2×1, 2×2 |
| Onboard Memory | 1024 MB (8 Gb) |
| External Trigger | Supported via digital I/O |
| GPIO | 1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O ports |
|---|---|
| Lens Mount | C-mount |
| Data Interface | USB3.2 Gen 2x2 / CoaXPress 2.0 ×4 |
| Power Supply | 19 V / 4.74 A power adapter |
| Power Consumption | <46 W (USB3.2); CoaXPress figure not yet published |

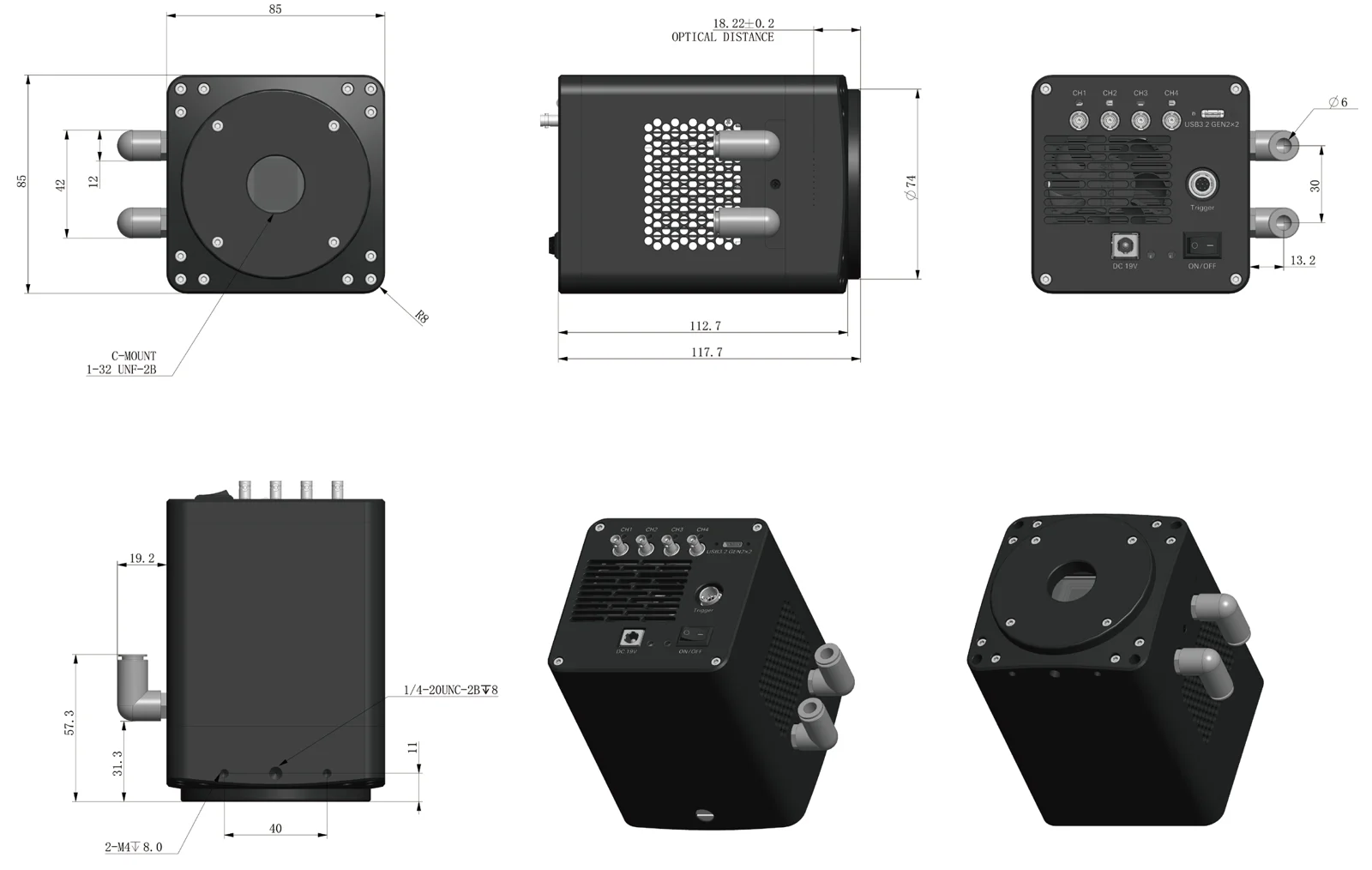

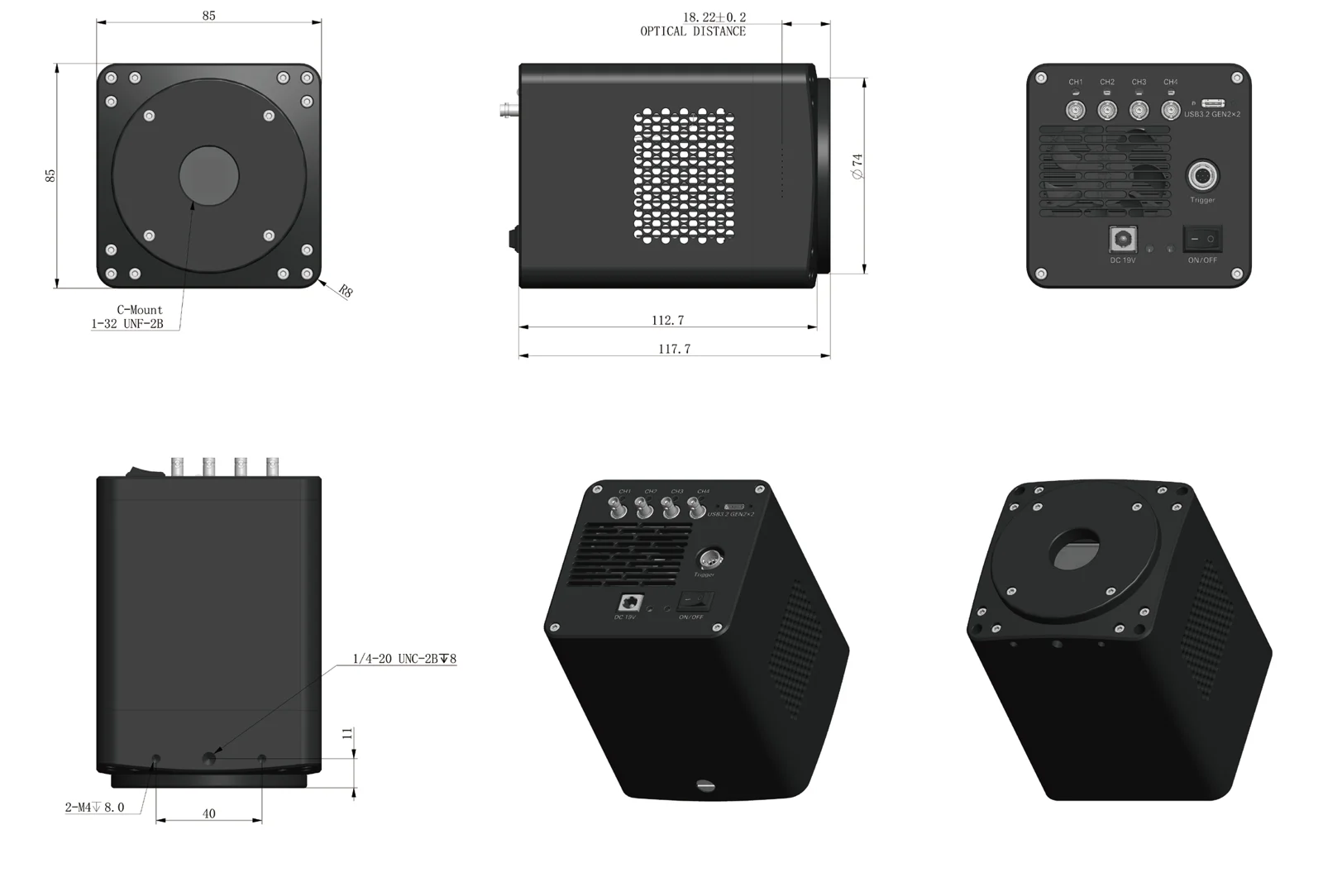

| Dimensions | 85 mm × 85 mm × 118 mm |
|---|---|
| Weight | 976 g |
| Operating Temperature | −30 °C to +60 °C |
|---|---|
| Operating Humidity | 20%–80% (non-condensing) |
| Storage Temperature | −40 °C to +85 °C |
| Software | SDK and camera control software |
|---|
Technical media
Official sensor-response, performance, and mechanical imagery for the sMAX6504B-UV-U20-CXP.
System integration
Use these checks to connect sMAX6504B-UV-U20-CXP to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: GSENSE6504BSI (sCMOS) · Resolution: 4.2 MP (2048×2048). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 298 fps @ 2048×2048 (CoaXPress 2.0 ×4 or USB3.2 Gen 2x2, 8-bit/12-bit); 170 fps @ 16-bit · Interface: USB3.2 Gen 2x2 / CoaXPress 2.0 ×4. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
External Trigger: Supported via digital I/O · GPIO: 1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O ports. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Full Well Capacity: 1.03 ke⁻ (high sensitivity mode); 13.48 ke⁻ (HDR mode) · Dynamic Range: 62.1 dB (high sensitivity mode); 86 dB (HDR mode). Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare sMAX6504B-UV-U20-CXP with the closest available models in the sMAX family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | sMAX6504B-UV-U20-CXP (current) | sMAX6504B-UV-U10-10G | sMAX6504B-VIS-U10-10G |
|---|---|---|---|
| Sensor | GSENSE6504BSI (sCMOS) | GSENSE6504BSI (sCMOS) | GSENSE6504BSI (sCMOS) |
| Resolution | 4.2 MP (2048×2048) | 4.2 MP (2048×2048) | 4.2 MP (2048×2048) |
| Sensor size | 13.31 mm × 13.31 mm | 13.31 mm × 13.31 mm | 13.31 mm × 13.31 mm |
| Pixel size / frame rate | 6.5 µm × 6.5 µm | 6.5 µm × 6.5 µm | 6.5 µm × 6.5 µm |
The GSENSE6504BSI appears in 4 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
Compare the sMAX6504B-UV-U20-CXP with other sMAX models and scientific cameras in the range.
Choosing a camera
How to tell whether this sensor is the right technology for your photon budget, and what to check before committing.

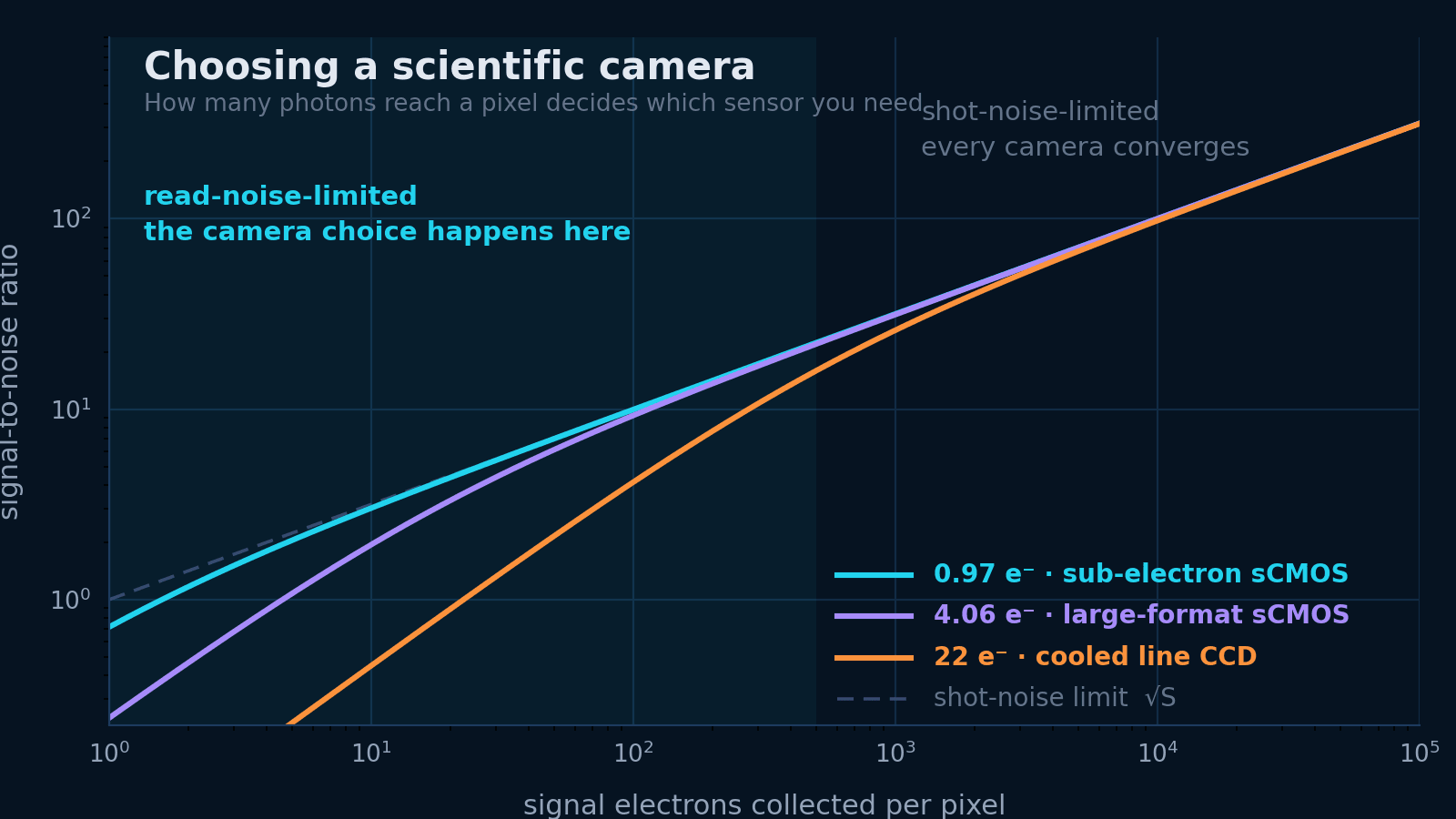

Scientific camerasWhich sensor technology your photon budget actually needs, why rolling and global shutter answer different questions, and how to check the data can leave the camera at all.
Open guide

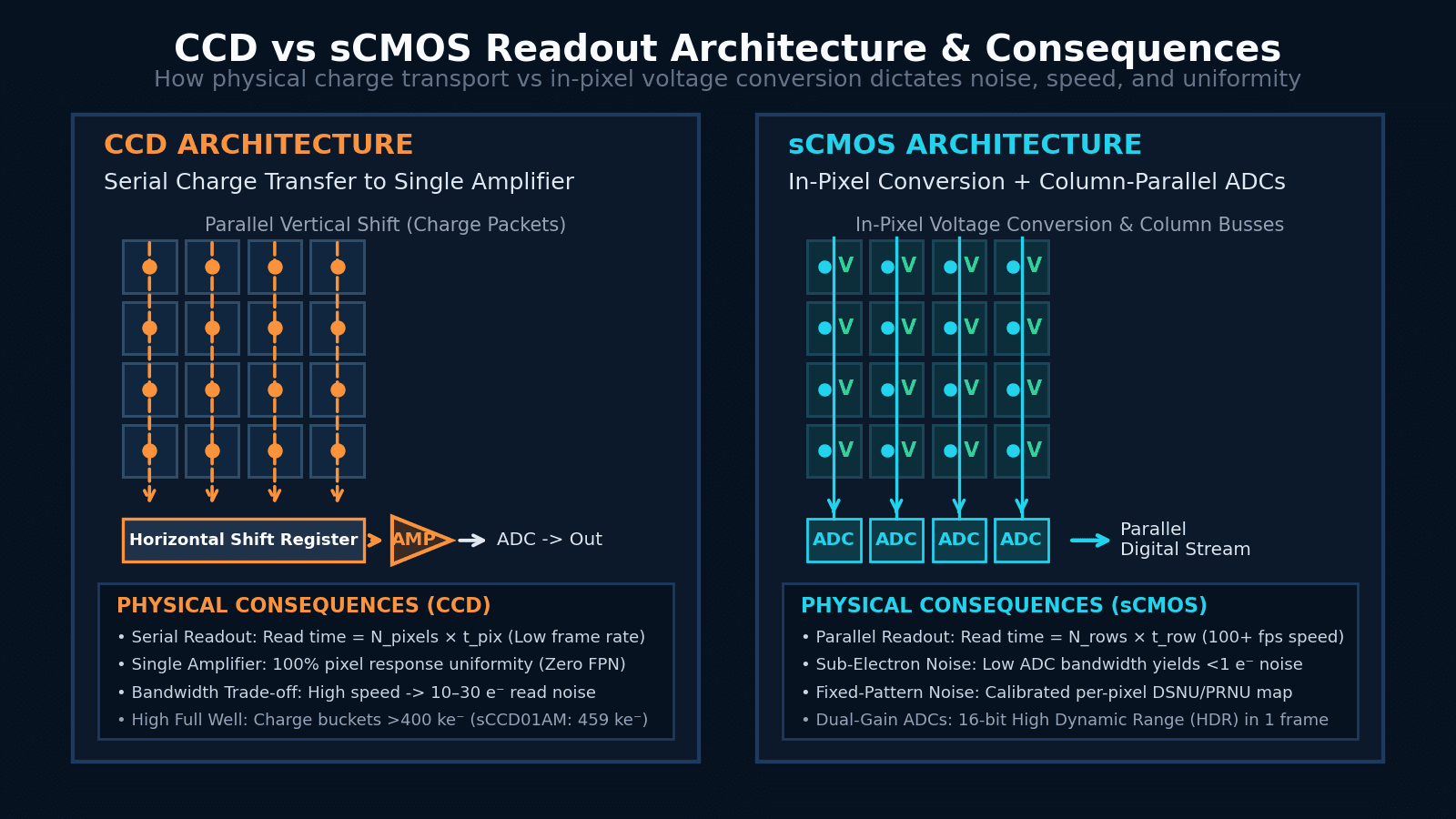

Scientific camerasHow physical charge transport versus in-pixel voltage conversion dictates readout speed, read noise, blooming, fill factor, and fixed-pattern noise in scientific detectors.
