Scientific Camera
MAX151AM-10G
MAX151AM-10G MAX Sony scientific camera combines Exmor CMOS imaging, TEC cooling, anti-condensation optics and SDK support.
- Sensor
- IMX411ALR (M, RS)
- Resolution
- 151 MP (14176×10640)
- Pixel Size
- 3.76 µm × 3.76 µm
- Frame Rate
- 6.1 fps @ 14176×10640; 6.9 fps @ 7072×5320; 20.8 fps @ 4704×3546; 61.9 fps @ 1568×1178
- Interface
- 10GigE
Specifications
MAX151AM-10G
25 specification rows
Specifications
| Model | MAX151AM-10G |
|---|---|
| Sensor | IMX411ALR (M, RS) |
| Shutter Type | Rolling Shutter |
| Color Type | Monochrome |
| Resolution | 151 MP (14176×10640) |
| Sensor Size | 60.30 mm × 47.9 mm |
| Sensor Diagonal | 4.1" (77.01 mm) |
| Pixel Size | 3.76 µm × 3.76 µm |
Performance Parameters
| Frame Rate | 6.1 fps @ 14176×10640; 6.9 fps @ 7072×5320; 20.8 fps @ 4704×3546; 61.9 fps @ 1568×1178 |
|---|---|
| Exposure Time | 150 µs ~ 3600 s |
| Bit Depth | 8/16-bit |
| Dynamic Range | 82.5 dB |
| Sensitivity | 871 mV @ 1/30 s; 0.04 mV @ 1/30 s |
Interface Parameters
| GPIO | 1× opto-isolated input, 1× opto-isolated output, 2× direct-connect GPIO |
|---|---|
| Lens Mount | M72×0.75 (native); optional M54×0.75 front adapter ring |
| Data Interface | 10GigE |
| Power Supply | DC 19 V, 4 A |
Physical Parameters

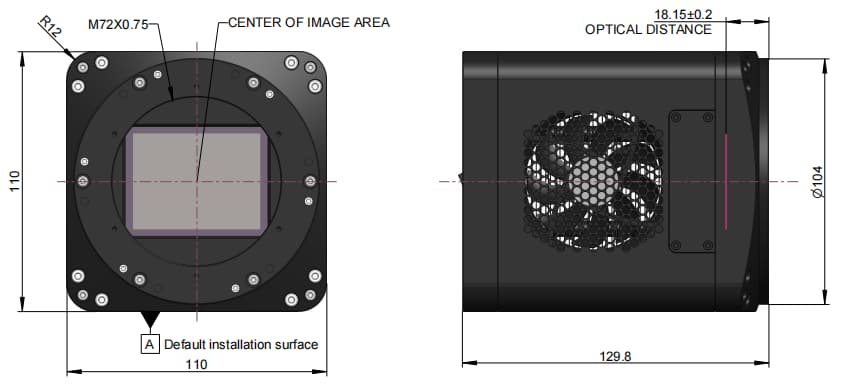

| Dimensions | 110 mm × 110 mm × 129.8 mm |
|---|---|
| Weight | 1.44 kg |
Environmental Parameters
| Operating Temperature | 10 °C to +50 °C |
|---|---|
| Operating Humidity | 30%–80% RH (non-condensing) |
| Storage Temperature | 20 °C to +60 °C |
| Storage Humidity | 10%–60% RH (non-condensing) |
Other Parameters
| OS Support | Multi-platform SDK for Windows/Linux/macOS/Android (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) |
|---|---|
| Certification | Available on request |
