Scientific Camera

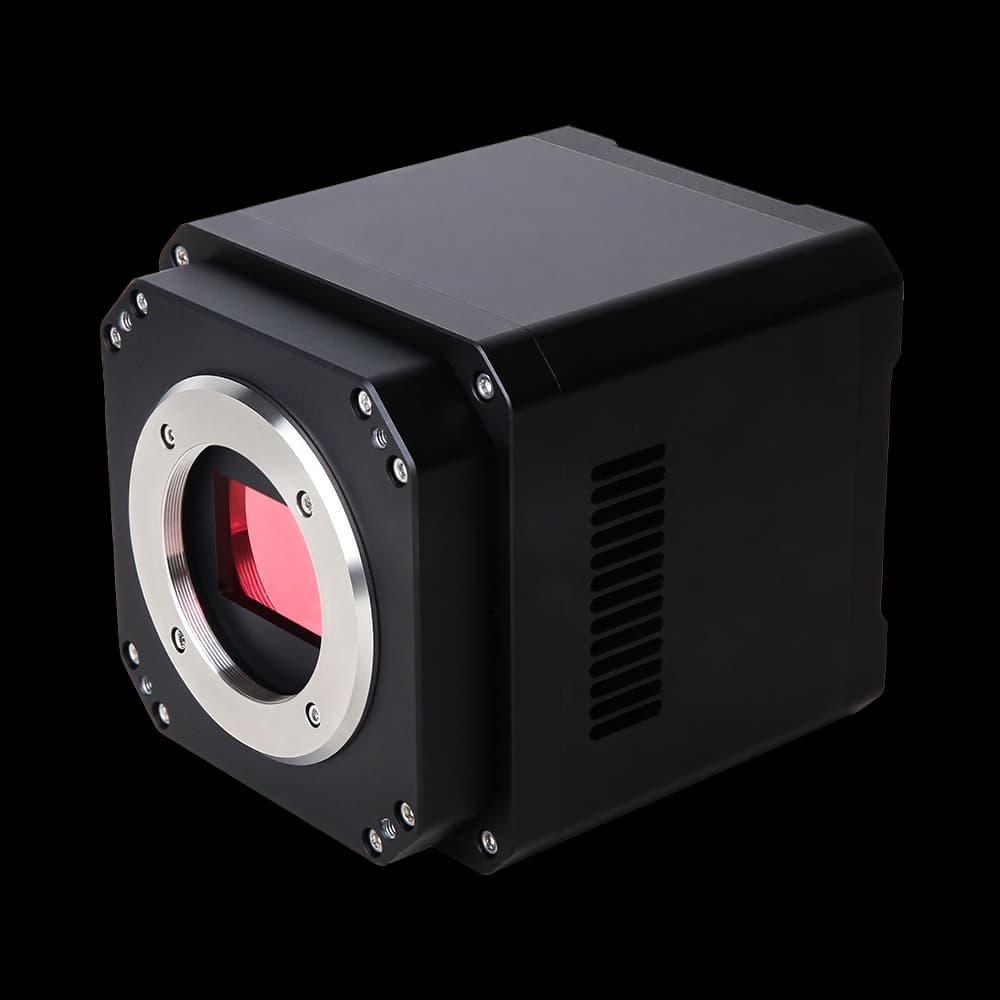

MAX04BM Scientific Camera with GSENSE2020BSI (M, UV, RS) sensor, 4.2 MP (2048×2048) for professional imaging.
Application context
MAX04BM: The GSENSE2020BSI (M, UV, RS) sensor, 4.2 MP (2048×2048) resolution, and 6.5 µm × 6.5 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 45 fps @ 2048×2048; 45 fps @ 1024×1024 frame-rate listing also sets the fastest full-frame acquisition regime.
MAX04BM: The GSENSE2020BSI (M, UV, RS) sensor, 4.2 MP (2048×2048) resolution, and 6.5 µm × 6.5 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 45 fps @ 2048×2048; 45 fps @ 1024×1024 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
24 specification rows
The MAX04BM is a scientific camera in the MAX GSENSE series, built around a GSENSE2020BSI (M, UV, RS) sensor, 4.2 MP (2048×2048) resolution, 6.5 µm × 6.5 µm pixels, frame rates up to 45 fps @ 2048×2048; 45 fps @ 1024×1024, a USB3.0 interface. It suits scientific camera where reliable imaging performance and interface compatibility matter.

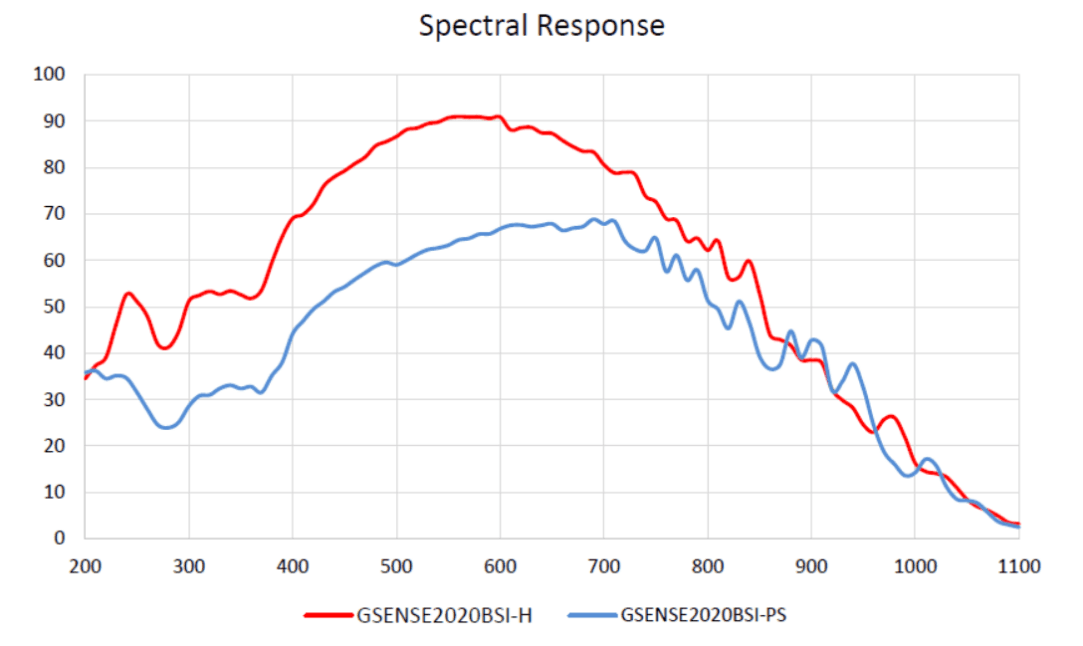

| Model | MAX04BM |
|---|---|
| Sensor | GSENSE2020BSI (M, UV, RS) |
| Shutter Type | Rolling Shutter |
| Color Type | Monochrome |
| Resolution | 4.2 MP (2048×2048) |
| Sensor Size | 13.31 mm × 13.31 mm |
| Sensor Diagonal | 4/3" (18.82 mm) |
| Pixel Size | 6.5 µm × 6.5 µm |
| Frame Rate | 45 fps @ 2048×2048; 45 fps @ 1024×1024 |
|---|---|
| Bit Depth | 8-bit/HDR 16-bit |
| Dynamic Range | 79.1 dB |
| Sensitivity | 1.1×10^8 (e-/((W/m^2)·s)); Peak QE 93.7% @ 550 nm; 0.15 (e-/s/pix) @ -15 °C |
| GPIO | 1× opto-isolated input, 1× opto-isolated output, 2× direct GPIO |
|---|---|
| Lens Mount | C-mount (native); optional M42×1 adapter |
| Data Interface | USB3.0 |
| Power Supply | DC 19 V, 4 A |
| Dimensions | Available on request |
|---|---|
| Weight | Available on request |
| Operating Temperature | 10 °C to +50 °C |
|---|---|
| Operating Humidity | 30% to 80% RH (non-condensing) |
| Storage Temperature | 20 °C to +60 °C |
| Storage Humidity | 10% to 60% RH (non-condensing) |
| Operating System | Multi-platform SDK for Windows/Linux/macOS/Android (native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) |
|---|---|
| Certifications | Available on request |
System integration
Use these checks to connect MAX04BM to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount (native); optional M42×1 adapter. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: GSENSE2020BSI (M, UV, RS) · Resolution: 4.2 MP (2048×2048). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 45 fps @ 2048×2048; 45 fps @ 1024×1024 · Interface: USB3.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: 1× opto-isolated input, 1× opto-isolated output, 2× direct GPIO. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: 79.1 dB. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare MAX04BM with the closest available models in the MAX GSENSE family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | MAX04BM (current) | MAX04AM | MAX04CM |
|---|---|---|---|
| Sensor | GSENSE2020BSI (M, UV, RS) | GSENSE2020e (M, NIR, RS) | GSENSE400BSI (M, UV, RS) |
| Resolution | 4.2 MP (2048×2048) | 4.2 MP (2048×2048) | 4.2 MP (2048×2048) |
| Sensor size | 13.31 mm × 13.31 mm | 13.31 mm × 13.31 mm | 22.53 mm × 22.53 mm |
| Pixel size / frame rate | 6.5 µm × 6.5 µm | 6.5 µm × 6.5 µm | 11 µm × 11 µm |
The GSENSE2020BSI appears in 10 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
Compare the MAX04BM with other MAX GSENSE models and scientific cameras in the range.
