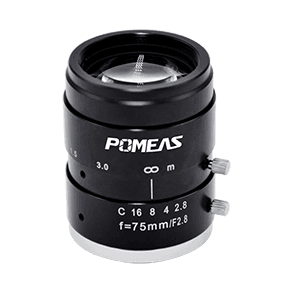

PMS-75MC — 75 mm FA lens
PMS-75MC 75 mm fa lens in the 1.5 MP · 2/3-inch FA lenses range. Focal length 75 mm; iris range F2.8-C. Focus range 1.10m-∞.
- Focal Length
- 75 mm
- Iris Range
- F2.8-C
- Sensor Format
- 2/3"
- Image Circle
- φ11mm
- Lens Mount
- C-mount
- Focus Range
- 1.10m-∞
Complete specifications
| Sensor Format | 2/3" |
|---|---|
| Sensor Dimensions | 8.8mm×6.6mm |
| Image Circle | φ11mm |
| Focal Length | 75 mm |
| Iris Range | F2.8-C |
| Focus Range | 1.10m-∞ |
| Distortion | 0.34%@y = 5.5mm |
| Back Focal Length | 14.35mm |
| Lens Mount | C-mount |
| Filter Thread | M30.5×0.5mm |
| Field of View (D×H×V) — 2/3" | 6.7°×5.0° |
| Resolution Rating | 1.5 MP |

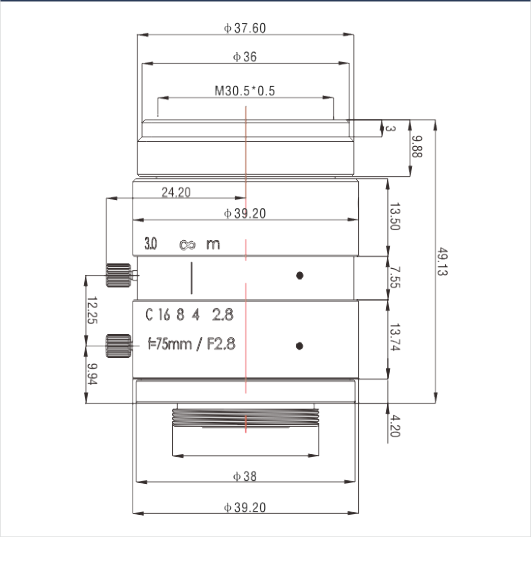

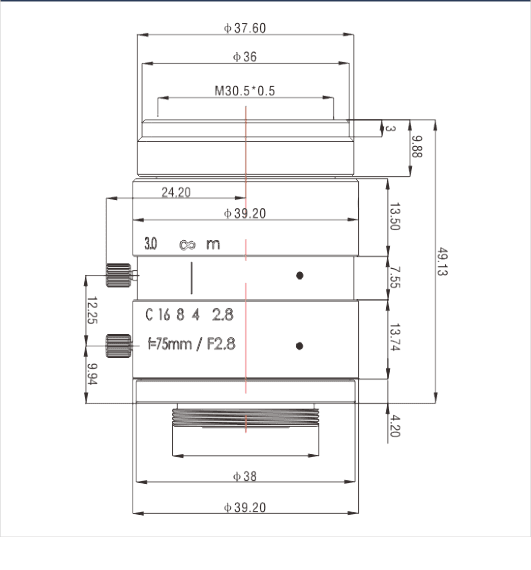

Technical drawings
