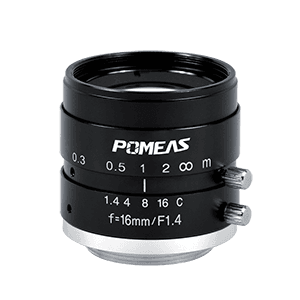

PMS-16MC — 16.33 mm FA lens
PMS-16MC 16.33 mm fa lens in the 1.5 MP · 2/3-inch FA lenses range. Focal length 16.33mm; iris range F1.4-C. Focus range 0.30m-∞.
- Focal Length
- 16.33mm
- Iris Range
- F1.4-C
- Sensor Format
- 2/3"
- Image Circle
- φ11mm
- Lens Mount
- C-mount
- Focus Range
- 0.30m-∞
Complete specifications
| Sensor Format | 2/3" |
|---|---|
| Sensor Dimensions | 8.8mm×6.6mm |
| Image Circle | φ11mm |
| Focal Length | 16.33mm |
| Iris Range | F1.4-C |
| Focus Range | 0.30m-∞ |
| Distortion | -1.00%@y = 5.5mm |
| Back Focal Length | 12.67mm |
| Lens Mount | C-mount |
| Filter Thread | M30.5×0.5mm |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Field of View (D×H×V) — 2/3" | 40°×30.2° |
| Resolution Rating | 1.5 MP |

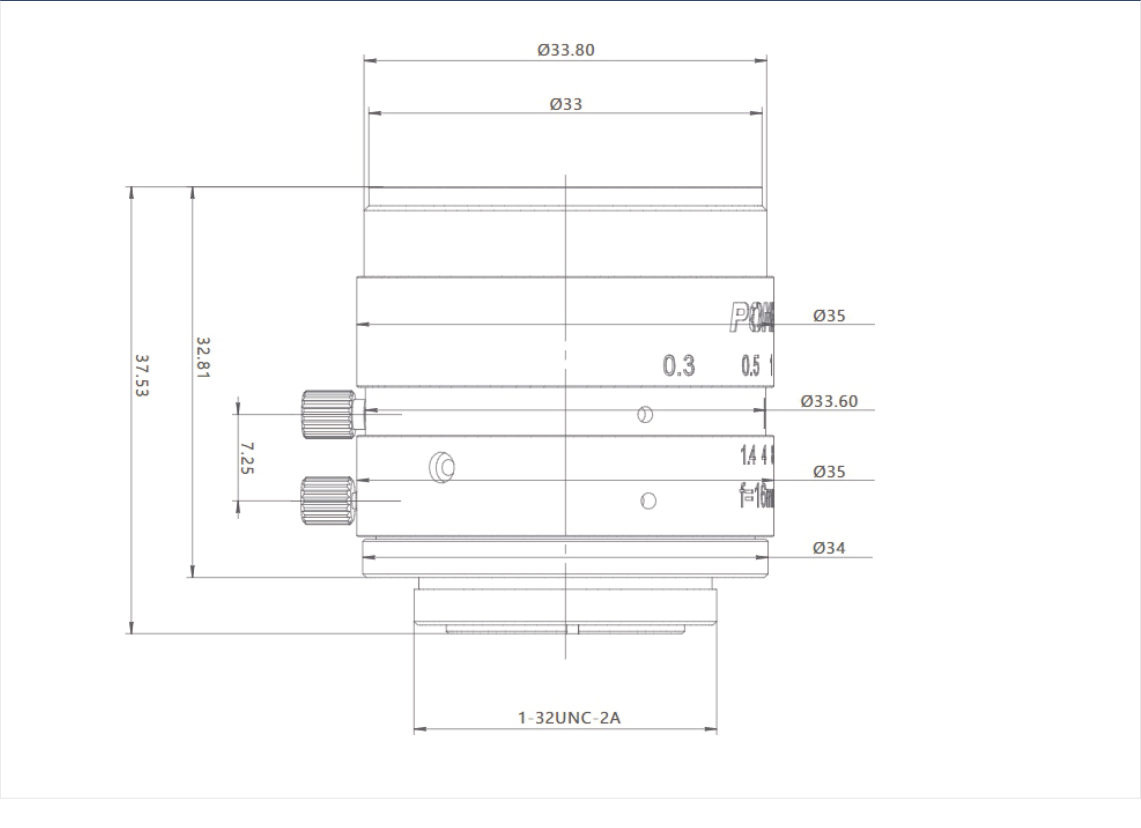

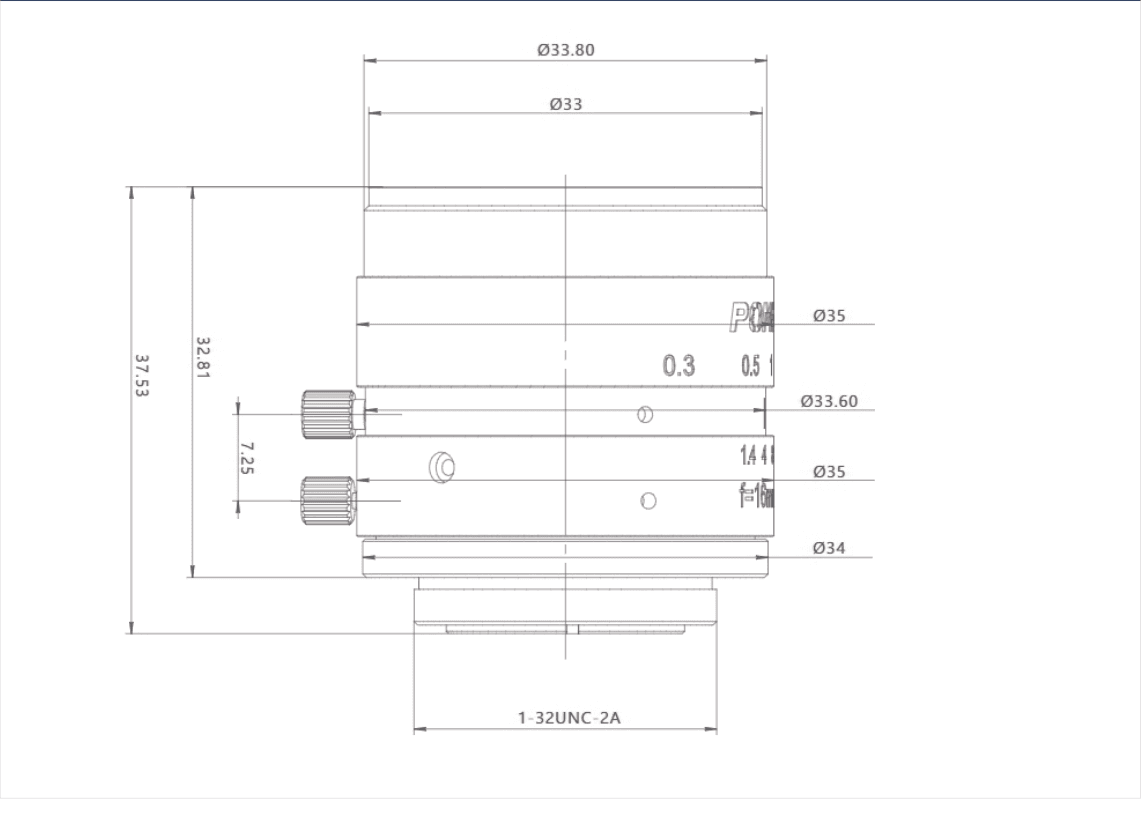

Technical drawings
