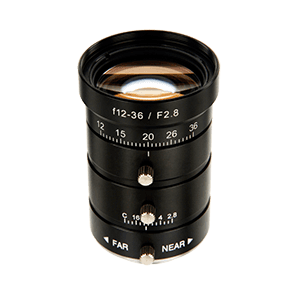

PMS-1236MC — 12-36 mm FA lens
PMS-1236MC 12-36 mm fa lens in the 1.5 MP · 2/3-inch FA lenses range. Focal length 12-36 mm; iris range F2.8- C. Focus range 0.15m-∞(wide) 0.15m-∞(tele).
- Focal Length
- 12-36 mm
- Iris Range
- F2.8- C
- Sensor Format
- 2/3"
- Image Circle
- φ11mm
- Lens Mount
- C-mount
- Focus Range
- 0.15m-∞(wide) 0.15m-∞(tele)
Complete specifications
| Sensor Format | 2/3" |
|---|---|
| Sensor Dimensions | 8.8mm×6.6mm |
| Image Circle | φ11mm |
| Focal Length | 12-36 mm |
| Iris Range | F2.8- C |
| Focus Range | 0.15m-∞(wide) 0.15m-∞(tele) |
| Distortion | 3.5%@y = 5.5mm(wide) 2.3%@y = 5.5mm(tele); 2.4%@y =3.0mm(wide) 1.3%@y = 3.0mm(tele) |
| Back Focal Length | 12.6mm(wide) 15.2mm(tele) |
| Lens Mount | C-mount |
| Filter Thread | M40.5×0.5mm |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Field of View (D×H×V) — 2/3" | 41.2°×31.2°(wide); 13.8°×10.4°(tele) |
| Field of View (D×H×V) — 1/2" | 30.1°×22.8°(wide); 10.1°×7.6°(tele) |
| Resolution Rating | 1.5 MP |

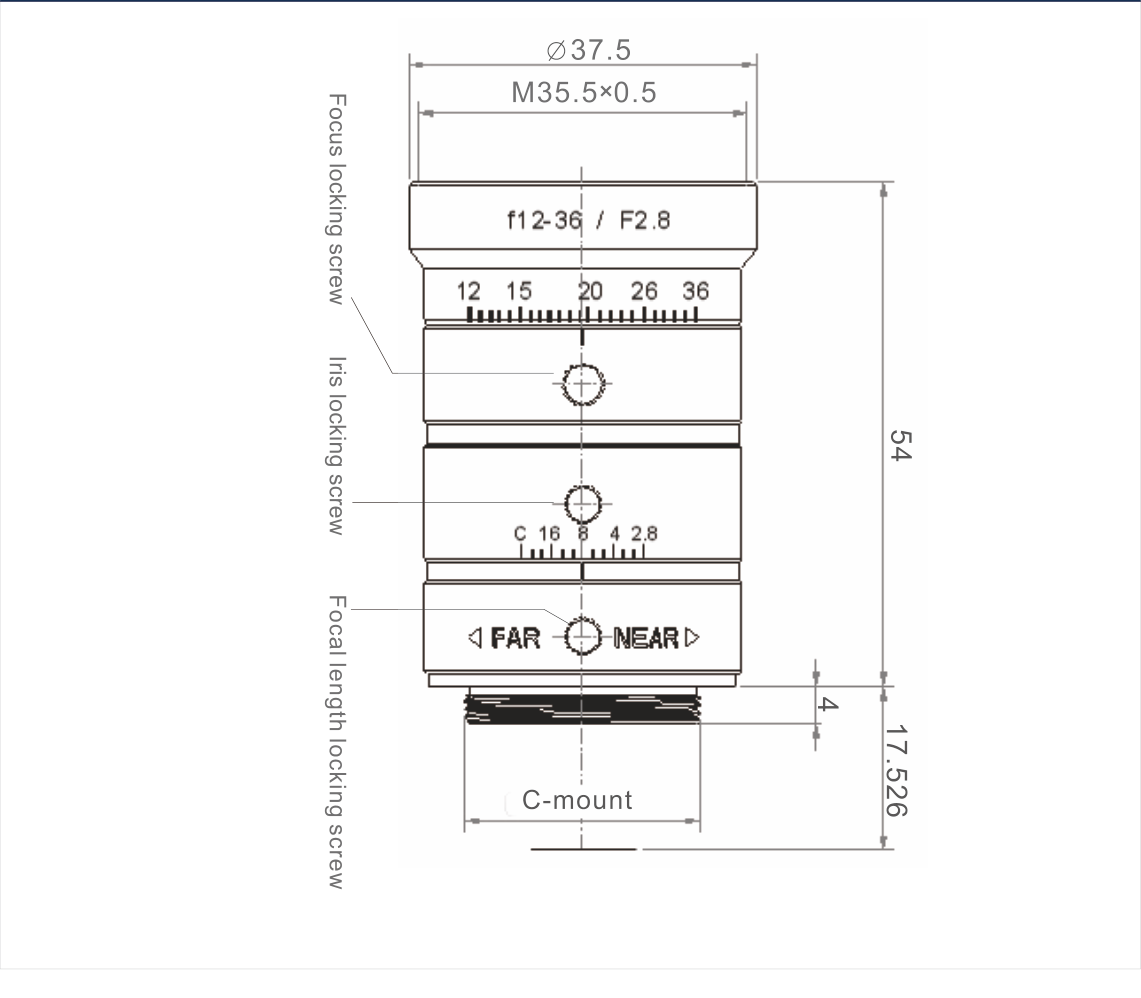

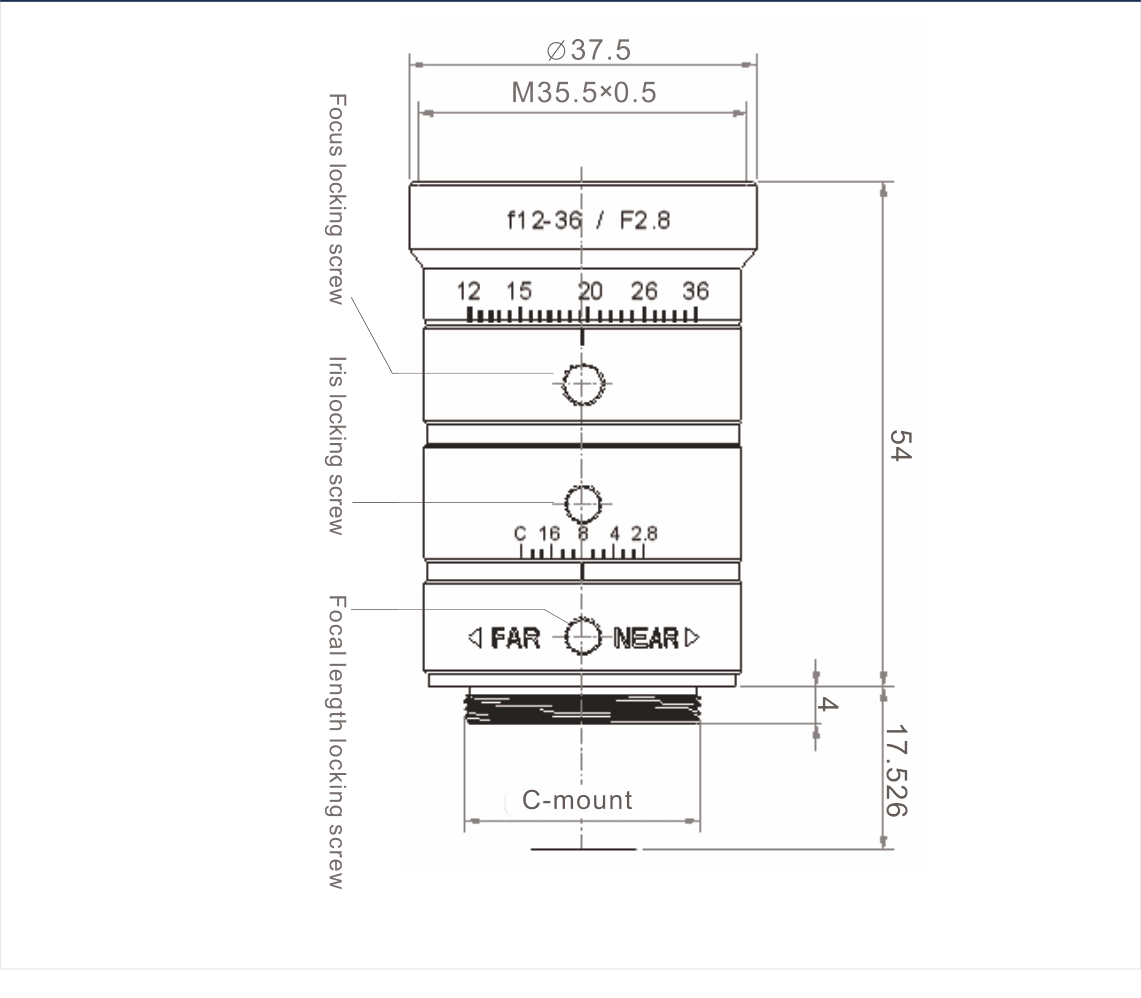

Technical drawings
