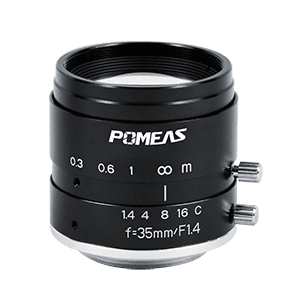

PMS-35MC — 35 mm FA lens
PMS-35MC 35 mm fa lens in the 1.5 MP · 2/3-inch FA lenses range. Focal length 35 mm; iris range F1.4-C. Focus range 0.30m-∞.
- Focal Length
- 35 mm
- Iris Range
- F1.4-C
- Sensor Format
- 2/3"
- Image Circle
- φ11mm
- Lens Mount
- C-mount
- Focus Range
- 0.30m-∞
Complete specifications
| Sensor Format | 2/3" |
|---|---|
| Sensor Dimensions | 8.8mm×6.6mm |
| Image Circle | φ11mm |
| Focal Length | 35 mm |
| Iris Range | F1.4-C |
| Focus Range | 0.30m-∞ |
| Distortion | -0.33%@y = 5.5mm |
| Back Focal Length | 14.7mm |
| Lens Mount | C-mount |
| Filter Thread | M30.5×0.5mm |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Field of View (D×H×V) — 2/3" | 13.8°×10.4° |
| Resolution Rating | 1.5 MP |

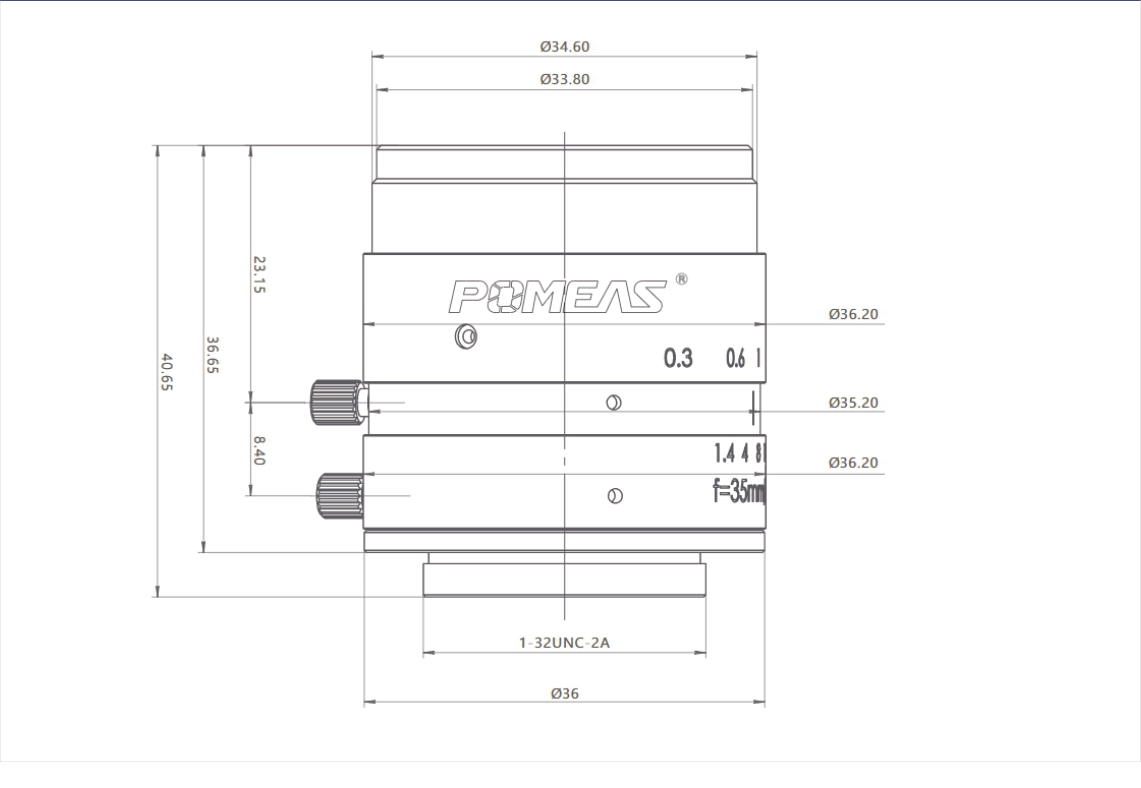

Technical drawings
