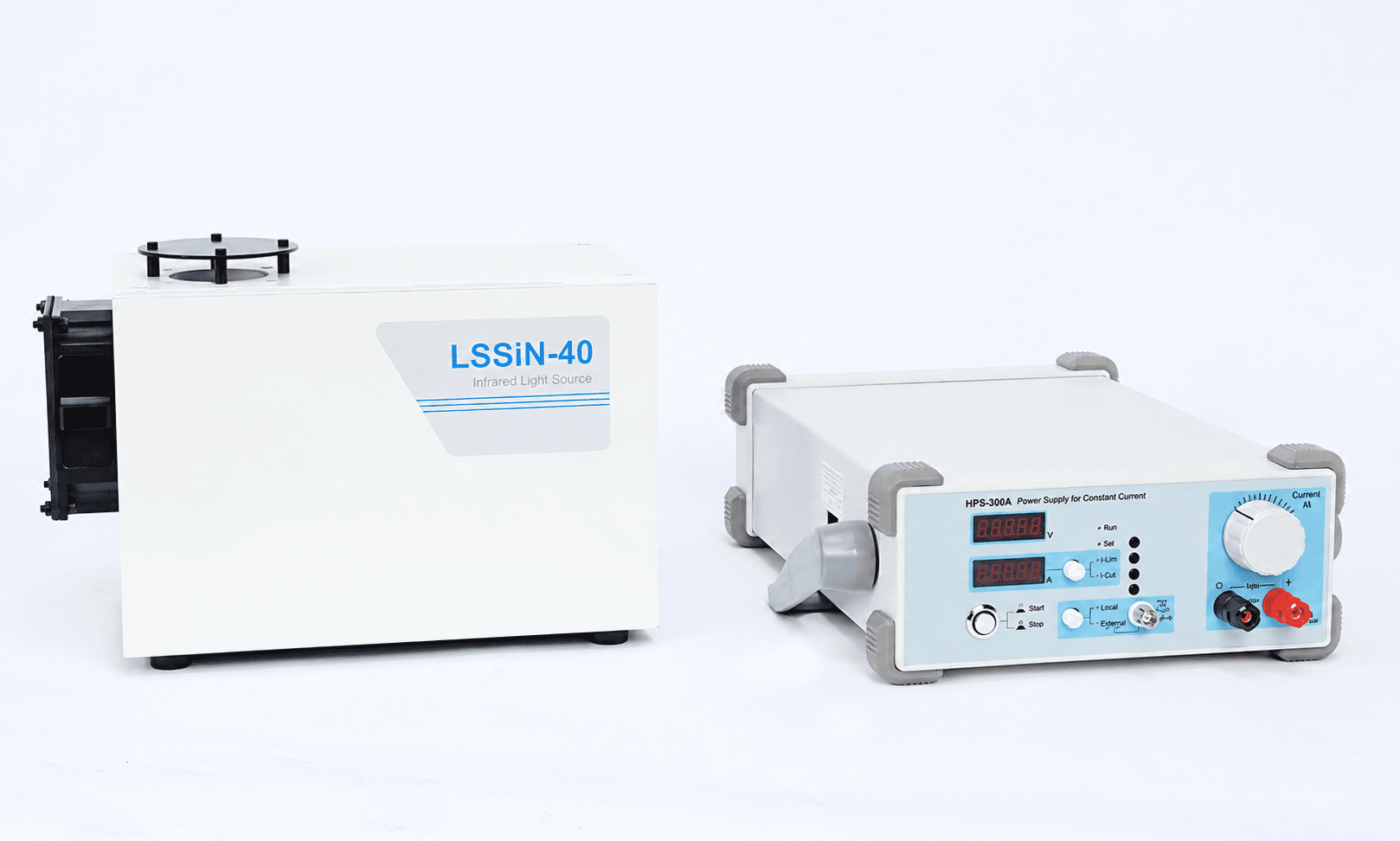

Silicon Nitride Infrared Source
A thermal infrared emitter with gold-coated collection optics and a DC supply. The source provides a broad infrared spectrum without water cooling for infrared illumination and monochromator systems.
Best suited to
Broadband infrared spectroscopy and thermal-source illumination.
Selecting a configuration
Match the collection optics, filters and detector to the usable infrared band. The emitter range is broader than the range delivered by a configured monochromator system.
Measurement & configuration
- Gold-coated reflector with published reflectance above 96%.
- f/4 collection geometry and adjustable source height.
- No water cooling required.
Plan the signal path
- 1SiN thermal emitter
- 2Infrared collection optics
- 3Infrared experiment
Specifications
| Published spectral range | 1–14 µm |
|---|---|
| Emitter power | ≥40 W |
| Emitter operating point | 8 V / 6 A |
| Emitter area | 4 × 15 mm |
| Emitter temperature | 900–1200 °C |
| Nominal emitter life | ≥2000 h |
| Output stability | Better than 2% |
| Optical-axis height | 128–168 mm |
Configuration note: The wider 1–16 µm parenthetical range is not treated as a guaranteed configured output. Detector response and optical transmission must be specified separately.
