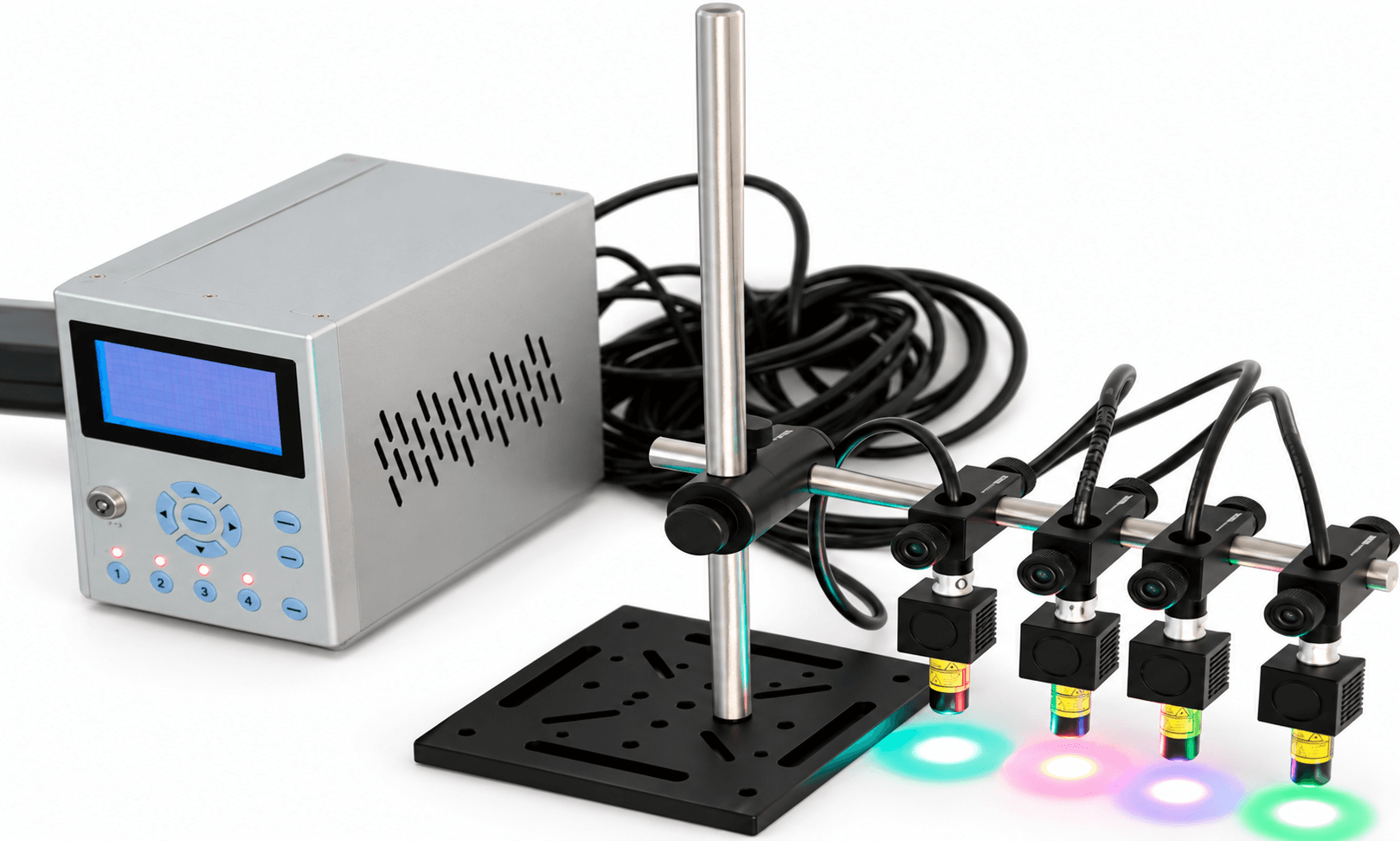

Multiwavelength LED Source System
Modular LED heads spanning UV, visible and near-infrared wavelengths, with controller options for manual illumination or programmed multi-channel operation. Select heads and drive current around the required wavelength and optical power.
Best suited to
Discrete-wavelength excitation, fluorescence and repeatable LED illumination experiments.
Selecting a configuration
Choose the LED wavelength and rated current first, then the controller functions. The MLED4S timing features and interfaces should not be assumed for the simpler MLED-CONTROLLER-X.
Measurement & configuration
- 24 nominal wavelengths from 290 to 1030 nm.
- MLED4S: four channels, 1 kHz PWM, timers and programmed sequences.
- MLED-POST1 to POST4 mounting options for source-head arrangements.
Plan the signal path
- 1Controller & LED head
- 2Collimation / sample geometry
- 3Selected-wavelength illumination
Specifications
| Available wavelengths (nm) | 290, 310, 365, 395, 405, 425, 450, 470, 515, 530, 550, 590, 610, 635, 660, 690, 735, 760, 808, 850, 880, 940, 980, 1030 |
|---|---|
| Nominal spot diameter | 10 mm |
| Wavelength tolerance | ±10 nm |
| Published output stability | ±1%; 290 nm head: 2% |
| MLED-CONTROLLER-X | Manual / USB control |
| MLED4S interfaces | Touch panel, foot switch, external control, RS-485 |
Selected LED-head operating points
| Head | Optical power | Drive current |
|---|---|---|
| M365L | >420 mW | 700 mA |
| M405L | >400 mW | 700 mA |
| M450L | >320 mW | 700 mA |
| M808L | >80 mW | 350 mA |
Examples only; power is wavelength and head dependent. The 290 and 310 nm heads have much lower published power than these examples.
Configure MLED / MLED4S / MxxxL
Send the wavelength interval, signal level, timing and sample requirements for your experiment.
