Sunshine High-Sensitivity Fibre-Optic Spectrometer
A 2048-pixel spectrometer with 14 µm square pixels and up to 80 % quantum efficiency, for weak signals — Raman, fluorescence and LIBS — where the Aurora’s narrow 8 µm pixels would starve. Raman-specific ranges are available for 532 nm and 785 nm excitation.
80 %
Quantum efficiency, up to
200–1100 nm
Detector range
~450:1
Signal-to-noise
1000 g
Weight
Features
- Up to 80 % quantum efficiency
- Wavelength range and resolution customised to the application
- Dedicated Raman ranges for 532 nm and 785 nm excitation
- Strobe functions and external-trigger (TG) versions
- Spectral Analysis 5.0 software included
Applications
- Laser spectral analysis
- Fluorescence spectral analysis
- Raman spectral analysis
- Reflectivity and transmittance measurement
- LIBS spectral analysis
- Textile industry
- Chemical analysis
- Medical diagnosis and detection
- Film-thickness measurement
Available Models
Ordering Options
Sunshine GE 200-1100
General series, 200–1100 nm
Sunshine GE 350-1100
General series, 350–1100 nm
Sunshine GE-Raman 532-700
General series, Raman range 532–700 nm
Sunshine GE-Raman 785-1100
General series, Raman range 785–1100 nm
Sunshine-UV-Pro
185–240 nm (new)
Sunshine-IR-Pro
1000–1550 nm (new)
Sunshine TG 200-1100
External-triggering series, 200–1100 nm; EX-TA / EX-TB box optional
Sunshine TG-Raman 532-700
External-triggering series, 532–700 nm
Sunshine TG-Raman 785-1100
External-triggering series, 785–1100 nm
Optical resolution by wavelength range and entrance aperture
Typical configurations; resolution in nm (FWHM).
| Wavelength range | 10 µm | 25 µm | 50 µm | 100 µm | 200 µm |
|---|---|---|---|---|---|
| 200–1100 nm | 0.87 | 1.09 | 1.84 | 3.51 | 6.72 |
| 350–1100 nm | 0.87 | 1.09 | 1.84 | 3.51 | 6.72 |
| 300–515 nm | 0.20 | 0.26 | 0.44 | 0.83 | 1.60 |
| 400–837 nm | 0.42 | 0.53 | 0.89 | 1.70 | 3.36 |
| 785–1100 nm | 0.42 | 0.53 | 0.89 | 1.70 | 3.26 |
Technical Specifications
Sunshine Specifications
Detector
| Wavelength range | 200–1100 nm |
|---|---|
| Pixels | 2048 |
| Pixel size | 14 µm × 14 µm |
| Quantum efficiency | Up to 80 % |
Spectrometer
| Optical resolution | Depends on grating groove density and slit size; many options |
|---|---|
| Signal-to-noise ratio | ~450:1 |
| Integration time | 17 ms – 10 s |

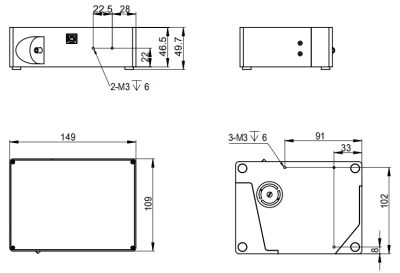

| Dimensions | 149 × 109 × 49.7 mm |
| Weight | 1000 g |
Electronics
| Power consumption | 450 mA at 5 V DC |
|---|---|
| Data transfer | Full scan into memory every 4 ms over USB 2.0 (every 18 ms over USB 1.1) |
| Connector | 30-pin connector |
| Strobe functions | Yes |
Final specifications depend on the configured wavelength range, entrance aperture and grating. We confirm the configuration before quotation.
Figures
Drawings, Photos and Measured Data
Datasheets
Full specification sheets for the Sunshine.
