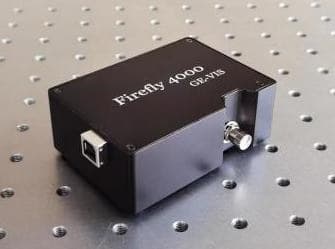

Firefly 4000 Compact Fibre-Optic Spectrometer
The same 3648-pixel linear CCD as the Aurora 4000 in a 170 g housing that fits in a hand. The spectral window is limited to a 650 nm span within 200–1100 nm, with 1.0 nm resolution or better.
170 g
Weight
89 × 64 × 32 mm
Footprint
< 1.0 nm
Resolution
3648 px
Linear CCD
Features
- Small and easy to carry
- Convenient plug-and-play operation over USB
- Wavelength range and resolution customised to the application
- Spectral Analysis 5.0 software included
Applications
- Laser spectral analysis
- Fluorescence spectral analysis
- LIBS spectral analysis
- Absorbance measurement
- Reflectivity and transmittance measurement
- Food and agriculture
- Chemical and biological research
- Environmental sciences
- Film-thickness measurement
Available Models
Ordering Options
Firefly GE 350-1000
General series, 350–1000 nm
Firefly GE 300-580
General series, 300–580 nm
Firefly GE 200-850
General series, 200–850 nm
Optical resolution by wavelength range and entrance aperture
Typical configurations; resolution in nm (FWHM).
| Wavelength range | 10 µm | 25 µm | 50 µm | 100 µm | 200 µm |
|---|---|---|---|---|---|
| 200–850 nm | 1.01 | 1.33 | 2.07 | 3.74 | 7.48 |
| 300–580 nm | 0.47 | 0.62 | 0.95 | 1.73 | 3.45 |
| 350–1000 nm | 1.01 | 1.33 | 2.07 | 3.74 | 7.48 |
Technical Specifications
Firefly 4000 Specifications
Detector
| Detector | Toshiba TCD1304DG linear CCD array |
|---|---|
| Wavelength range | 200–1100 nm to order, maximum 650 nm span |
| Pixels | 3648 |
| Pixel size | 8 µm × 200 µm |
Spectrometer
| Optical resolution | < 1.0 nm |
|---|---|
| Signal-to-noise ratio | 300:1 at full signal |
| Dynamic range | 2 × 10⁹ (system) |
| Integration time | 4 ms – 10 s |

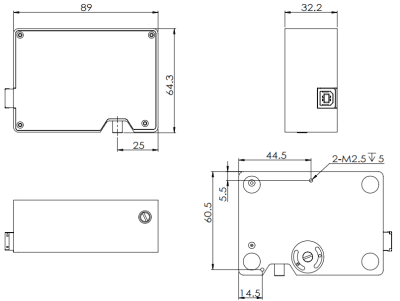

| Dimensions | 89 × 63.9 × 36.2 mm (spec table); drawing shows 89 × 64.3 × 32.2 mm |
| Weight | 170 g |
Electronics
| Power consumption | 450 mA at 5 V DC |
|---|---|
| Data transfer | Full scan into memory every 4 ms over USB 2.0 (every 18 ms over USB 1.1) |
| Connector | 30-pin connector |
| Strobe functions | Yes |
Final specifications depend on the configured wavelength range, entrance aperture and grating. We confirm the configuration before quotation.
