Precisometer
OTSB4560-13

Opto-Mechanics · OTSB Series Solid Aluminum Optical Breadboards, 13mm Thickness

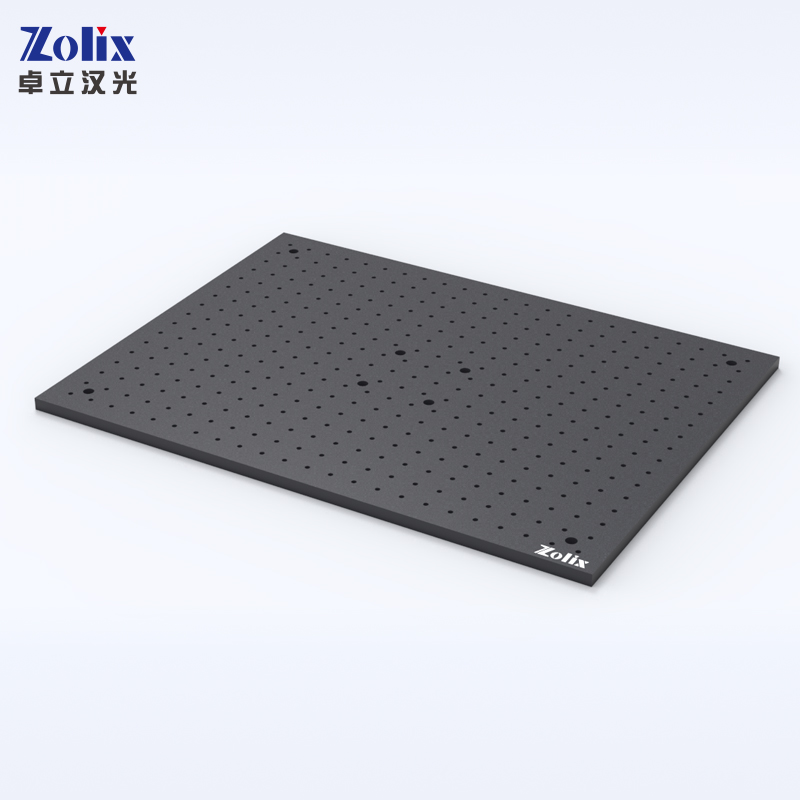

OTSB4560-13

Solid Aluminum Optical Breadboards | 450×600×13mm

View quote list
Datasheet (PDF) ↗

Specifications

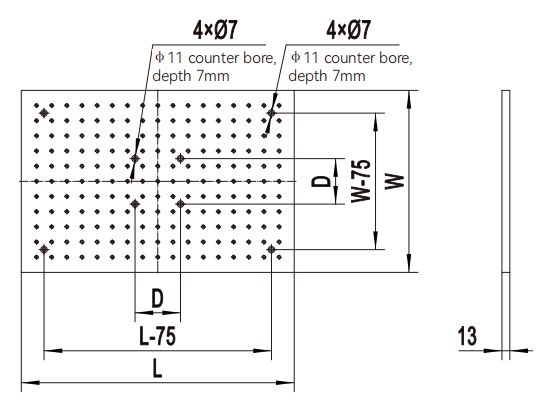

Size（mm）600×450×13
L600
W450
D75

Applications

Subsystem prototyping

Build and align a module off-line, then bolt the finished assembly onto the main table.

Portable and field setups

Carry a complete optical arrangement between labs without realigning it on arrival.

Extending an existing table

Add tapped, flat working surface where the main table has run out of room.

Related products

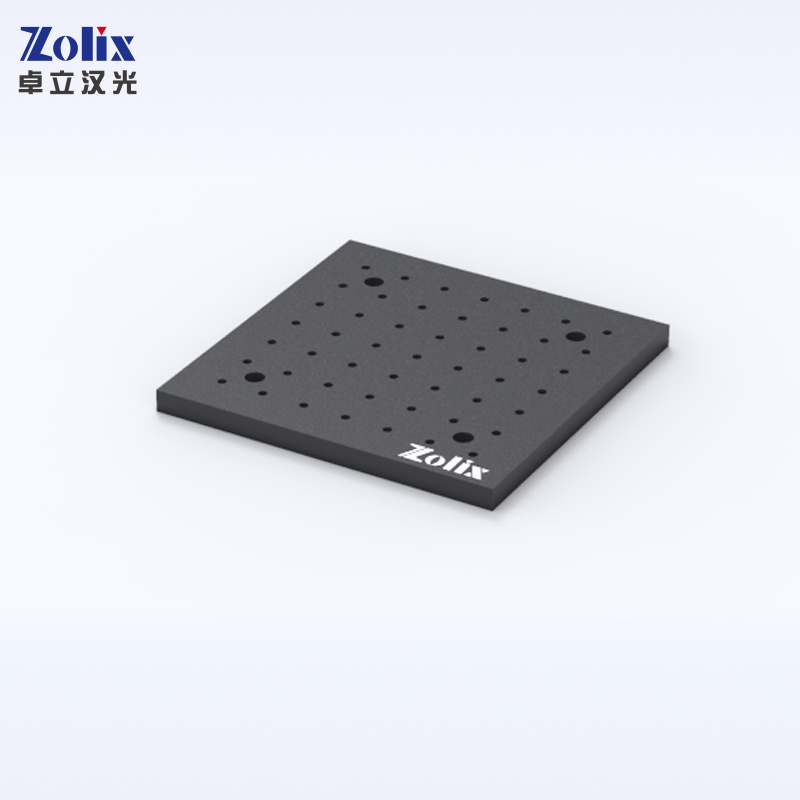

OTSB2020-13

Solid Aluminum Optical Breadboards | 200×200×13mm

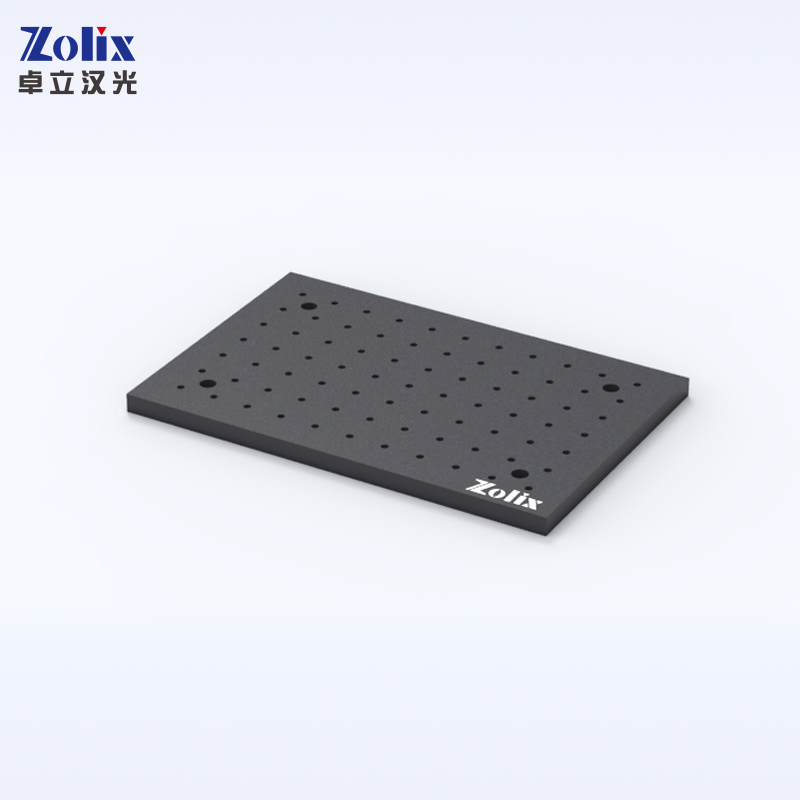

OTSB2030-13

Solid Aluminum Optical Breadboards | 200×300×13mm

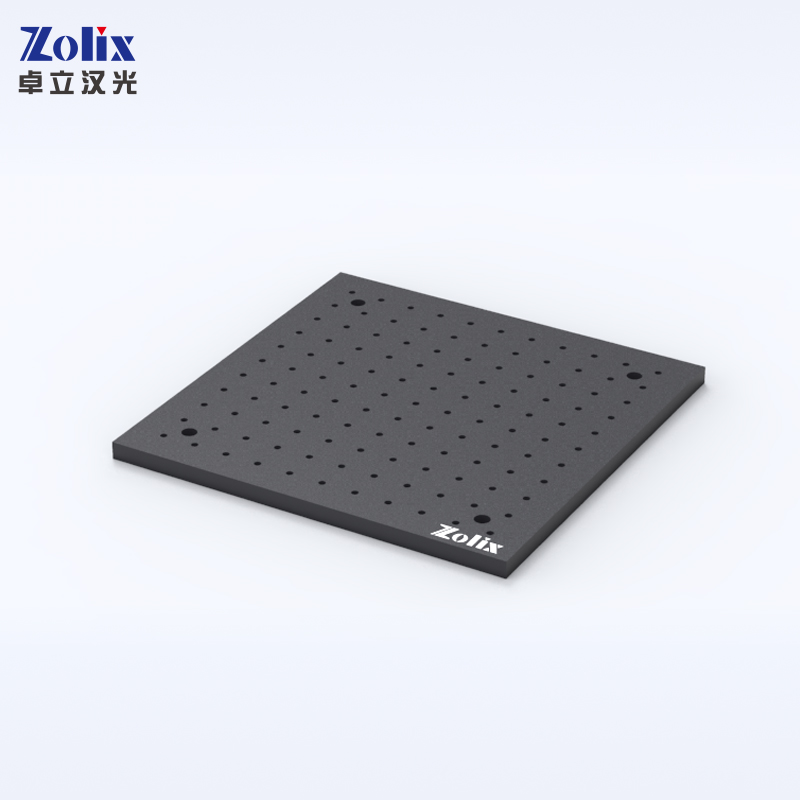

OTSB3030-13
