Precisometer
OTSB3045-13

Opto-Mechanics · OTSB Series Solid Aluminum Optical Breadboards, 13mm Thickness

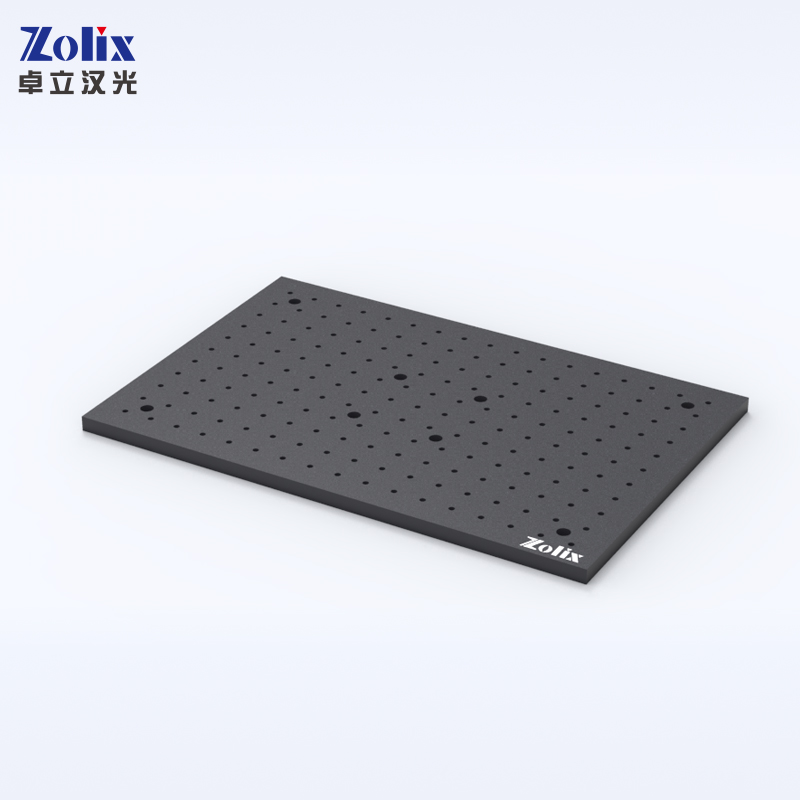

OTSB3045-13

Solid Aluminum Optical Breadboards | 300×450×13mm

View quote list
Datasheet (PDF) ↗

Specifications

Size（mm）450×300×13
L450
W300
D75

Applications

Subsystem prototyping

Build and align a module off-line, then bolt the finished assembly onto the main table.

Portable and field setups

Carry a complete optical arrangement between labs without realigning it on arrival.

Extending an existing table

Add tapped, flat working surface where the main table has run out of room.
