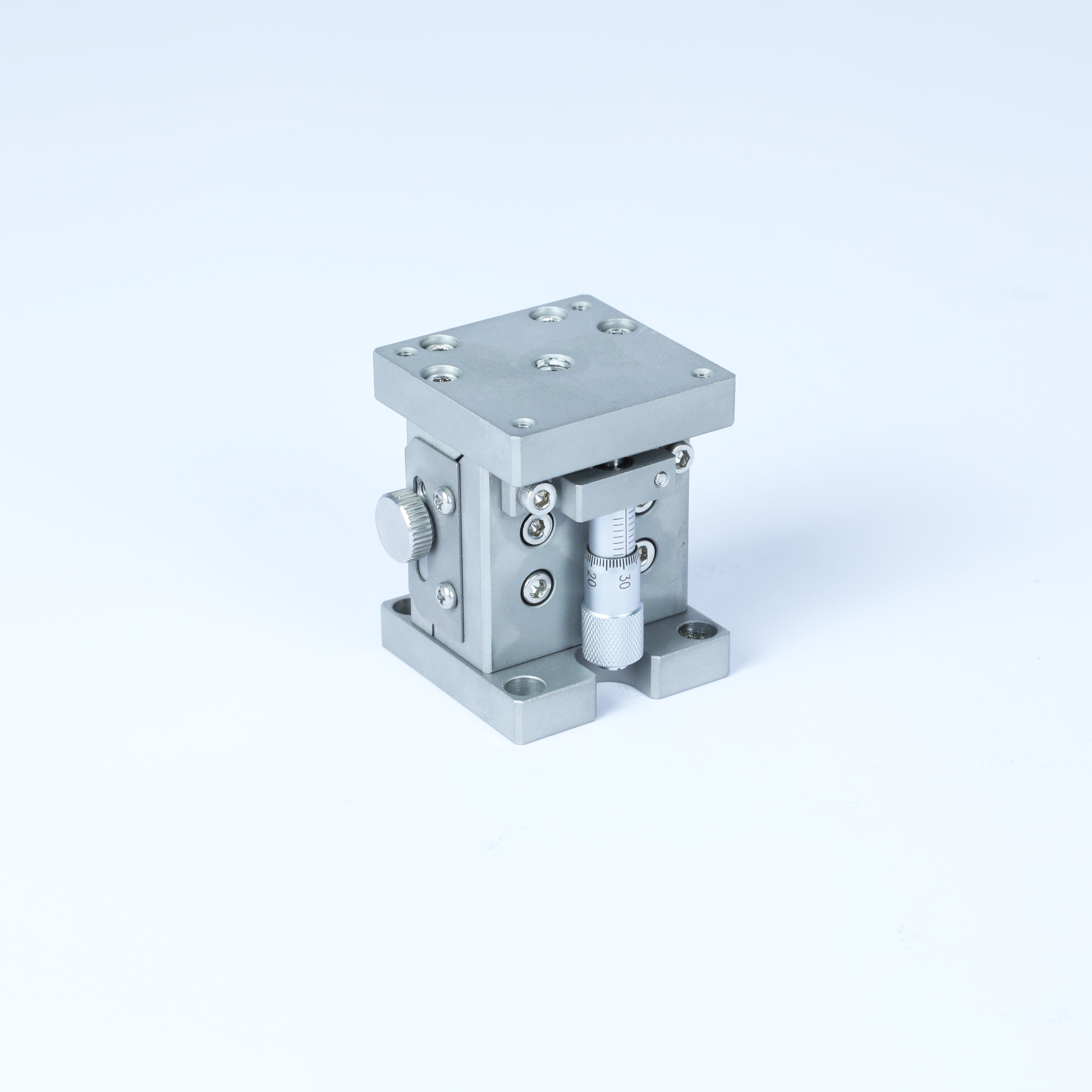

SKV6A-40Z
Manual Vertical Stage
Datasheet (PDF) ↗CAD Model (RAR) ↗Specifications
| Stage surface size( mm ) | 40×40 |
|---|---|
| Travel range( mm ) | 6 |
| Stage surface height range( mm ) | 51-57 |
| Lifting mechanism | Directly lift |
| Guide mechanism | linear-slider guide |
| Drive type | Micrometer |
| Drive location | Central and vertical |
| Main body material and surface treatment | SUS 304 Stainless steel, sandblasting |
| Weight(Kg) | 0.43 |
| Sensitivity(µm) | ≤2 |
| Minimum reading of micrometer(mm) | 0.01 |
| Height changes by tuning a round of micrometer(mm) | 0.5 |
| Central load capacity(Kg) | ≤2 |
| Static parallelism(µm) | ≤100 |
Applications
Set-and-forget alignment
Adjust once during setup and lock, on axes that do not need to move again during the run.
Coarse positioning ahead of fine stages
Establish the optical axis by hand before a piezo or motorised stage takes the fine motion.
Prototyping and teaching rigs
Reconfigure a layout quickly, with no cabling, controllers or electrical noise added to the experiment.
