Opto-Mechanics · AKR Series High Precision Rotation Stages

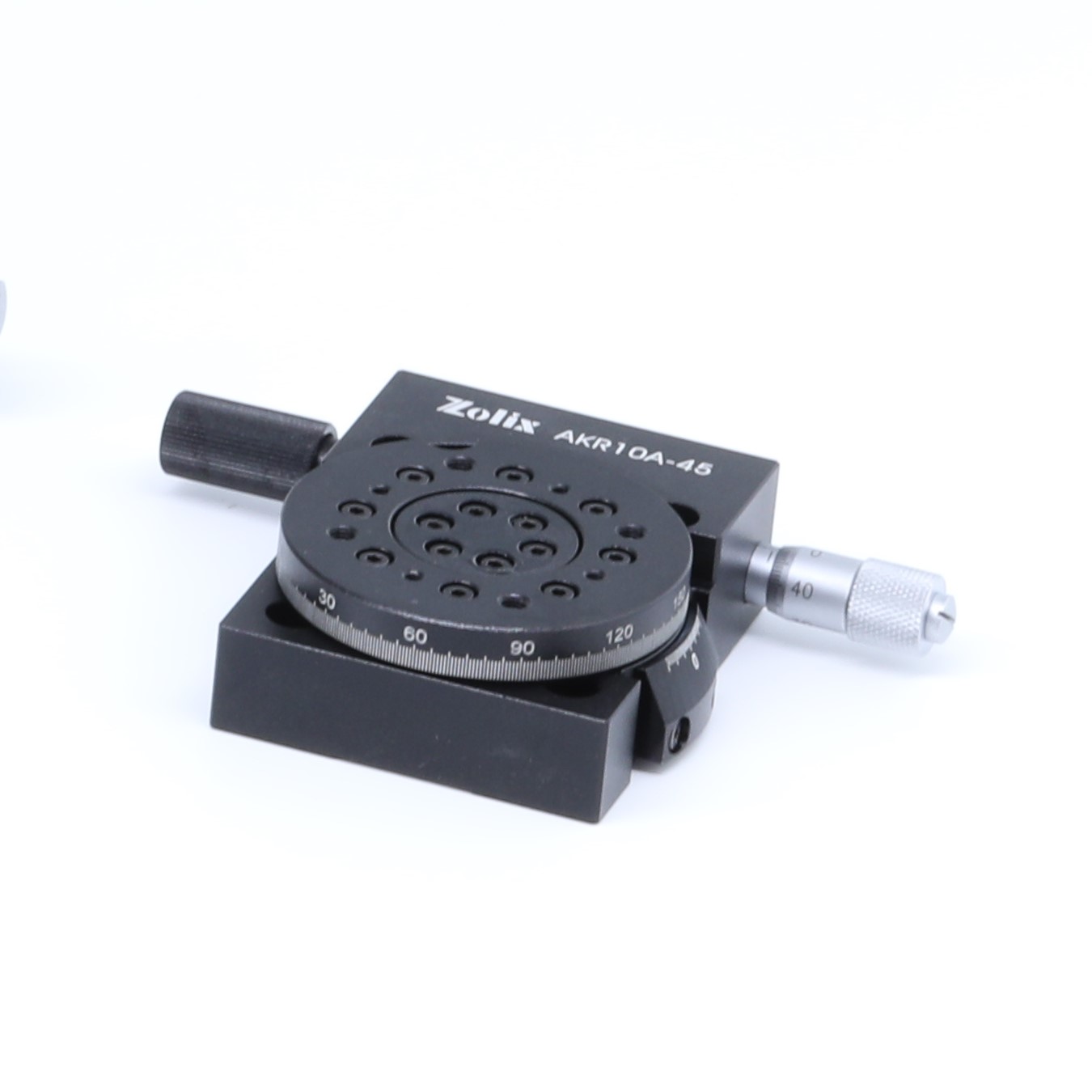

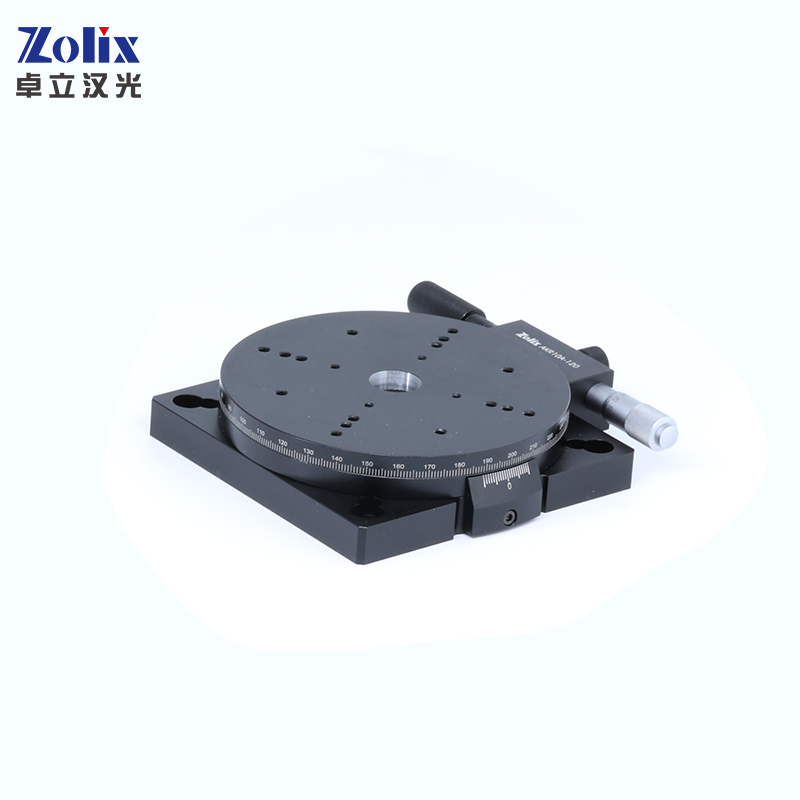

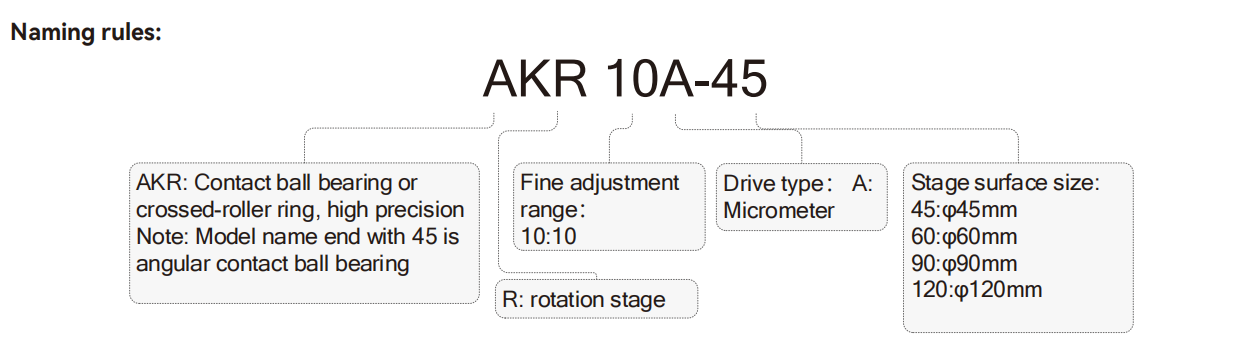

AKR10A-45
Manual Rotation Stage

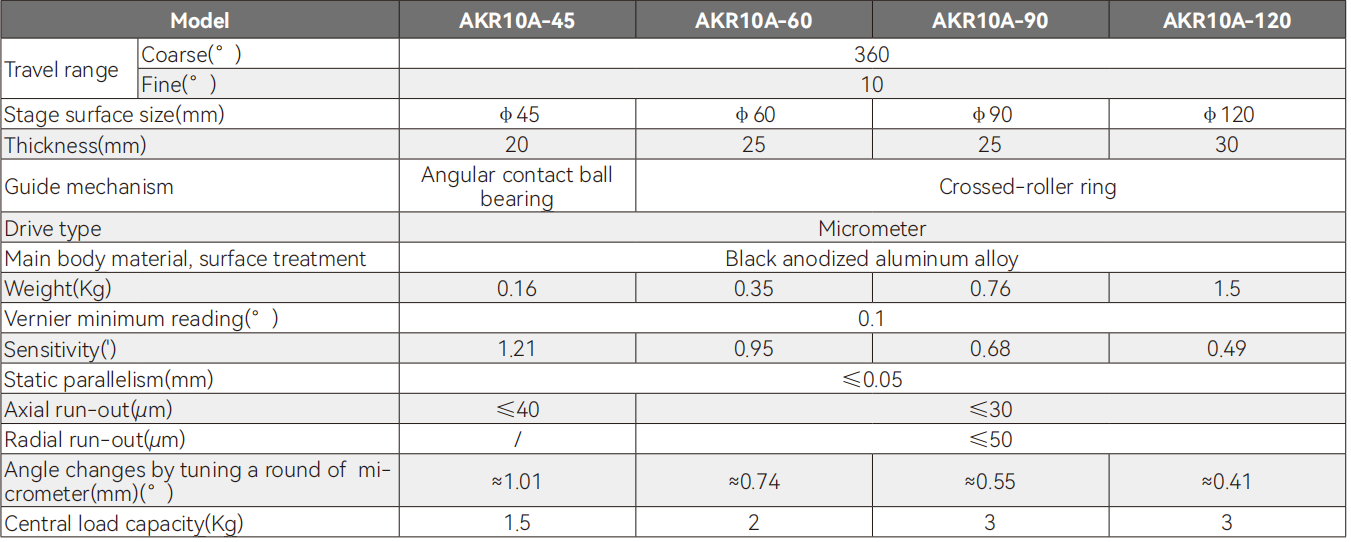

Datasheet (PDF) ↗CAD Model (RAR) ↗Specifications
| Travel range Coarse(°) | 360 |
|---|---|
| Travel range Fine(°) | 10 |
| Stage surface size(mm) | φ45 |
| Thickness(mm) | 20 |
| Guide mechanism | Angular contact ball bearing |
| Drive type | Micrometer |
| Main body material and surface treatment | Black anodized aluminum alloy |
| Weight(Kg) | 0.16 |
| Vernier minimum reading(°) | 0.1 |
| Sensitivity(') | 1.21 |
| Static parallelism (mm) | ≤0.05 |
| Axial run-out(um) | ≤40 |
| Angle changes by tuning a round of mi- crometer(mm)(°) | ≈1.01 |
| Central load capacity(Kg) | 1.5 |
Applications
Set-and-forget alignment
Adjust once during setup and lock, on axes that do not need to move again during the run.
Coarse positioning ahead of fine stages
Establish the optical axis by hand before a piezo or motorised stage takes the fine motion.
Prototyping and teaching rigs
Reconfigure a layout quickly, with no cabling, controllers or electrical noise added to the experiment.
