Opto-Mechanics · DSM Series Aluminum Alloy Dovetail Guide Linear Stages

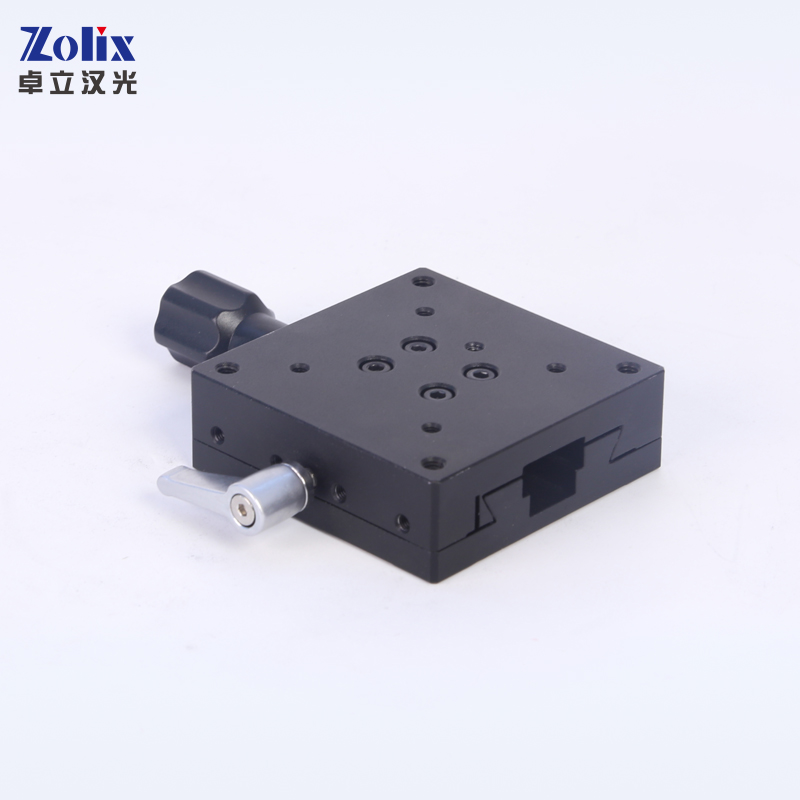

DSM20S-6060E
Manual Stage
Datasheet (PDF) ↗CAD Model (RAR) ↗Specifications
| Travel range(mm) | 20 |
|---|---|
| Stage surface size(mm) | 60×60 |
| Main body length(mm) | 60 |
| Thickness(mm) | 20 |
| Guide mechanism | Dovetail guide |
| Drive type | Lead screw，φ6×0.5 |
| Drive location | center |
| Main body material and surface treatment | Black anodized aluminum alloy |
| Weight(Kg) | 0.22 |
| Vernier minimum read-ing (mm) | 0.1 |
| Horizontal direction(Kg) | 8 |
| Central load capacity(Kg) | 3.5 |
| Axes of Travel | X |
Applications
Set-and-forget alignment
Adjust once during setup and lock, on axes that do not need to move again during the run.
Coarse positioning ahead of fine stages
Establish the optical axis by hand before a piezo or motorised stage takes the fine motion.
Prototyping and teaching rigs
Reconfigure a layout quickly, with no cabling, controllers or electrical noise added to the experiment.
