Opto-Mechanics · AD Series Aluminum Alloy Rack And Pinion Type Linear Stage

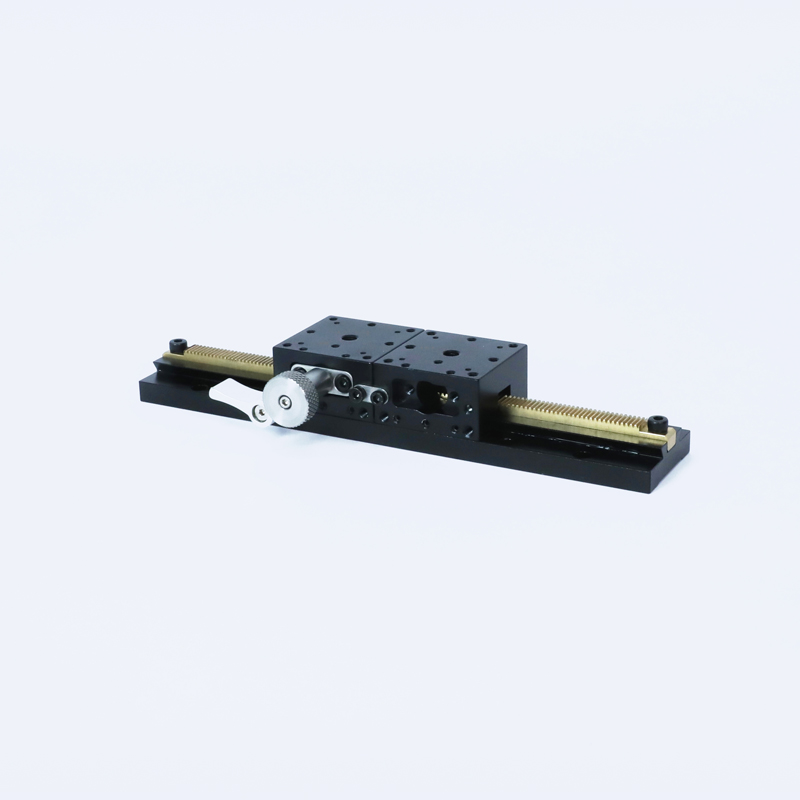

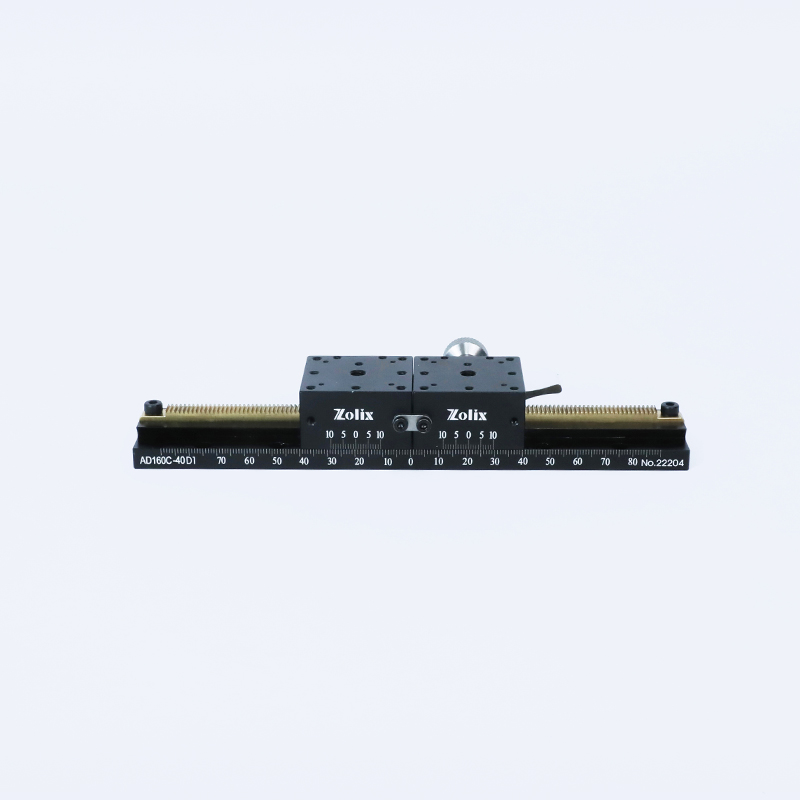

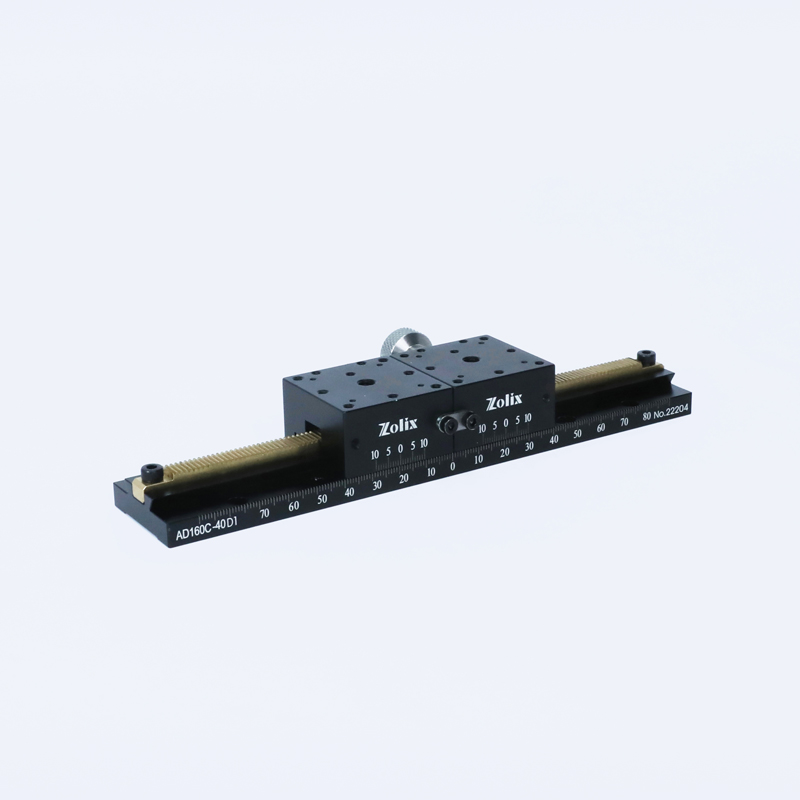

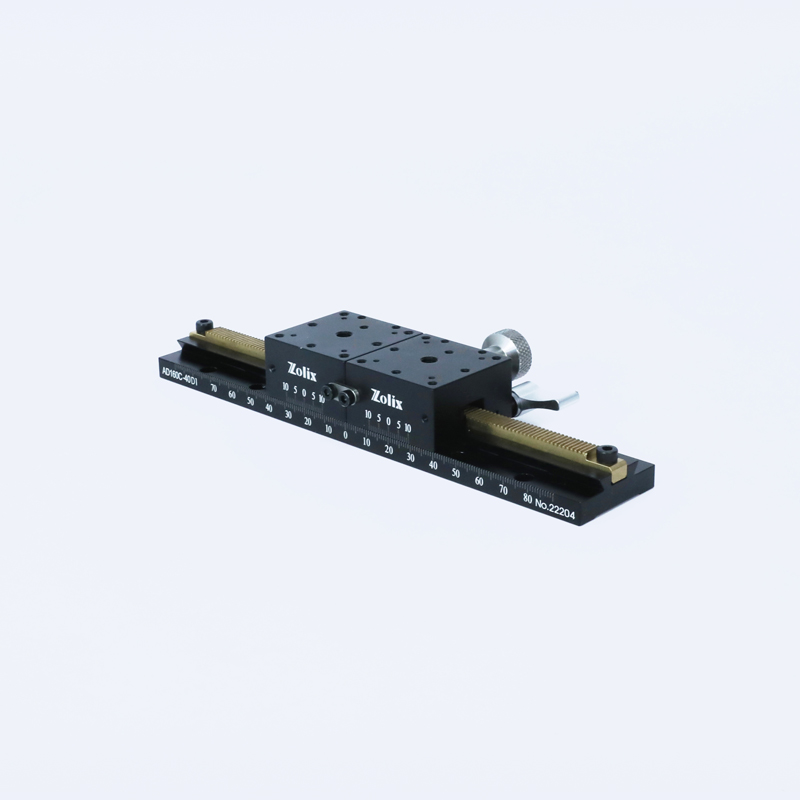

AD160C-40D1
Manual Stage
Datasheet (PDF) ↗CAD Model (RAR) ↗Specifications
| Stage surface size(mm) | 40×40 |
|---|---|
| Thickness(mm) | 30 |
| Amount of movement(mm) | 160 |
| Vernier minimum reading (mm) | 0.1 |
| Drive type | Rack and pinion, m=0.5 |
| Guide mechanism | dovetail guide |
| Main body material and surface | Black anodized aluminum alloy |
| Weight(Kg) | 0.4 |
| Central load capacity(Kg) | 5 |
| Axes of Travel | X |
Applications
Set-and-forget alignment
Adjust once during setup and lock, on axes that do not need to move again during the run.
Coarse positioning ahead of fine stages
Establish the optical axis by hand before a piezo or motorised stage takes the fine motion.
Prototyping and teaching rigs
Reconfigure a layout quickly, with no cabling, controllers or electrical noise added to the experiment.
