Opto-Mechanics · AK Series Aluminum Alloy Crossed-Roller Bearing Linear Stages

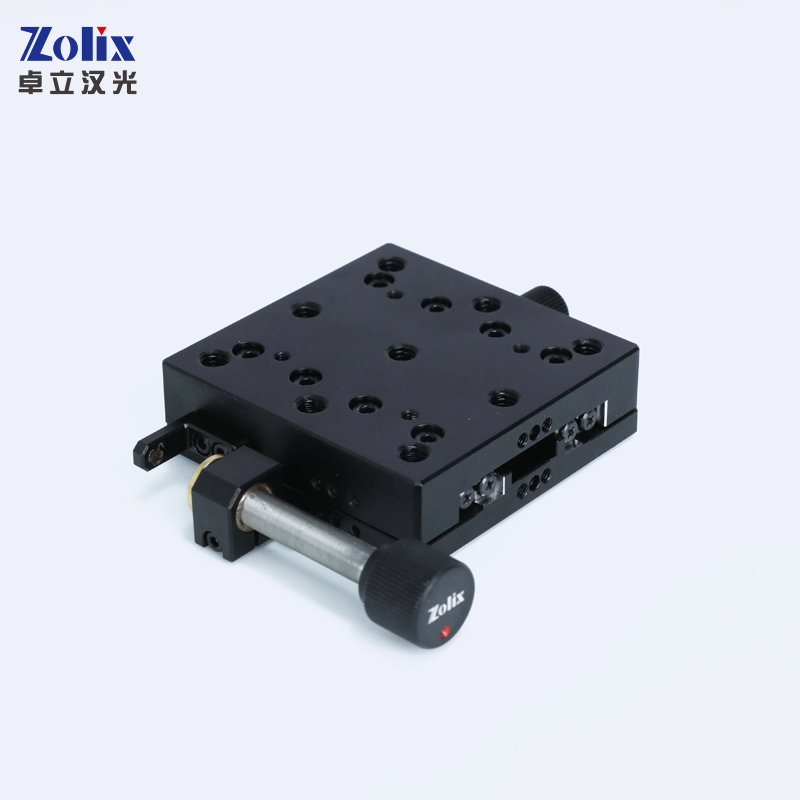

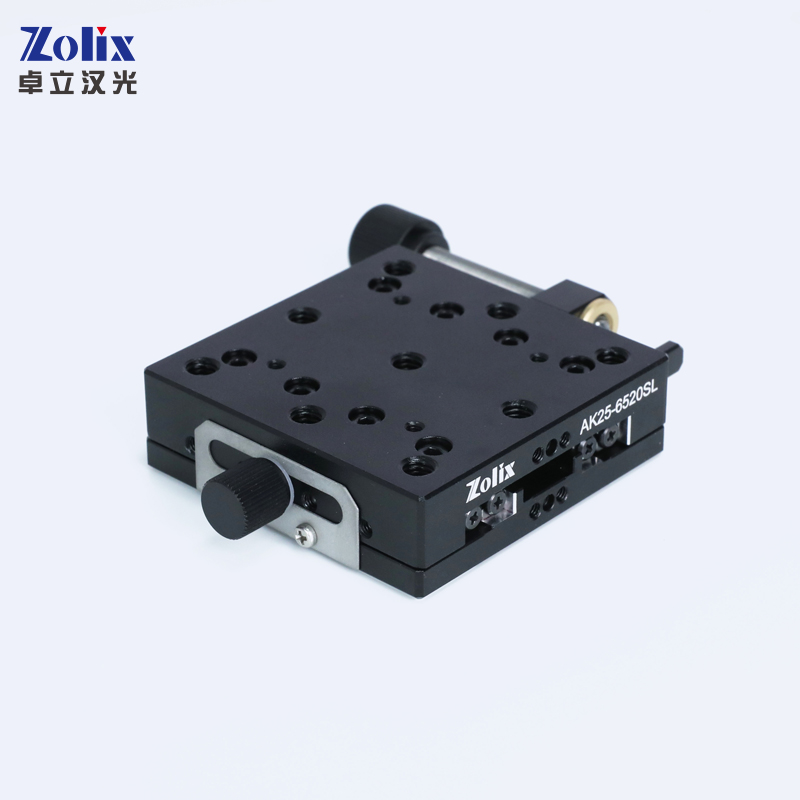

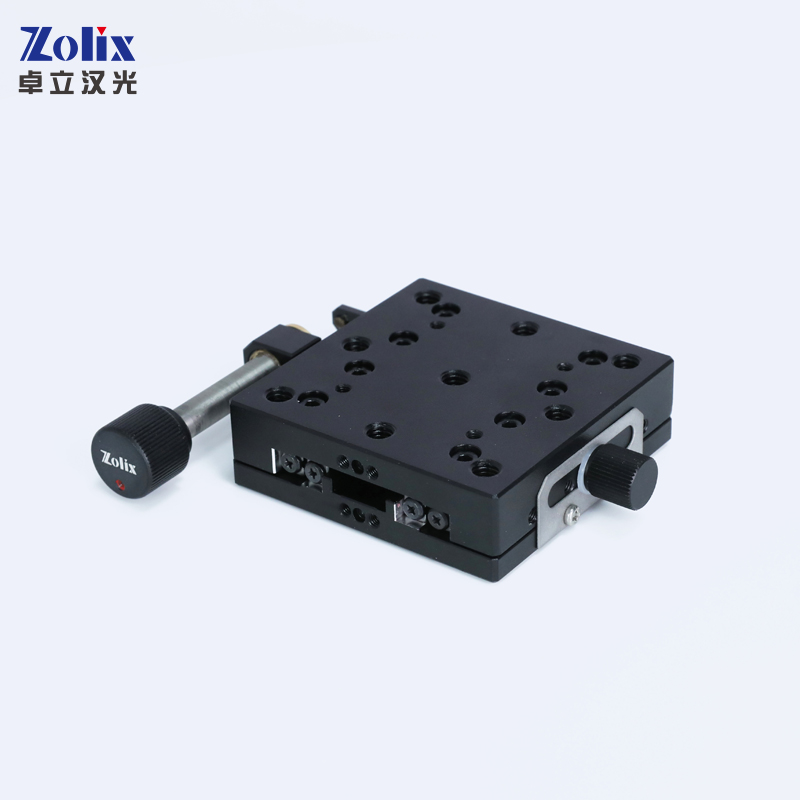

AK25-6520SL
Manual Stage
Datasheet (PDF) ↗CAD Model (RAR) ↗Specifications
| Travel range(mm) | 25 |
|---|---|
| Stage surface size(mm) | 65×65 |
| Thickness(mm) | 20 |
| Guide mechanism | crossed-roller guide |
| Drive type | Screw(default) A: Micrometer |
| Drive location | C:center，SR:right，SL:left，CZ:central and vertical， RZ:right and vertical，LZ:left and vertical |
| Main body material and surface treatment | Black anodized aluminum alloy |
| Weight(Kg) | 0.28 |
| Sensitivity(um) | ≤2 |
| Minimum reading of microme- ter(mm) | 0.01 |
| Motion parallelism(um) | ≤10 |
| Straightness(µm) | ≤3 |
| Pitch(”) | ≤25 |
| Yaw" | ≤15 |
| Horizontal load(Kg) | 6 |
| Vertical load(Kg) | 2.5 |
| Axes of Travel | X |
Applications
Set-and-forget alignment
Adjust once during setup and lock, on axes that do not need to move again during the run.
Coarse positioning ahead of fine stages
Establish the optical axis by hand before a piezo or motorised stage takes the fine motion.
Prototyping and teaching rigs
Reconfigure a layout quickly, with no cabling, controllers or electrical noise added to the experiment.
