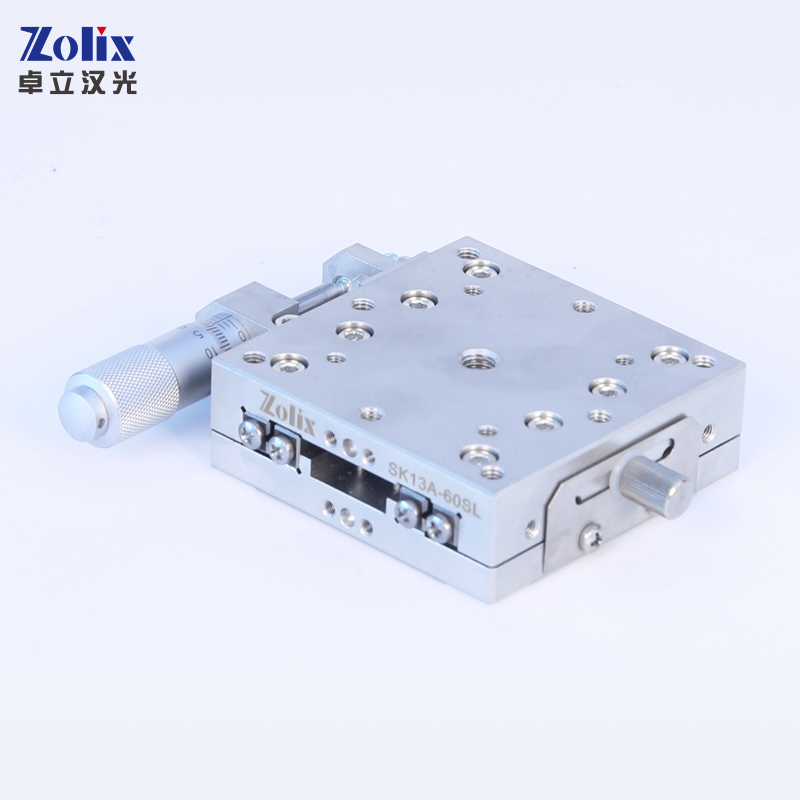

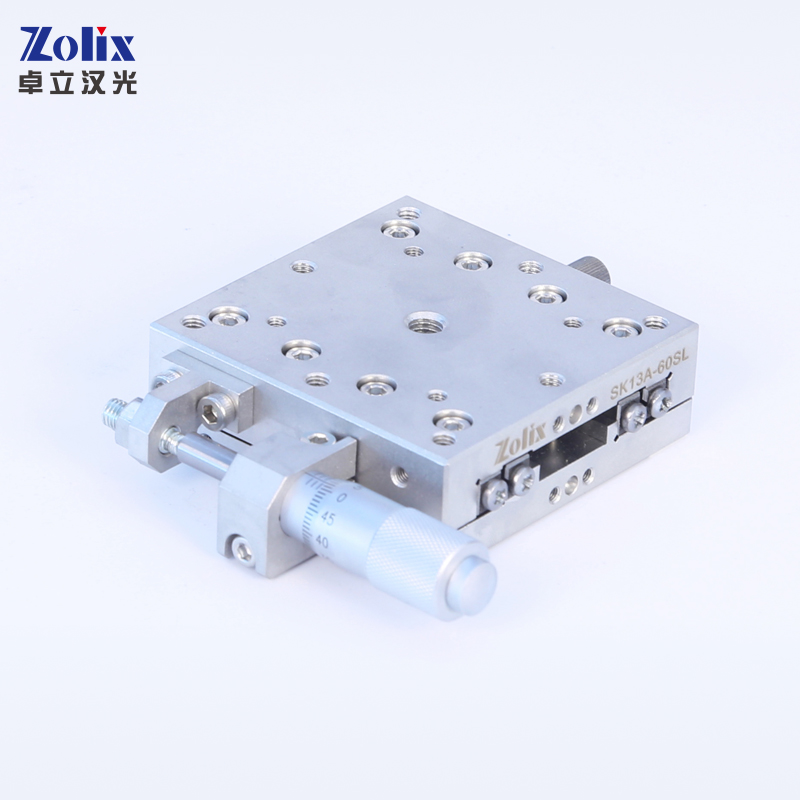

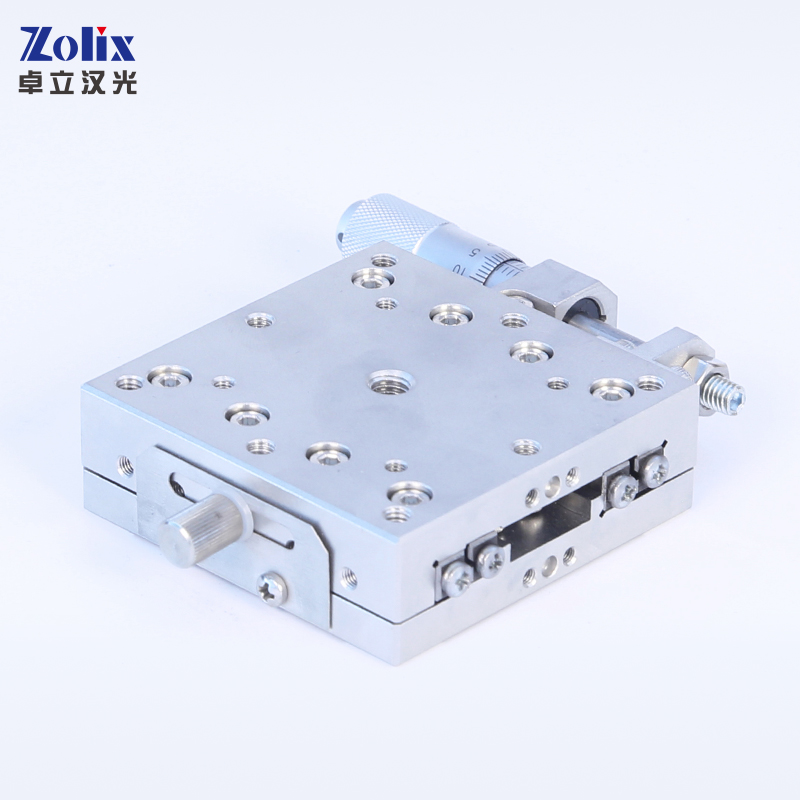

SK13A-60SL
Manual Stage
Datasheet (PDF) ↗CAD Model (RAR) ↗Specifications
| Travel range(mm) | 13 |
|---|---|
| Stage surface size(mm) | 60×60 |
| Thickness(mm) | 20 |
| Guide mechanism | crossed-roller guide |
| Drive type | Screw(default) A：micrometer |
| Drive location | C:center；SR:right；SL:left；CZ:central and vertical |
| Main body material and surface treatment | Stainless steel，sandblasting |
| Sensitivity(um) | ≤2 |
| Minimum reading of micrometer(mm) | 0.01 |
| Straightness(um) | 6 |
| Horizontal load capacity(Kg) | 6 |
| Vertical load capacity(Kg) | 2 |
| Weight(Kg) | 0.5 |
Applications
Set-and-forget alignment
Adjust once during setup and lock, on axes that do not need to move again during the run.
Coarse positioning ahead of fine stages
Establish the optical axis by hand before a piezo or motorised stage takes the fine motion.
Prototyping and teaching rigs
Reconfigure a layout quickly, with no cabling, controllers or electrical noise added to the experiment.
