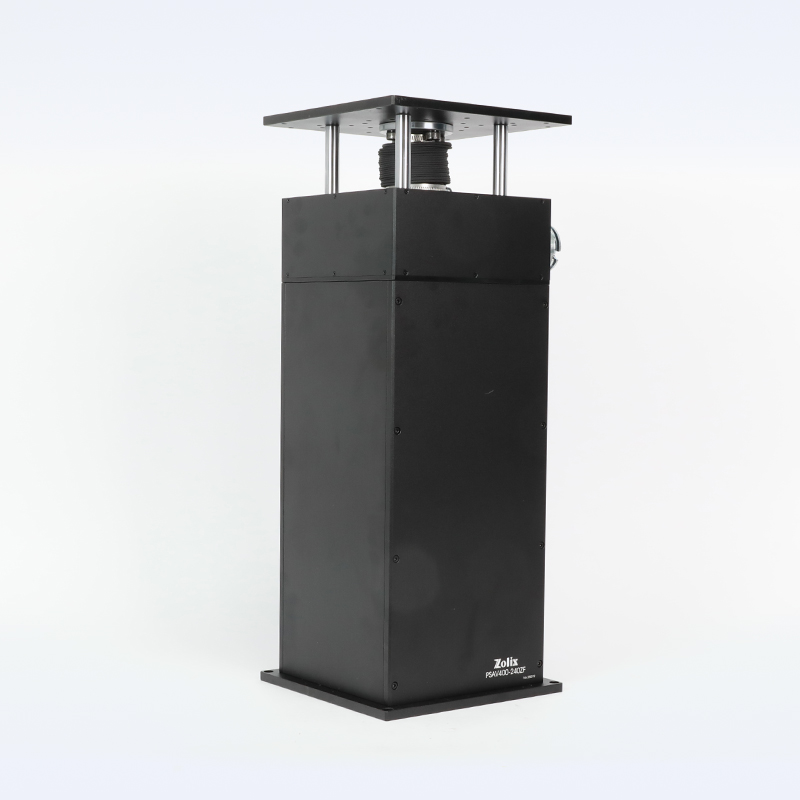

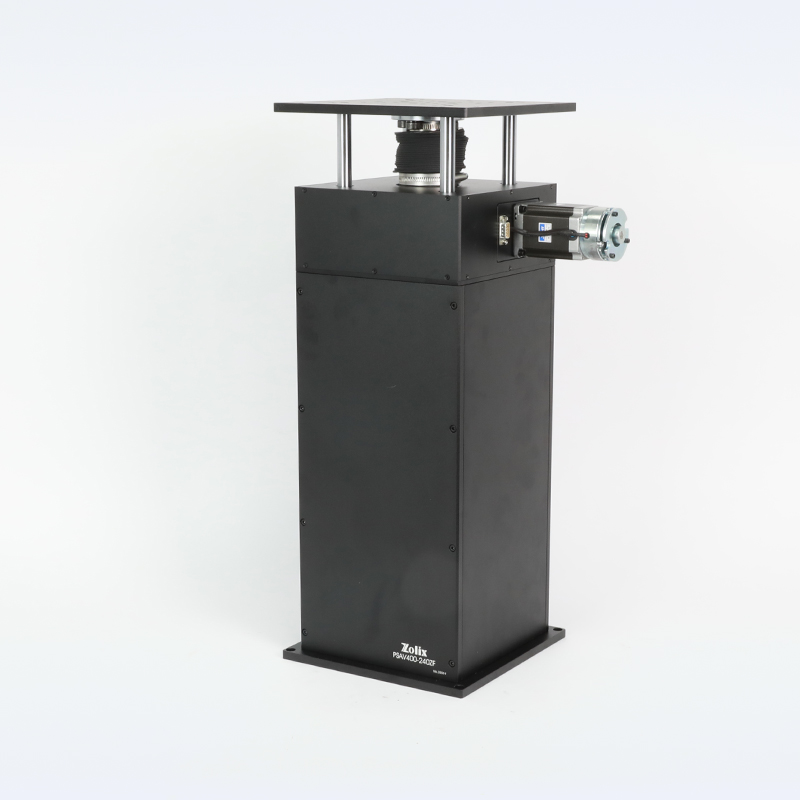

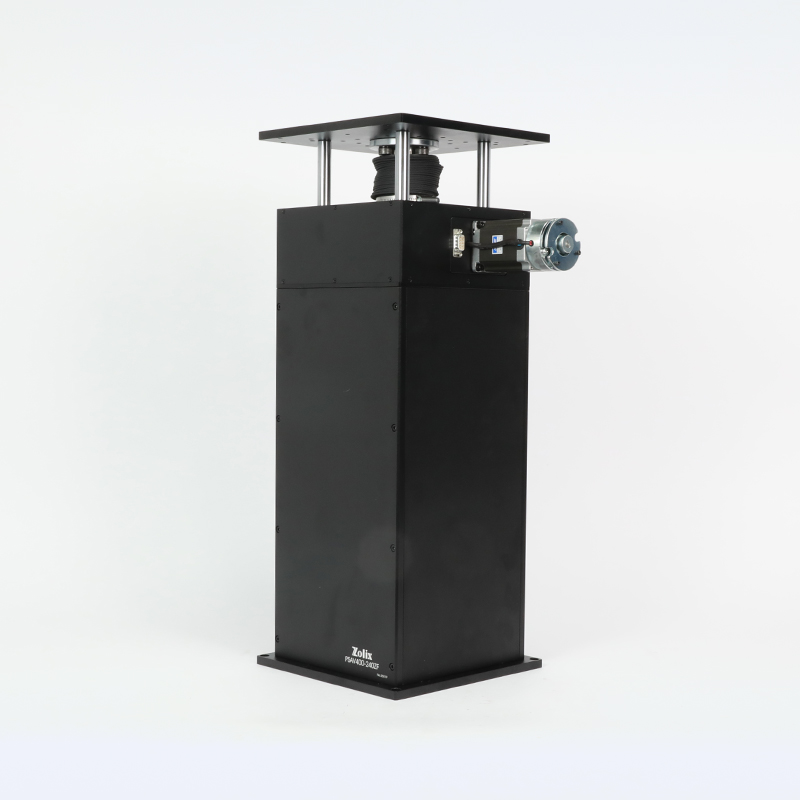

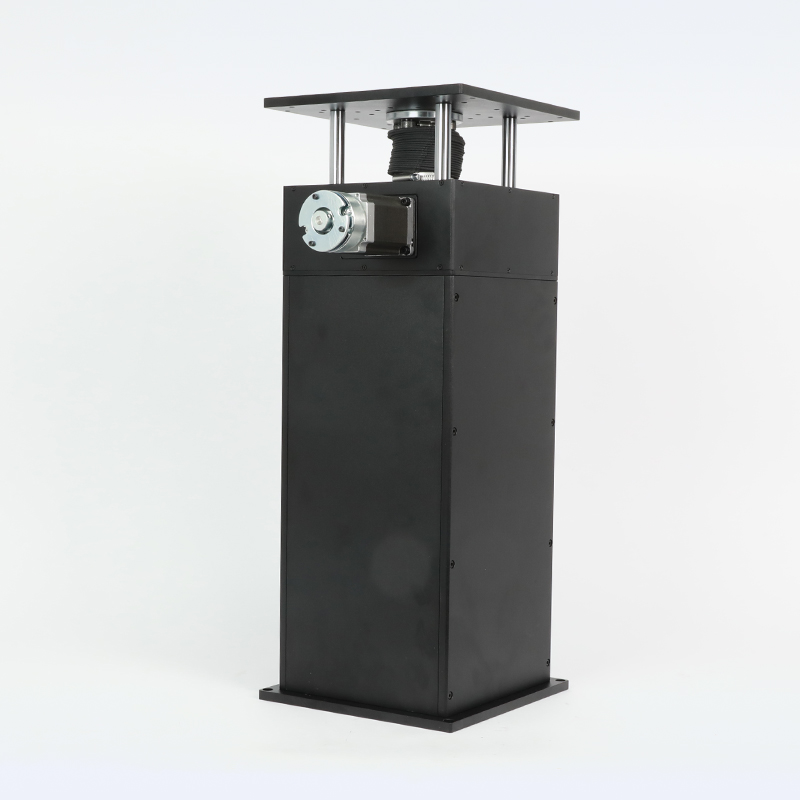

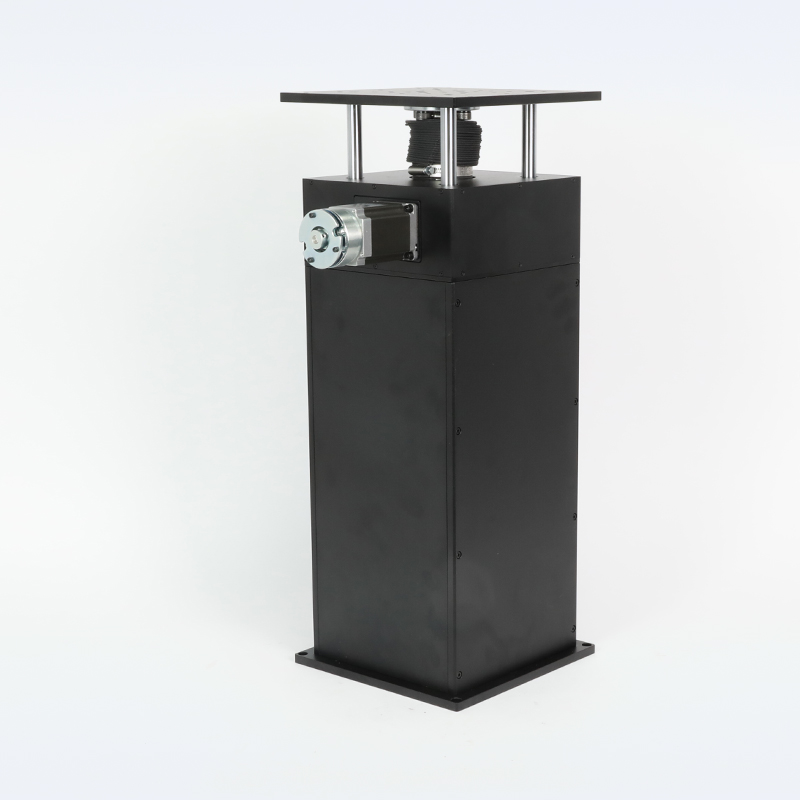

PSAV400-240ZF
PSAV long-travel motorized vertical stage; 400 mm Z travel; 240 mm frame/platform class; dual linear guide rails; 20 kg load class; +/-2 um repeatability.
Datasheet (PDF) ↗CAD Model (RAR) ↗Specifications
| Travel range(mm) | 400 |
|---|---|
| Stage surface size(mm) | 240×240 |
| Transmission mechanism | φ40×5 Ball screws reducer，reduction ratio is 4:1 |
| Guide mechanism | 4* linear-bearing guides |
| Main body material and surface | Black anodized aluminum alloy |
| Weight(Kg) | 28 |
| Resolution (step/half-step) (µm) | 6.25/3.125 |
| 8-fine-subdivision resolution(µm) | 0.781 |
| Max speed(mm/s)* | 12.5 |
| Motor and its stepping angle (°) | Two-phase 57 stepping motor, 1.8 |
| Model number of motor** | MS-57BYG250CSC |
| Working current(A) | 2.4 |
| Holding torque of motor (mN·m) | 1900 |
| Brand and model number of stepping driver (optional) | Moons, SR4 |
| Type of plug for stage | DB9(pin) |
| Position-limit sensors (built-in) | 2*KX-SS-5GL2 |
| Voltage of power supply for sensors (V) | DC5～24V±10% |
| Control output | Dry contact point output |
| Status of output ports | Output ON when sensor is triggered |
| Horizontal load(Kg)*** | 100 |
Applications
Automated scanning and mapping
Step-and-acquire across areas far wider than a single field of view.
Repeatable production indexing
Move parts between fixed stations with closed-loop encoders holding position over long shifts.
Programmable multi-axis motion
Coordinate several axes from software for processing, inspection and test sequences.
