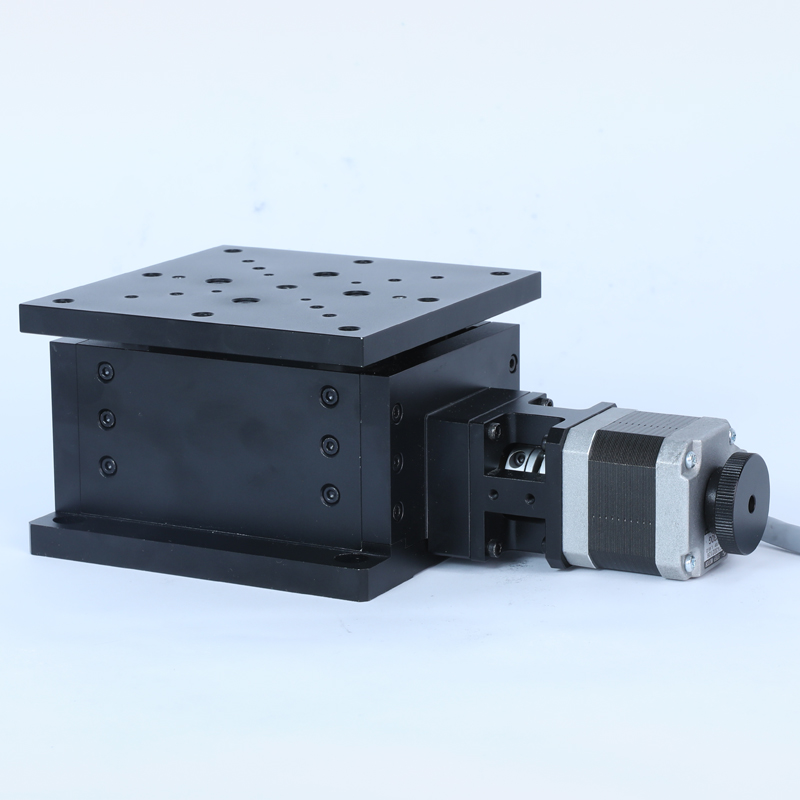

Opto-Mechanics · CXZ Series Motorized Vertical Stage

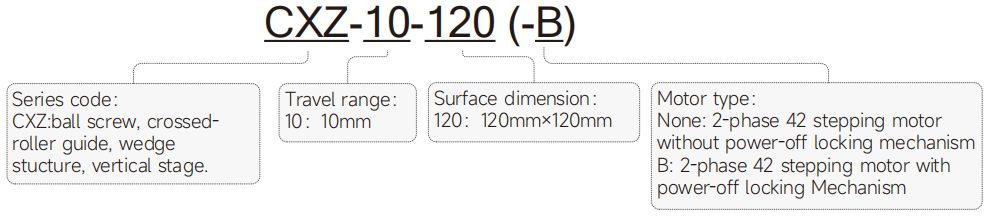

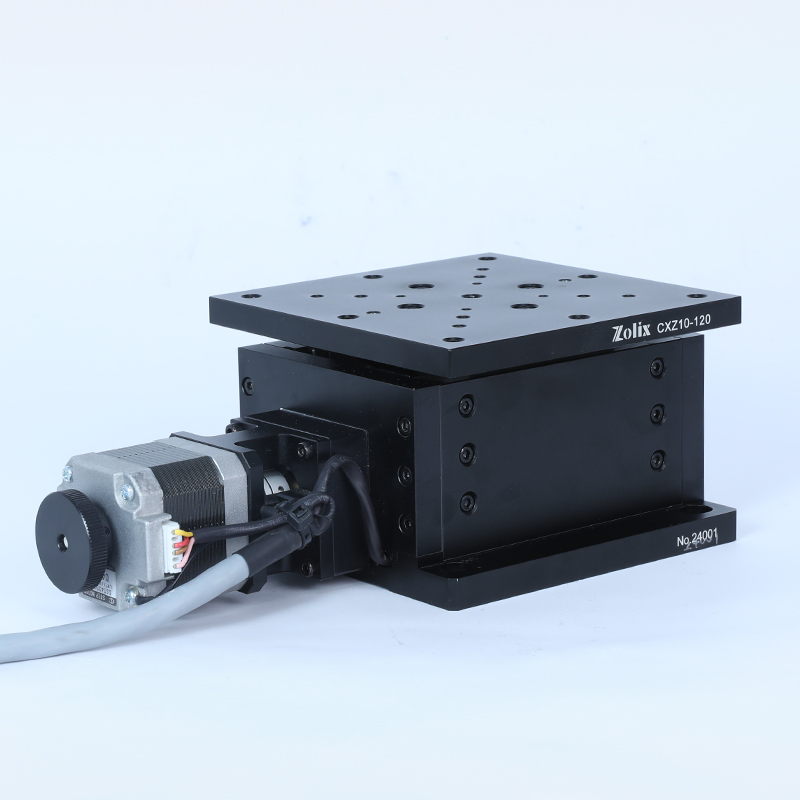

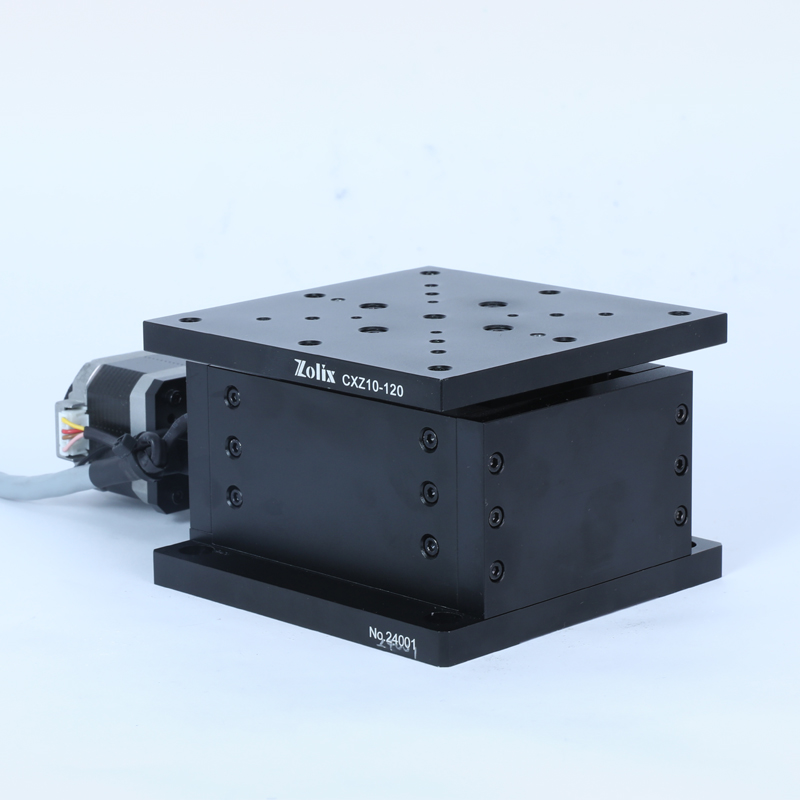

CXZ10-120
CXZ wedge-design motorized vertical stage; 10 mm Z travel; 120 mm platform class; horizontal-to-vertical wedge mechanism; 15 kg load class; +/-0.5 um repeatability.
Datasheet (PDF) ↗Specifications
| Travel range（mm） | 10 |
|---|---|
| Stage surface size(mm） | 120×120 |
| Transmission mechanism | Ball screwΦ8 x 2 |
| Guide mechanism | Crossed-roller guides |
| Main body material, surface treatment | Black anodized aluminum alloy |
| Weight（kg） | 2.6 |
| Resolution(step/half step，µm） | 5 / 2.5 |
| 20-fine-subdivision resolution（µm） | 0.25 |
| Highest speed（mm/s）* | 10 |
| Repositioning accuracy (µm) | ≤±2.5 |
| Backlash (µm) | ≤5 |
| Static parallelism (mm) | ≤0.1 |
| Dynamic straightness（µm） | ≤30 |
| Motor and its stepping angle（°） | 2-phase stepping motor，1.8 |
| Brand and model number of motor | Shinano，SST43D2126-10 |
| Working current（A） | 1.7 |
| Torque of motor（mN·m） | 456 |
| Brand and model number of stepping driver | Moons，SR2 |
| Type of plug for stage | DB9(pin) |
| Type of cable for stage | High flexibility cable (Helukabel, Germany) |
| Length of connection cable(m) | 0.2 |
| Position-limit sensors (built-in) | 2*GP1S09xHCPI（Japan SHARP） |
| Origin-point sensors (built-in) | 1*GP1S09xHCPI（Japan SHARP） |
| Voltage of power supply for sensors (V) | DC5~24V±10％ |
| Control output | NPN open collector output DC5～24V 8mA or less Residual voltage 0.3V or less (w hen load current is 2mA) |
| Status of output ports | out put ON whe n sensor is bloc ked |
| Horizontal direction(Kg) | 8 |
Applications
Automated scanning and mapping
Step-and-acquire across areas far wider than a single field of view.
Repeatable production indexing
Move parts between fixed stations with closed-loop encoders holding position over long shifts.
Programmable multi-axis motion
Coordinate several axes from software for processing, inspection and test sequences.
