Opto-Mechanics · TSAxx-B Series Square Guide Motorized Linear Stage

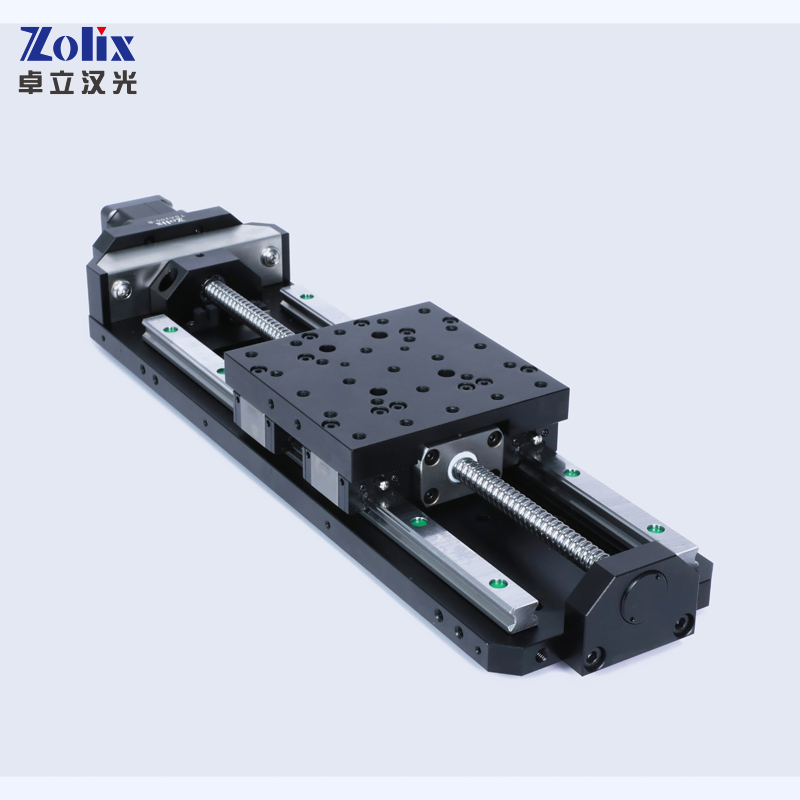

TSA200-B
TSA motorized linear stage; 200 mm travel; square guide rail; heavy moment-load design up to 40 kg class; +/-2 um repeatability.
Datasheet (PDF) ↗CAD Model (RAR) ↗Specifications
| Travel range(mm) | 200 |
|---|---|
| Stage surface size(mm) | 120×120 |
| Transmission mechanism | precision ball screw,Φ12×4 |
| Guide mechanism | linear-slider guides |
| Main body material and surface | Black anodized aluminum alloy |
| Weight(Kg) | 4.6 |
| Resolution (step/half-step) (µm) | 20/10 |
| 8-fine-subdivision resolution (µm) | 2.5 |
| Max speed(mm/s)* | 40 |
| Repositioning accuracy (µm) | ≤±5 |
| Backlash (µm) | ≤7 |
| Motor and its stepping angle (°) | Two phase 42 stepping motor，1.8 |
| Working current(A) | 1.7 |
| Holding torque of motor (N·m) | 0.42 |
| Position-limit sensors (built-in) | 2个KX-EE-SX672 |
| Origin-point sensors (built-in) | 1个PI-ITR8104 |
| Horizontal direction(Kg) | 30 |
| Vertical direction(Kg) | 3 |
| Inverted direction(Kg) | 5 |
| Minimum Incremental Motion(um) | ≤5 |
Applications
Automated scanning and mapping
Step-and-acquire across areas far wider than a single field of view.
Repeatable production indexing
Move parts between fixed stations with closed-loop encoders holding position over long shifts.
Programmable multi-axis motion
Coordinate several axes from software for processing, inspection and test sequences.
