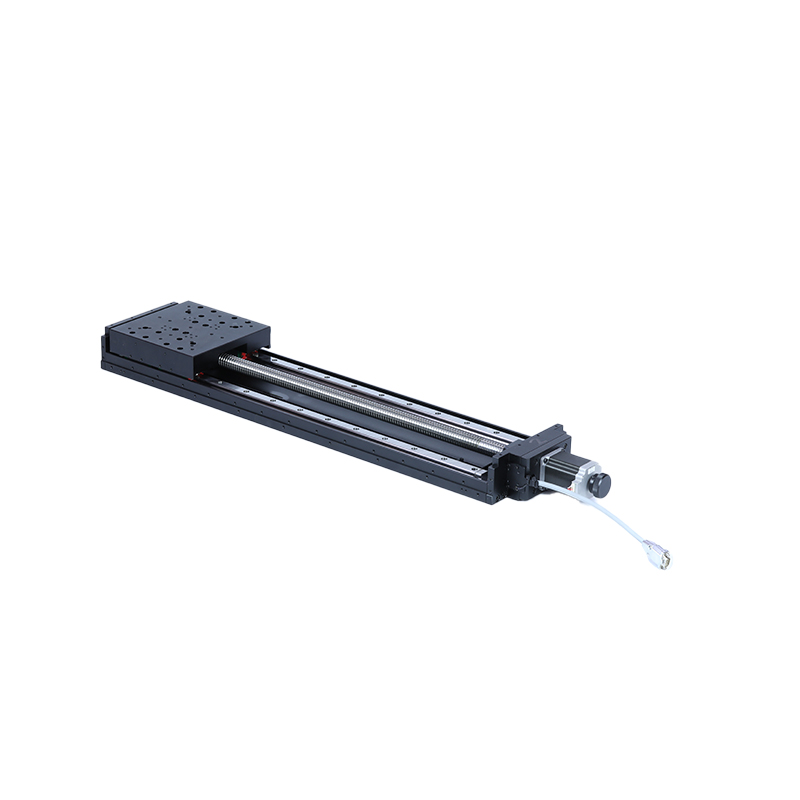

PA600
PA cost-effective linear motorized stage; 600 mm travel; black-anodized aluminum body; 15-30 kg horizontal load class; +/-3 um repeatability.

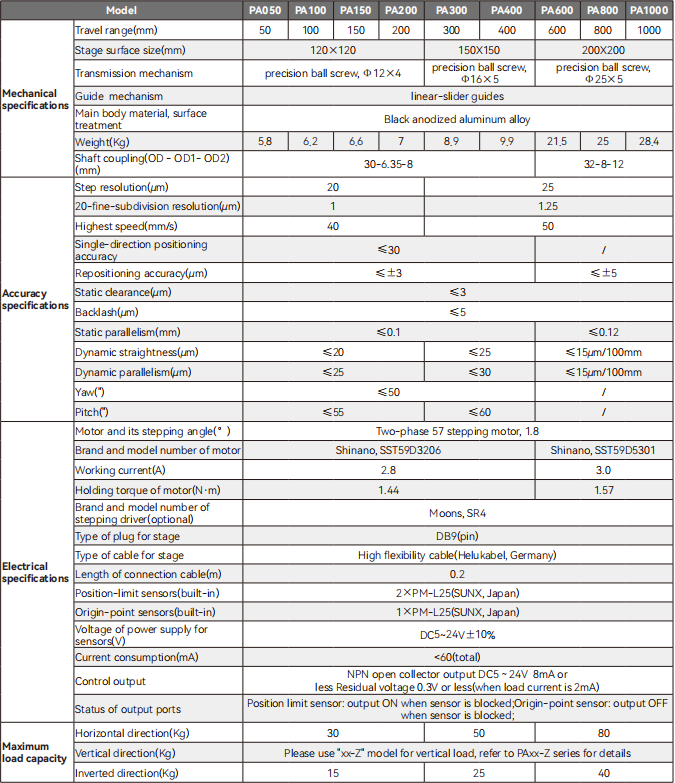

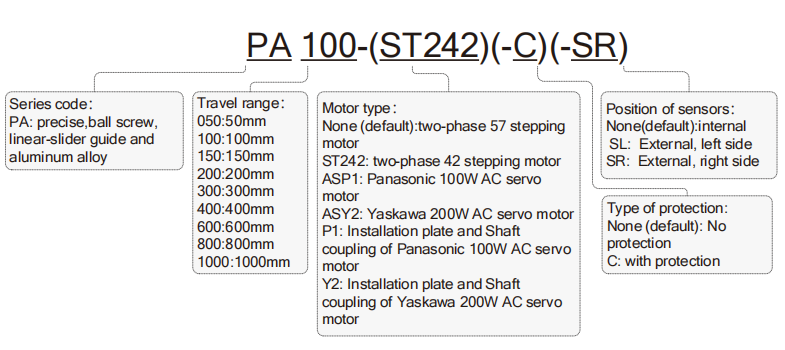

Datasheet (PDF) ↗CAD Model (RAR) ↗Specifications
| Travel range(mm) | 600 |
|---|---|
| Stage surface size(mm) | 200X200 |
| Transmission mechanism | precision ball screw,Φ25×5 |
| Guide mechanism | linear-slider guides |
| Main body material and surface | Black anodized aluminum alloy |
| Weight(Kg) | 21.5 |
| Shaft coupling (OD - OD1- OD2) (mm) | 32/8/12 |
| Step resolution(µm) | 25 |
| 20-fine-subdivision resolution (µm) | 1.25 |
| Max speed(mm/s) | 50 |
| Repositioning accuracy (um) | ≤±5 |
| Backlash(µm) | ≤3 |
| Backlash(um) | ≤5 |
| Static parallelism (mm) | ≤0.12 |
| Motion straightness(µm) | ≤15µm/100mm |
| Motion parallelism(µm) | ≤15µm/100mm |
| Motor and its stepping angle (°) | Two-phase 57 stepping motor, 1.8 |
| Brand and model number of motor | Shinano，SST59D5301 |
| Working current(A) | 3.0 |
| Holding torque of motor (N·m) | 1.57 |
| Brand and model number of stepping driver (optional) | Moons, SR4 |
| Type of plug for stage | DB9(pin) |
| Type of cable for stage | High flexibility cable (Helukabel, Germany) |
| Length of connection cable(m) | 0.2 |
| Position-limit sensors (built-in) | 2*PM-L25 (SUNX, Japan) |
| Origin-point sensors (built-in) | 1*PM-L25 (SUNX, Japan) |
| Voltage of power supply for sensors (V) | DC5~24V±10% |
| Current consumption(mA) | <60 (total) |
| Control output | NPN open collector output DC5～24V 8mA or less Residual voltage 0.3V or less (when load current is 2mA) |
| Status of output ports | Position limit sensor: output ON when sensor is blocked;Origin-point sensor: output OFF when sensor is blocked; |
| Horizontal direction(Kg) | 80 |
| Vertical direction(Kg) | Please use "xx-Z" model for vertical load, refer to PAxx-Z series for details |
| Inverted direction (Kg) | 40 |
| Minimum Incremental Motion(um) | ≤2 |
Applications
Automated scanning and mapping
Step-and-acquire across areas far wider than a single field of view.
Repeatable production indexing
Move parts between fixed stations with closed-loop encoders holding position over long shifts.
Programmable multi-axis motion
Coordinate several axes from software for processing, inspection and test sequences.
Related products

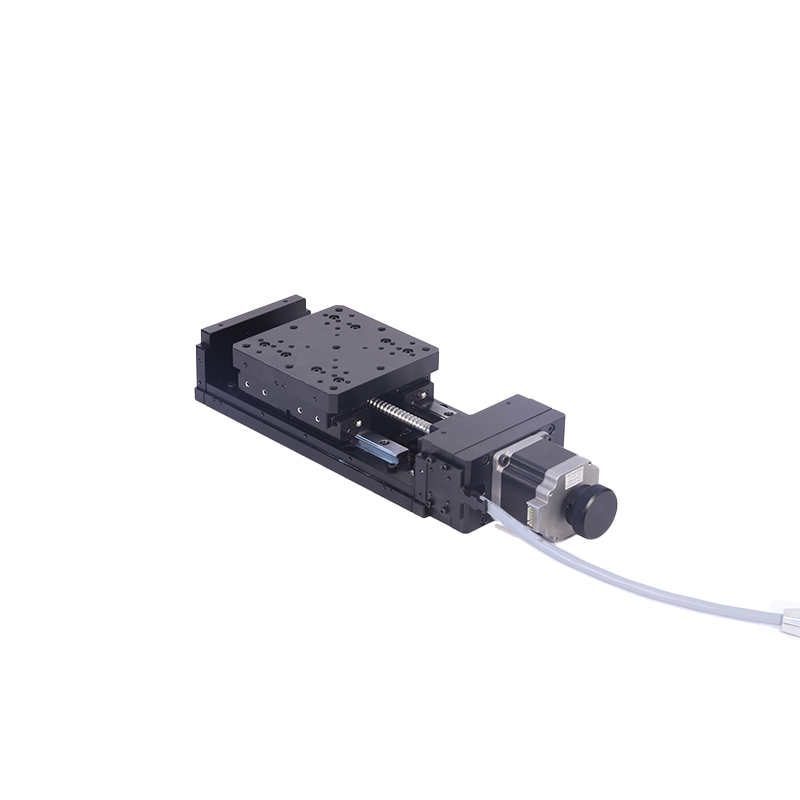

PA050
PA cost-effective linear motorized stage; 50 mm travel; black-anodized aluminum body; 15-30 kg horizontal load class; +/-3 um repeatability.

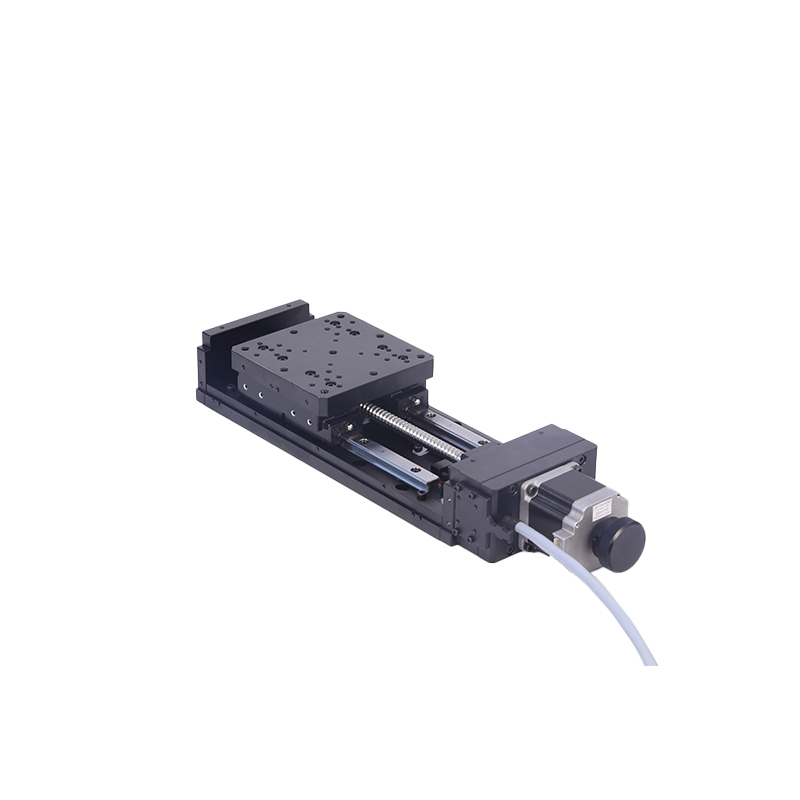

PA100
PA cost-effective linear motorized stage; 100 mm travel; black-anodized aluminum body; 15-30 kg horizontal load class; +/-3 um repeatability.

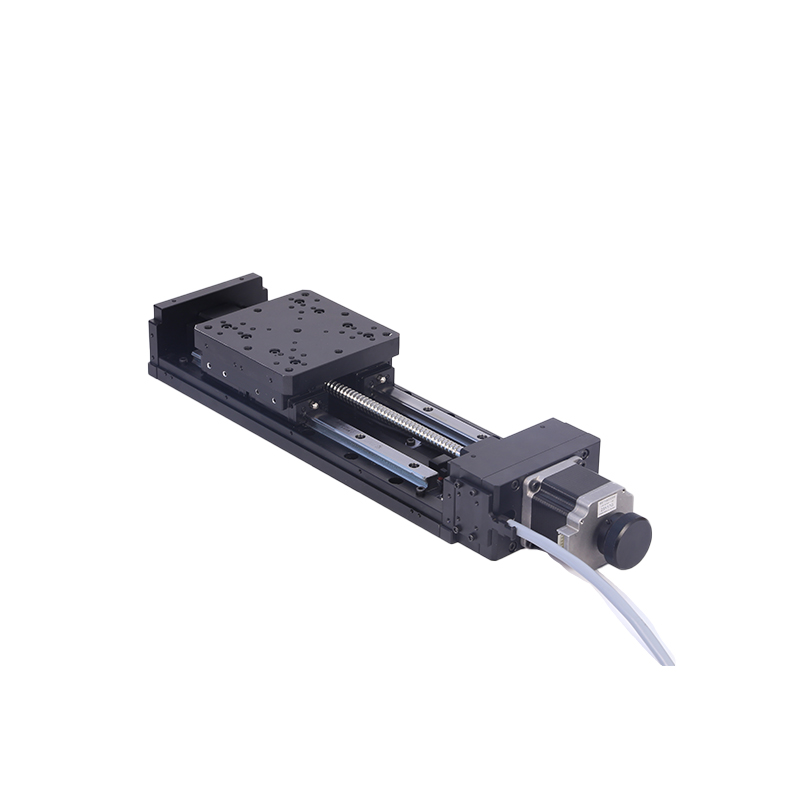

PA150
PA cost-effective linear motorized stage; 150 mm travel; black-anodized aluminum body; 15-30 kg horizontal load class; +/-3 um repeatability.

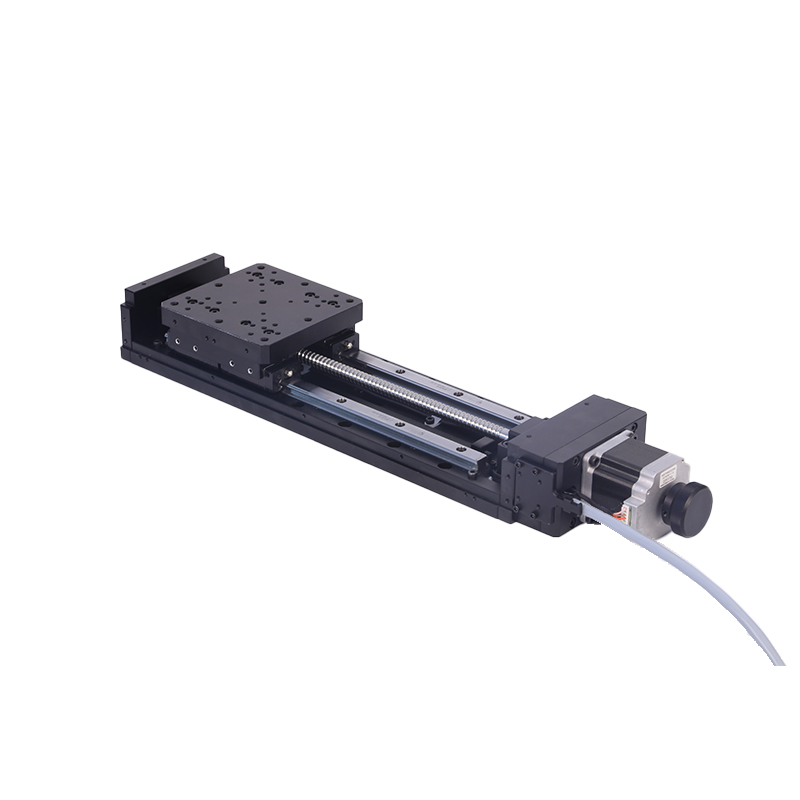

PA200
