CXP15-40

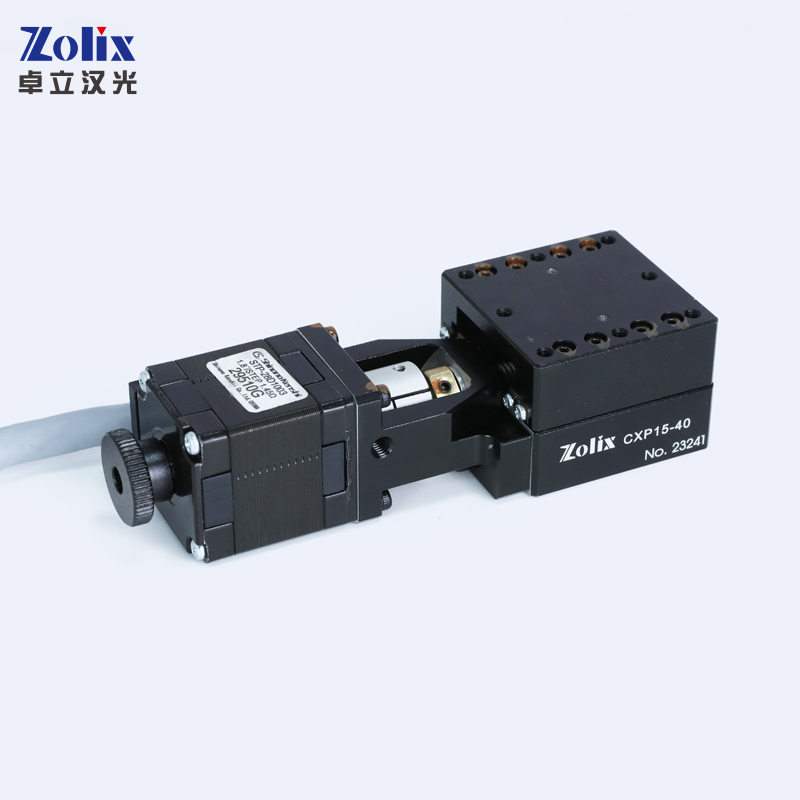

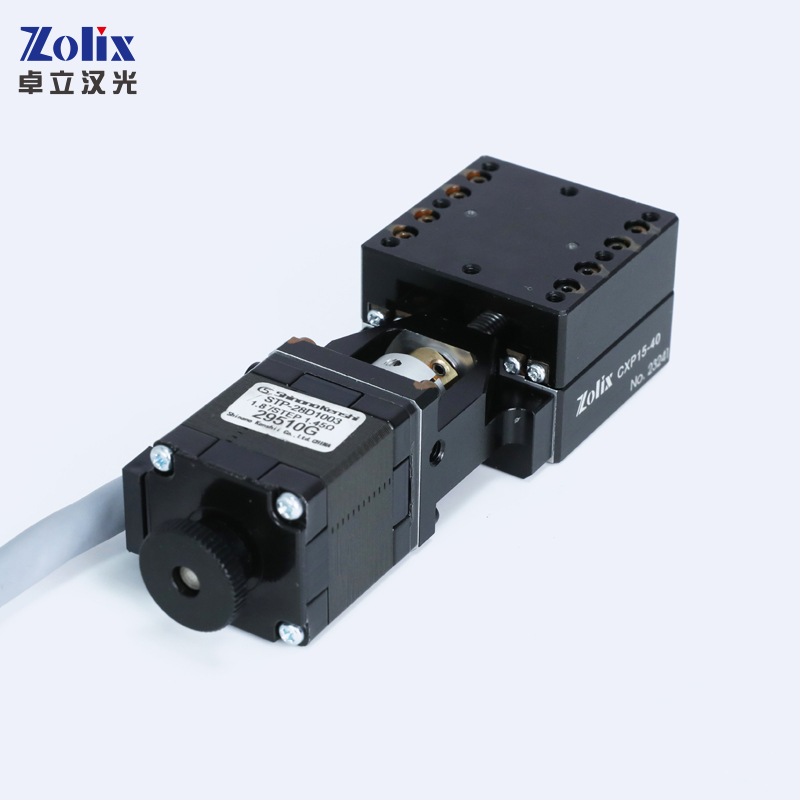

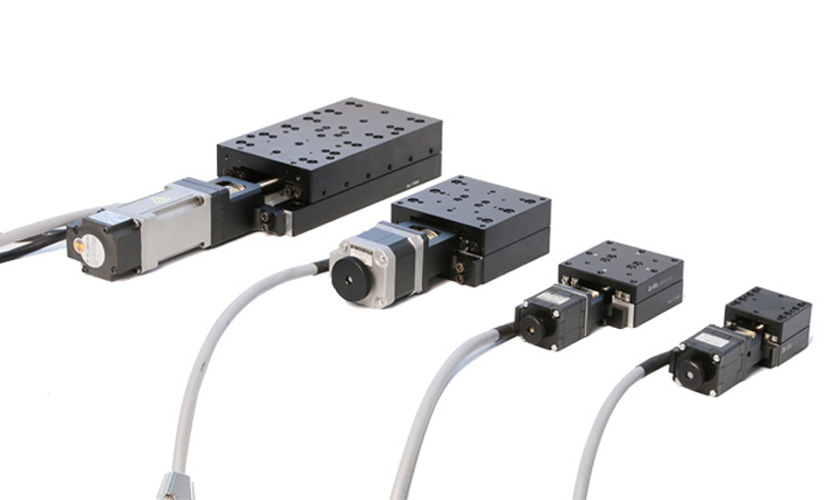

CXP high-stiffness crossed-roller motorized linear stage; 15 mm travel; 40 mm platform width class; high moment stiffness; repeatability around +/-0.5 um.

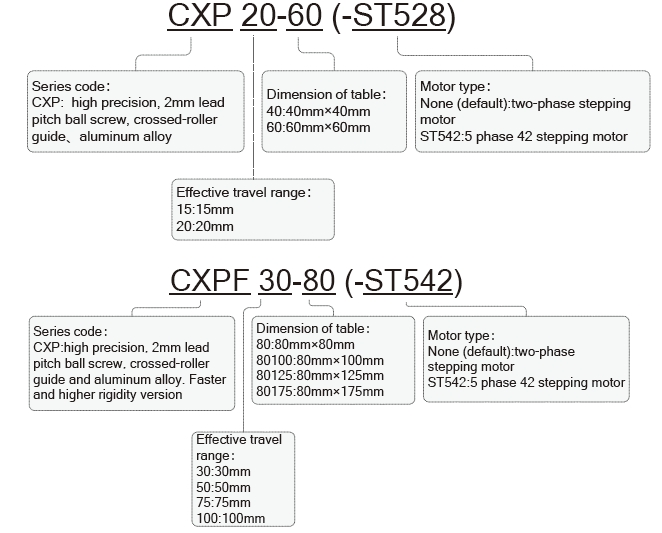

Datasheet (PDF) ↗CAD Model (RAR) ↗Specifications
| Travel range(mm) | 15 |
|---|---|
| Stage surface size(mm) | 40×40 |
| Guide mechanism | ball screw,φ6×1 |
| Guide mechanism | crossed-roller bearing guides |
| Main body material and surface treatments | Black anodized aluminum-alloy |
| Weight(Kg) | 0.4 |
| Shaft coupling (OD - OD1- OD2)(mm) | 16-3-5 |
| Resolution (step/half-step) (µm) | 5/2.5 |
| 20-fine-subdivision resolution (µm) | 0.25 |
| Max speed(mm/s)* | 10 |
| Repositioning accuracy (µm) | ≤±1.5 |
| Backlash(um) | ≤3 |
| Static parallelism (mm) | ≤0.08 |
| Motion straightness(µm) | ≤10 |
| Motion parallelism (µm) | ≤15 |
| Minimum incremental motion (µm)** | ≤5 |
| Brand and model number of motor | Shinano, STP-28D1003-08 |
| Motor and its stepping angle (°) | 2 phase 28 stepping motor, 1.8 |
| Insulation resistance | Above 100MΩ/Min |
| Insulating strength | "500V AC no abnormality within 1 minute" |
| Insulating level | UL B level |
| Weight(Kg) | 0.11 |
| Voltage(V) | 1.9 |
| Current | 1.3A/phase |
| Resistance | 1.45±10%Q/phase |
| Inductance | 1.25mH/phase |
| Holding torque | 0.0785N.m |
| Retarding torque | 0.00294N.m(reference value) |
| Inertia of the rotor | 8g.cm |
| Operating temperature | 0~+50℃ |
| Max operating temperature for motor | 80℃ Max |
| Brand and model number of stepping driver (optional) | Moons, SR2 |
| Type of plug for stage | DB9(pin) |
| Type of cable for stage | High flexibility cable (Helukabel, Germany) |
| Length of cables for stages(m) | 0.2 |
| Position-limit sensors (built-in) | 2*GP1S09xHCP(Japan SHARP) |
| Origin-point sensors (built- in) | 1*GP1S09xHCPI(Japan SHARP) |
| Voltage of power supply for sensors (V) | DC5-24V±10% |
| current consumption | <60 (total) |
| Control output | NPN open collector output DC5～24V 8mA or less Residual voltage 0.3V or less (when load current is 2mA) |
| Status of output ports | output ON when sensor is blocked |
| Horizontal direction(kg) | 5 |
| Vertical direction(kg) | 2 |
| Inverted direction(kg) | 3 |
Applications
Automated scanning and mapping
Step-and-acquire across areas far wider than a single field of view.
Repeatable production indexing
Move parts between fixed stations with closed-loop encoders holding position over long shifts.
Programmable multi-axis motion
Coordinate several axes from software for processing, inspection and test sequences.
