Driving multi-axis stacks
Coordinate several piezo axes from one chassis so motion stays synchronised.

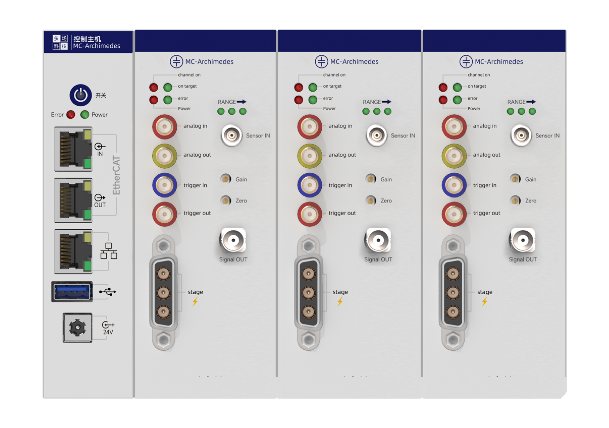

Representative image of the product family.
Opto-Mechanics · Ambient Piezo Stages - Controllers
MC-Archimedes.N
Digital FPGA-based multi-channel piezo scanner controller providing up to 8 independent drive channels with -20 V to +150 V output and 24 W per channel. Designed for room-temperature flexure scanning stages and fast steering mirrors (S, SD, SH, Carrier.S/SL/OB, and Mirrors series), supporting both capacitive (.C) and strain-gauge (.S) sensor feedback sampled at 20 kHz or 50 kHz. Features D-Sub 3W3 connectors, USB and Ethernet host interfaces, 0–10 V analog input, and SMA TTL synchronization triggers.
Datasheet (PDF) ↗Catalog context
Where MC-Archimedes.N fits
MC-Archimedes.N is listed in the Ambient Piezo Stages - Controllers family. The local catalog record provides these first selection fields: Controlled channels: Up to 8 channels (modular N ≤ 8); Controller architecture: High-speed FPGA digital processing; Target positioners: Piezo flexure scanners (S, SD, SH, Carrier) & fast steering mirrors.
Specifications
| Controlled channels | Up to 8 channels (modular N ≤ 8) |
|---|---|
| Controller architecture | High-speed FPGA digital processing |
| Target positioners | Piezo flexure scanners (S, SD, SH, Carrier) & fast steering mirrors |
| Control mode | Closed-loop and open-loop |
| Sensor feedback options | Capacitive sensor (.C) or strain-gauge sensor (.S) |
| Sensor sampling rate | 20 kHz / 50 kHz real-time sampling |
| Output voltage range | -20 V ~ +150 V |
| Max output power | 24 W per channel |
| Host communication interface | USB, Ethernet (RJ45) |
| Analog input | 0 ~ 10 V (single-ended) |
| Hardware trigger | SMA connector, TTL (3.3 V) |
| Stage connectors | D-Sub 3W3 |
| Power supply | 24 V DC & (24 × N) W |
| Power input connector | IEC inlet |
| Dimensions (W × D × H) | 230 × 120 × (30 × (N + 1)) mm |
| Control software | PC GUI and secondary development SDK |
Application context
Why this design is used
Closed-loop servo control
Read capacitive or resistive sensors and hold commanded position against drift and load.
Scripted and remote operation
Integrate motion into an experiment through the SDK rather than driving it from the front panel.
System integration
Integration and compatibility
Use these checks to connect MC-Archimedes.N to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
- Drive and feedback
- Controller architecture: High-speed FPGA digital processing · Sensor feedback options: Capacitive sensor (.C) or strain-gauge sensor (.S)
- Pair open-loop mechanics with the specified high-voltage or inertial driver, and closed-loop variants with the controller their capacitive, strain-gauge or encoder feedback requires. Matching connectors do not guarantee electrical compatibility.
Technical FAQ
Integration questions for MC-Archimedes.N
Which controller does the MC-Archimedes.N require?
Controller architecture: High-speed FPGA digital processing · Sensor feedback options: Capacitive sensor (.C) or strain-gauge sensor (.S). Pair open-loop mechanics with the specified high-voltage or inertial driver, and closed-loop variants with the controller their capacitive, strain-gauge or encoder feedback requires. Matching connectors do not guarantee electrical compatibility.
Specifying this part
What this model has to survive, and what it needs around it
Match the controller to the drive type
MC-Newton drives stick-slip motor stages in single-channel and modular multi-channel forms; MC-Archimedes drives capacitive-sensor scanners; MC-Free6D runs the parallel kinematic platforms. A scanner controller will not drive a motor stage, or the reverse.
Vacuum and non-magnetic versions
Most of the range is orderable as .HV (high vacuum), .UHV (ultra-high vacuum) or .NM (non-magnetic). The suffix changes materials, cabling and bake compatibility rather than the mechanics, so specify it against the chamber the stage will live in.
Full series comparison, controller pairing and mounting hardware on the ambient piezo stages overview, or work through the selection with the configurator.
