AutoScrew.Nano.Set.01

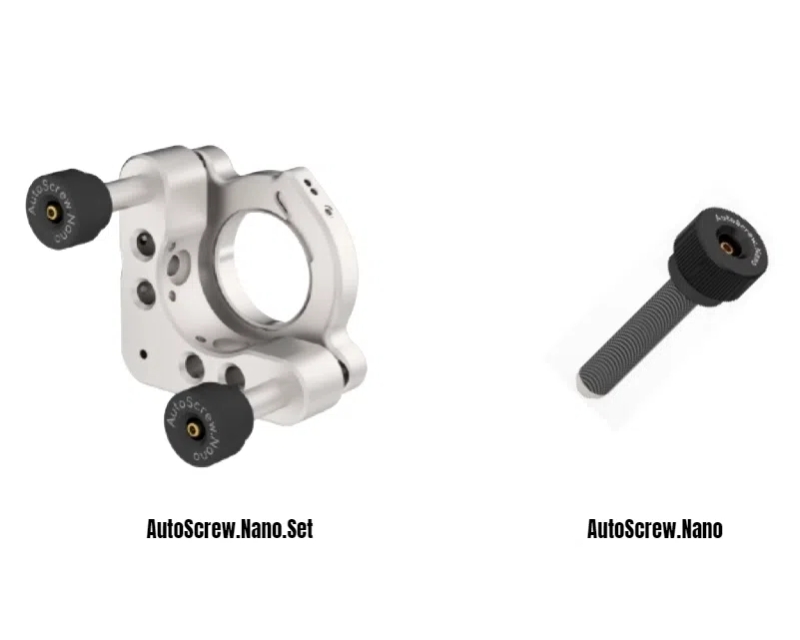

Nano AutoScrew fine actuator set for 1 inch optic mounts; 18 um fine piezo stroke; 1 nm resolution; 0.5 mrad tilt range for high-resolution mirror alignment.
Datasheet (PDF) ↗Specifications
| Cable & Connector | Standard, shield cable and SMB plug |
|---|---|
| Travel range | 18 um |
| Resolution(Open-loop) | 1 nm |
| Driving Voltage | 0-120 V |
| Capacitance of Piezo | 550 nF |
| Max. Output Force | 300 N |
| Mass | 9.5 g |
| Controller | MC-Archimedes.4 |
Applications
Motorising existing mounts
Replace a manual adjuster on a mount you already own, without redesigning the assembly.
Remote alignment
Adjust optics inside an enclosure, vacuum chamber or hazardous area without entering it.
Automated alignment routines
Let software walk a mirror or lens to peak signal instead of an operator turning a knob.
Specifying this part
What this model has to survive, and what it needs around it
Retrofitting motion to an existing mount
Piezo actuators that replace the manual adjusters on a kinematic mount, adding remote or automated alignment without rebuilding the optical assembly around a motorised stage.
Vacuum and non-magnetic versions
Most of the range is orderable as .HV (high vacuum), .UHV (ultra-high vacuum) or .NM (non-magnetic). The suffix changes materials, cabling and bake compatibility rather than the mechanics, so specify it against the chamber the stage will live in.
Full series comparison, controller pairing and mounting hardware on the ambient piezo stages overview, or work through the selection with the configurator.
