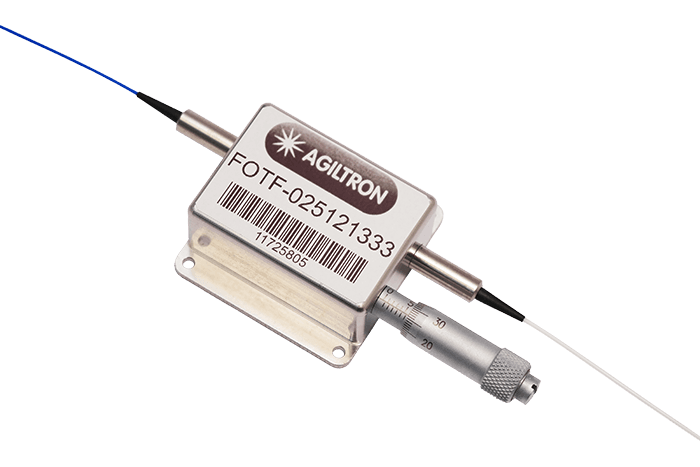

Manual Etalon Tunable Fiber Optical Filters – 1nm Linewidth, 100nm Tuning

Based on our proprietary thin film cavity filter technology, we offer Fiber Optic Tunable Filters with central wavelengths of 1060nm, 1310nm, 1550nm and 2000nm. They are tunable continuously over a wide spectral range up to 80nm. The wavelength tuning is made by manually rotating a precise micrometer. Our unique high reliability and low insertion loss design presents the most cost-effective solution for OEM applications from fiber optic networks to fiber sensing interrogation. These grating-based tunable filters block the off-bands.

Configure & add to enquiry Datasheet (PDF)Back to Optical Tunable Filters
Manual Etalon Tunable Fiber Optical Filters – 1nm Linewidth, 100nm Tuning

Configuration options

Build & quote

Configure the options below and add your exact build to the enquiry — we confirm the part number and availability.

We confirm the exact part number for your configuration on enquiry.

Wavelength: 2100± 60nm · Power: 0.3W · PER: Standard · Fiber Type: SMF-28 · Fiber Cover: Bare fiber · Fiber Length: 0.25m · Connector: None

Application context

Why this design is used

Application guidance is tied to the configured wavelength, fiber interface and optical-budget fields for this family.

Laboratory optical integration

Manual Etalon Tunable Fiber Optical Filters – 1nm Linewidth, 100nm Tuning: Laboratory optical integration depends on preserving the optical budget through the complete path. The 2100± 60nm, 2295± 55nm, 2195± 55nm, 2095± 55nm, 2050± 50nm, 2000± 50nm, 1960± 40nm, 1850± 50nm, 1800± 50nm, 1620± 40nm, 1550± 40nm, 1550± 50nm, 1480± 40nm, 1395± 55nm, 1310± 40nm, 1230± 50nm, 1145± 45nm, 1130± 40nm, 1060± 40nm, 1005± 45nm wavelength specification sets source and detector compatibility. The fiber/interface entry (SMF-28, HI1060, SM1950, PM980, PM1550, PM1310, PM1950) must match the connected components.

Fiber-optic instrumentation

Manual Etalon Tunable Fiber Optical Filters – 1nm Linewidth, 100nm Tuning: Fiber-optic instrumentation depends on preserving the optical budget through the complete path. The 2100± 60nm, 2295± 55nm, 2195± 55nm, 2095± 55nm, 2050± 50nm, 2000± 50nm, 1960± 40nm, 1850± 50nm, 1800± 50nm, 1620± 40nm, 1550± 40nm, 1550± 50nm, 1480± 40nm, 1395± 55nm, 1310± 40nm, 1230± 50nm, 1145± 45nm, 1130± 40nm, 1060± 40nm, 1005± 45nm wavelength specification sets source and detector compatibility. The fiber/interface entry (SMF-28, HI1060, SM1950, PM980, PM1550, PM1310, PM1950) must match the connected components.

Specifications

Manual Etalon Tunable Fiber Optical Filters – 1nm Linewidth, 100nm Tuning

Wavelength1005 ±45nm1060 ±40nm1130 ±40nm1145 ±45nm1230 ±50nm1310 ±40nm1395 ±55nm1480 ±40nm1550 ±50nm1620 ±40nm1800 ±50nm1850 ±50nm1960 ±40nm2000 ±50nm2050 ±50nm2100 ±60nm2195 ±55nm2295 ±55nm
Fiber TypeHI1060HI1060HI1060HI1060SMF-28SMF-28SMF-28SMF-28SMF-28SMF-28SMF-28SMF-28SM1950SM1950SM1950SM1950SM1950SM1950
Fiber Cover (mm)0.90.90.90.90.90.90.90.90.90.90.90.90.90.90.90.90.90.9
Fiber Length (m)0.50.50.50.50.50.50.50.50.50.50.50.50.50.50.50.50.50.5
ConnectorFC/APCFC/APCFC/APCFC/APCFC/APCFC/APCFC/APCFC/APCFC/APCFC/APCFC/APCFC/APCFC/APCFC/APCFC/APCFC/APCFC/APCFC/APC
Wavelength1005 ±45nm1060 ±40nm1130 ±40nm1145 ±45nm1230 ±50nm1310 ±40nm1395 ±55nm1480 ±40nm1550 ±50nm1620 ±40nm1800 ±50nm1850 ±50nm1960 ±40nm2000 ±50nm2050 ±50nm2100 ±60nm2195 ±55nm2295 ±55nm
Fiber TypePM980PM980PM980PM980PM1310PM1310PM1310PM1550PM1550PM1550PM1550PM1550PM1950PM1950PM1950PM1950PM1950PM1950
Polarization ER (dB)> 22> 22> 22> 22> 22> 22> 22> 22> 22> 22> 22> 22> 22> 22> 22> 22> 22> 22
Fiber Cover (mm)0.90.90.90.90.90.90.90.90.90.90.90.90.90.90.90.90.90.9
Fiber Length (m)0.50.50.50.50.50.50.50.50.50.50.50.50.50.50.50.50.50.5
ConnectorFC/APCFC/APCFC/APCFC/APCFC/APCFC/APCFC/APCFC/APCFC/APCFC/APCFC/APCFC/APCFC/APCFC/APCFC/APCFC/APCFC/APCFC/APC

Downloads

Datasheets & documents

System integration

Integration and compatibility

Use these checks to connect Manual Etalon Tunable Fiber Optical Filters – 1nm Linewidth, 100nm Tuning to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.

Optical interface and fiber
Fiber Type: SMF-28, HI1060, SM1950, PM980, PM1550, PM1310, PM1950 · Fiber Cover: Bare fiber, 900μm loose tube
Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.
Wavelength and loss budget
Wavelength: 2100± 60nm, 2295± 55nm, 2195± 55nm, 2095± 55nm, 2050± 50nm, 2000± 50nm, 1960± 40nm, 1850± 50nm, 1800± 50nm, 1620± 40nm, 1550± 40nm, 1550± 50nm, 1480± 40nm, 1395± 55nm, 1310± 40nm, 1230± 50nm, 1145± 45nm, 1130± 40nm, 1060± 40nm, 1005± 45nm · Wavelength: 1005 ±45nm / 1060 ±40nm / 1130 ±40nm / 1145 ±45nm / 1230 ±50nm / 1310 ±40nm / 1395 ±55nm / 1480 ±40nm / 1550 ±50nm / 1620 ±40nm / 1800 ±50nm / 1850 ±50nm / 1960 ±40nm / 2000 ±50nm / 2050 ±50nm / 2100 ±60nm / 2195 ±55nm / 2295 ±55nm
Check the Optical Tunable Filters passband, insertion loss, return loss and power handling at the actual source wavelength; a nominal telecom-band label is not a substitute for the configured range.

Technical FAQ

Integration questions for Manual Etalon Tunable Fiber Optical Filters – 1nm Linewidth, 100nm Tuning

Which fiber and connector does the Manual Etalon Tunable Fiber Optical Filters – 1nm Linewidth, 100nm Tuning use?

Fiber Type: SMF-28, HI1060, SM1950, PM980, PM1550, PM1310, PM1950 · Fiber Cover: Bare fiber, 900μm loose tube. Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.

How should the Manual Etalon Tunable Fiber Optical Filters – 1nm Linewidth, 100nm Tuning be included in an optical power budget?

Wavelength: 2100± 60nm, 2295± 55nm, 2195± 55nm, 2095± 55nm, 2050± 50nm, 2000± 50nm, 1960± 40nm, 1850± 50nm, 1800± 50nm, 1620± 40nm, 1550± 40nm, 1550± 50nm, 1480± 40nm, 1395± 55nm, 1310± 40nm, 1230± 50nm, 1145± 45nm, 1130± 40nm, 1060± 40nm, 1005± 45nm · Wavelength: 1005 ±45nm / 1060 ±40nm / 1130 ±40nm / 1145 ±45nm / 1230 ±50nm / 1310 ±40nm / 1395 ±55nm / 1480 ±40nm / 1550 ±50nm / 1620 ±40nm / 1800 ±50nm / 1850 ±50nm / 1960 ±40nm / 2000 ±50nm / 2050 ±50nm / 2100 ±60nm / 2195 ±55nm / 2295 ±55nm. Check the Optical Tunable Filters passband, insertion loss, return loss and power handling at the actual source wavelength; a nominal telecom-band label is not a substitute for the configured range.

Need this configured?

Share your wavelength, fiber type, connector, power handling and control requirements and we will qualify the matching configuration and part number.

Configure & add to enquiry

Model selection

Nearby series comparison

Compare Manual Etalon Tunable Fiber Optical Filters – 1nm Linewidth, 100nm Tuning with the closest available models in the Optical Tunable Filters family. Confirm option-dependent values on the final configuration before ordering.

Selection parameterManual Etalon Tunable Fiber Optical Filters – 1nm Linewidth, 100nm Tuning (current)ITU Channel Tunable Filter SWDM, CWDM, WDM (100GHz), DWDM (50GHz)Manual Grating Fiber Optic Tunable Filter – 0.08nm Bandwidth, 20nm Tuning
Wavelength range2100± 60nm, 2295± 55nm, 2195± 55nm, 2095± 55nm, 2050± 50nm, 2000± 50nm, 1960± 40nm, 1850± 50nm, 1800± 50nm, 1620± 40nm, 1550± 40nm, 1550± 50nm, 1480± 40nm, 1395± 55nm, 1310± 40nm, 1230± 50nm, 1145± 45nm, 1130± 40nm, 1060± 40nm, 1005± 45nmCWDM, WDM100GHz, DWDM50GHz1060nm, 1310nm, 1550nm
Optical performanceConfirm for this modelConfirm for this modelConfirm for this model
Fiber typeSMF-28, HI1060, SM1950, PM980, PM1550, PM1310, PM1950SMF-28SMF-28, PM1550, HI1060, PM980, PM1300
Connector / controlNone, FC/PC, FC/APC, SC/PC, SC/APC, ST/PC, LC/PC, SpecialNone, FC/PC, FC/APC, SC/PC, SC/APC, ST/PC, LC/PC, SpecialNone, FC/APC, Special
