Optical Tunable Filters

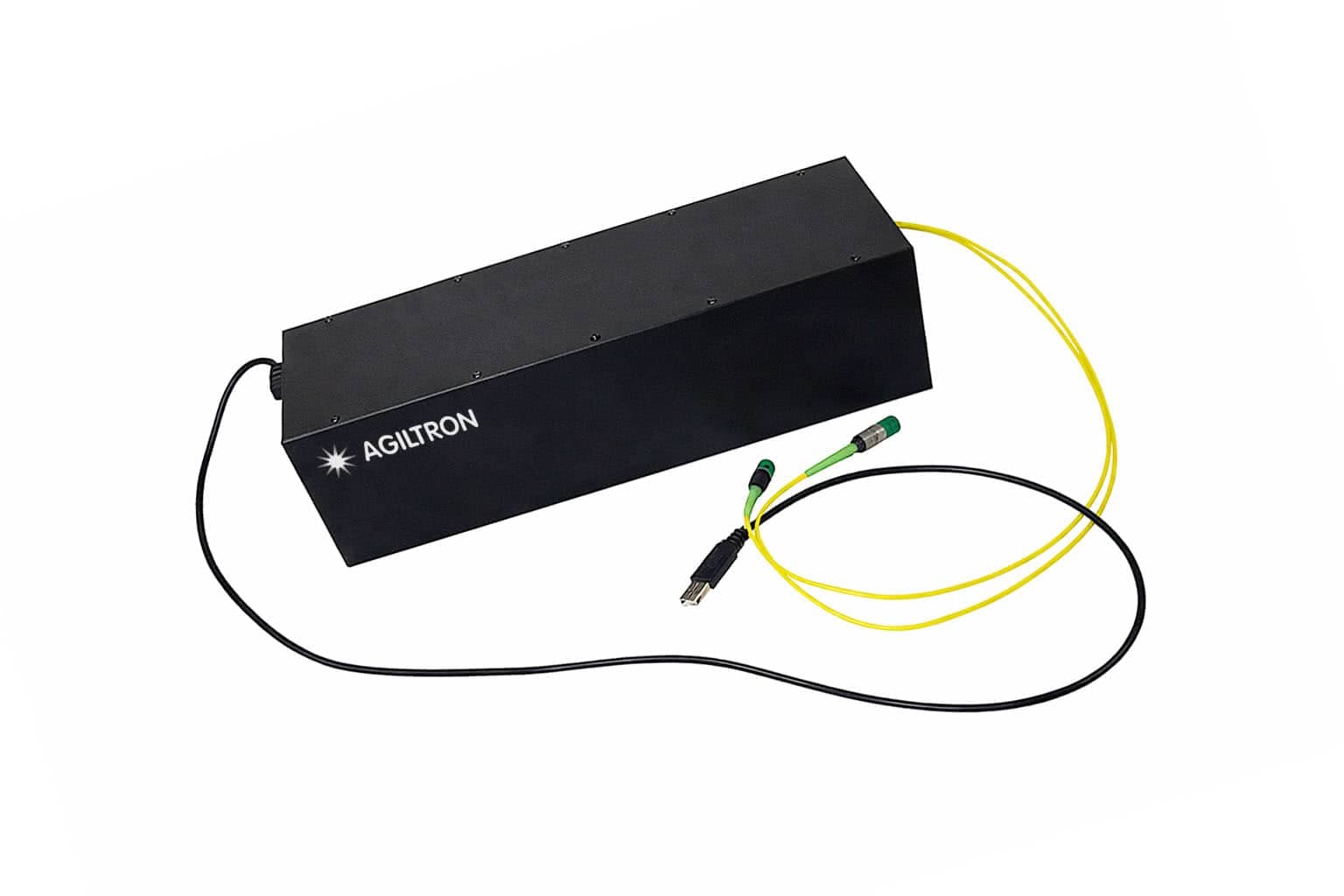

ITU Channel Tunable Filter SWDM, CWDM, WDM (100GHz), DWDM (50GHz)
Our ITU Channel Tunable Filter provides computer-selectable wavelength passband control over telecom ITU grid channels through a USB/RS232 interface with a user-friendly GUI. Configurations are available for up to 22 CWDM channels, 80 DWDM channels at 100 GHz spacing, and 96 DWDM channels at 50 GHz spacing. The design employs passive WDM components to ensure excellent channel accuracy, low distortion, and high-fidelity spectral profiles.
Configuration options
Build & quote
Configure the options below and add your exact build to the enquiry — we confirm the part number and availability.
We confirm the exact part number for your configuration on enquiry.
Wavelength Spacing: CWDM · Channel: 8 · Start ITU: Select from table · Fiber Type: SMF-28 · Fiber Cover: 900um loose tube · Fiber Length: 0.25m · Connector: None · API: Non
System integration
Integration and compatibility
Use these checks to connect ITU Channel Tunable Filter SWDM, CWDM, WDM (100GHz), DWDM (50GHz) to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
- Optical interface and fiber
- Fiber Type: SMF-28 · Fiber Cover: 900um loose tube, Special
- Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.
- Wavelength and loss budget
- Wavelength Spacing: CWDM, WDM100GHz, DWDM50GHz
- Check the Optical Tunable Filters passband, insertion loss, return loss and power handling at the actual source wavelength; a nominal telecom-band label is not a substitute for the configured range.
Technical FAQ
Integration questions for ITU Channel Tunable Filter SWDM, CWDM, WDM (100GHz), DWDM (50GHz)
Which fiber and connector does the ITU Channel Tunable Filter SWDM, CWDM, WDM (100GHz), DWDM (50GHz) use?
Fiber Type: SMF-28 · Fiber Cover: 900um loose tube, Special. Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.
How should the ITU Channel Tunable Filter SWDM, CWDM, WDM (100GHz), DWDM (50GHz) be included in an optical power budget?
Wavelength Spacing: CWDM, WDM100GHz, DWDM50GHz. Check the Optical Tunable Filters passband, insertion loss, return loss and power handling at the actual source wavelength; a nominal telecom-band label is not a substitute for the configured range.
Need this configured?
Share your wavelength, fiber type, connector, power handling and control requirements and we will qualify the matching configuration and part number.
Model selection
Nearby series comparison
Compare ITU Channel Tunable Filter SWDM, CWDM, WDM (100GHz), DWDM (50GHz) with the closest available models in the Optical Tunable Filters family.
| Selection parameter | ITU Channel Tunable Filter SWDM, CWDM, WDM (100GHz), DWDM (50GHz) (current) | Electrically Fiber Optic Grating Tunable Filter – 0.7nm Linewidth, 150nm Tuning | Manual Etalon Tunable Fiber Optical Filters – 1nm Linewidth, 100nm Tuning |
|---|---|---|---|
| Wavelength range | CWDM, WDM100GHz, DWDM50GHz | 530nm, 630nm, 780nm, 850nm, 950nm, 1050nm, 1200nm, 1300nm, 1550nm, 1600nm, 1700nm, 2000nm | 2100± 60nm, 2295± 55nm, 2195± 55nm, 2095± 55nm, 2050± 50nm, 2000± 50nm, 1960± 40nm, 1850± 50nm, 1800± 50nm, 1620± 40nm, 1550± 40nm, 1550± 50nm, 1480± 40nm, 1395± 55nm, 1310± 40nm, 1230± 50nm, 1145± 45nm, 1130± 40nm, 1060± 40nm, 1005± 45nm |
| Fiber type | SMF-28 | SMF-28, SM450, PM460, SM600, PM630, Hi780, PM780, SM800, PM850, PM980, Hi1060, PM1550, SM1950, PM1950, Special | SMF-28, HI1060, SM1950, PM980, PM1550, PM1310, PM1950 |
| Connector / control | None, FC/PC, FC/APC, SC/PC, SC/APC, ST/PC, LC/PC, Special | None, FC/APC, HFPC, HFAPC, Special | None, FC/PC, FC/APC, SC/PC, SC/APC, ST/PC, LC/PC, Special |
