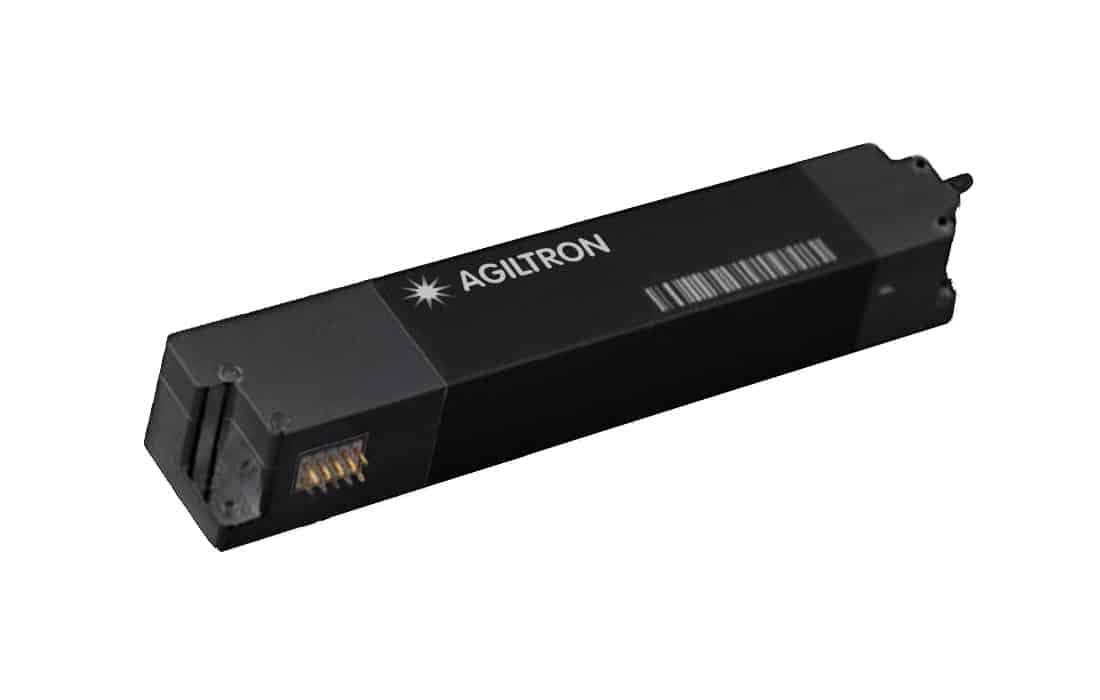

Thermally Tunable FBG Filter – 0.07nm Linewidth, 2nm Tuning
The TTFG series tunable optical filter integrates a fiber Bragg grating (FBG) with a thermally controlled tuning platform to provide narrow-linewidth filtering with wide center-wavelength adjustability. Two configurations are available: a two-port reflection version that functions as a tunable notch filter, and a three-port transmission-reflection version with an integrated circulator that operates as a tunable bandpass filter. Standard FBG linewidths are offered from 0.07 nm to 2 nm, with narrower custom designs available. Our circulators cover 350–2200 nm, enabling broad system compatibility for three-port TTFG solutions. The module includes an integrated driver with USB GUI control for plug-and-play operation, along with a DC power supply.
Configuration options
Build & quote
Configure the options below and add your exact build to the enquiry — we confirm the part number and availability.
Part number: TTFG-155051201311N
Wavelength: 1550.5nm · Linewidth: 0.07nm · Port: 2 · Fiber Type: SMF-28 · Fiber Cover: 900um tube · Fiber Length: 0.25m · Connector: None · API: Non
System integration
Integration and compatibility
Use these checks to connect Thermally Tunable FBG Filter – 0.07nm Linewidth, 2nm Tuning to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
- Optical interface and fiber
- Fiber Type: SMF-28, PM1550, PM1310, SM980 · Fiber Cover: 900um tube
- Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.
- Wavelength and loss budget
- Wavelength: 1550.5nm, 950.8nm, 1061.5nm
- Check the Optical Tunable Filters passband, insertion loss, return loss and power handling at the actual source wavelength; a nominal telecom-band label is not a substitute for the configured range.
Technical FAQ
Integration questions for Thermally Tunable FBG Filter – 0.07nm Linewidth, 2nm Tuning
Which fiber and connector does the Thermally Tunable FBG Filter – 0.07nm Linewidth, 2nm Tuning use?
Fiber Type: SMF-28, PM1550, PM1310, SM980 · Fiber Cover: 900um tube. Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.
How should the Thermally Tunable FBG Filter – 0.07nm Linewidth, 2nm Tuning be included in an optical power budget?
Wavelength: 1550.5nm, 950.8nm, 1061.5nm. Check the Optical Tunable Filters passband, insertion loss, return loss and power handling at the actual source wavelength; a nominal telecom-band label is not a substitute for the configured range.
Need this configured?
Share your wavelength, fiber type, connector, power handling and control requirements and we will qualify the matching configuration and part number.
Model selection
Nearby series comparison
Compare Thermally Tunable FBG Filter – 0.07nm Linewidth, 2nm Tuning with the closest available models in the Optical Tunable Filters family.
| Selection parameter | Thermally Tunable FBG Filter – 0.07nm Linewidth, 2nm Tuning (current) | Mini Manual Etalon-Based Narrowly Tunable Fiber Optic Filters | MEMS Fiber Optic Tunable Filter – 0.8nm Linewidth, 80nm Tuning |
|---|---|---|---|
| Wavelength range | 1550.5nm, 950.8nm, 1061.5nm | 2000nm, 1310nm, 1550nm, 1060nm, 850nm, 750nm, Special | 1528~1610nm, 1560~1640nm, 1960 ± 40nm, 1620 ± 40nm, 1480 ± 40nm, 1395 ± 55nm, 1310 ± 40nm, 1230 ± 50nm, 1145 ± 45nm, 1130 ± 40nm, 1060 ± 40nm, Special |
| Fiber type | SMF-28, PM1550, PM1310, SM980 | SMF-28, HI1060, PM980, PM1550, Special | SMF-28, HI1060, PM980, PM1550, SM1950, PM1950, Special |
| Connector / control | None, FC/APC | None, FC/PC, FC/APC, SC/PC, SC/APC, ST/PC | None, FC/PC, FC/APC, SC/PC, SC/APC, ST/PC, LC/PC, LC/UPC, Special |
